87
13 OTHER FUNCTIONS

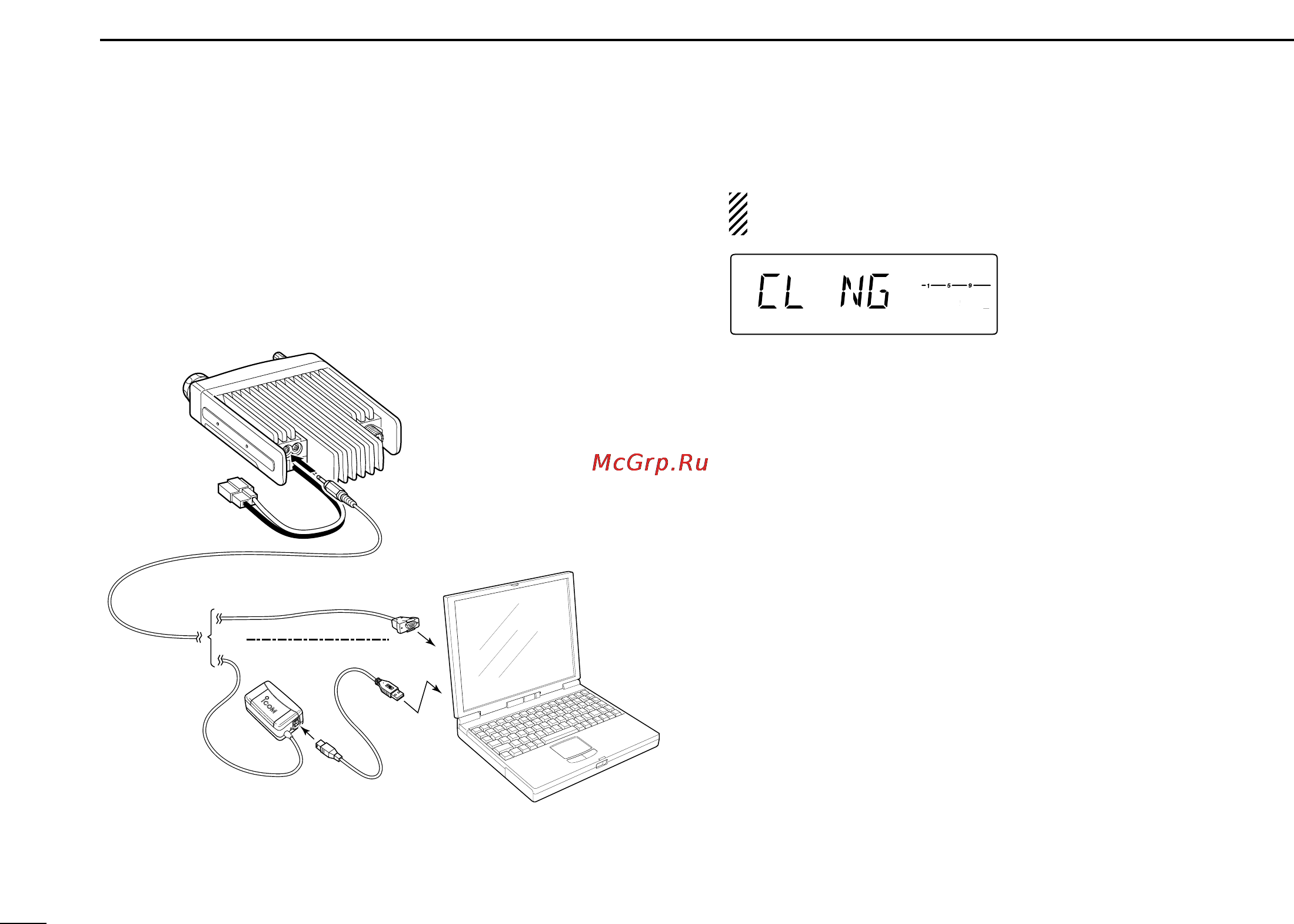

D Cloning using a personal computer
Data can be cloned to and from a personal computer (Mi-
crosoft
®
Windows
®
98/98SE/2000/Me/XP) using the optional
CS-2200H
CLONING SOFTWARE
and the optional OPC-478
(RS-232C type) or OPC-478U (USB type)
CLONING CABLE
.
Consult the CS-2200H
CLONING SOFTWARE
HELP file for de-
tails.
D Cloning error
NOTE: DO NOT push any key on the sub-transceiver dur-
ing cloning. This will cause a cloning error.
When the display at left ap-
pears, a cloning error has oc-
curred.
In such a case, both trans-
ceivers automatically return to
the clone standby condition
and cloning must be repeated.
LOCK
S
E
T
ANM
MONI
DUP
LOW
T
-
SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL
PRIO
AO
BUSY
MUTE
NAR
MID
LOW
Personal computer
to USB port
to RS-232C port
OPC-478
OPC-478U
or
Microsoft and Windows are registered trademarks of Microsoft Corporation in
the U.S.A. and other countries.
