73
12 DIGITAL MODE OPERATION
DD
GPS Automatic transmission
q While connecting a GPS receiver, push [BANK ] for
1 sec. to enter the option set mode.
w Push [BANK ] or [V/MHz] several times to select the
GPS automatic transmission.

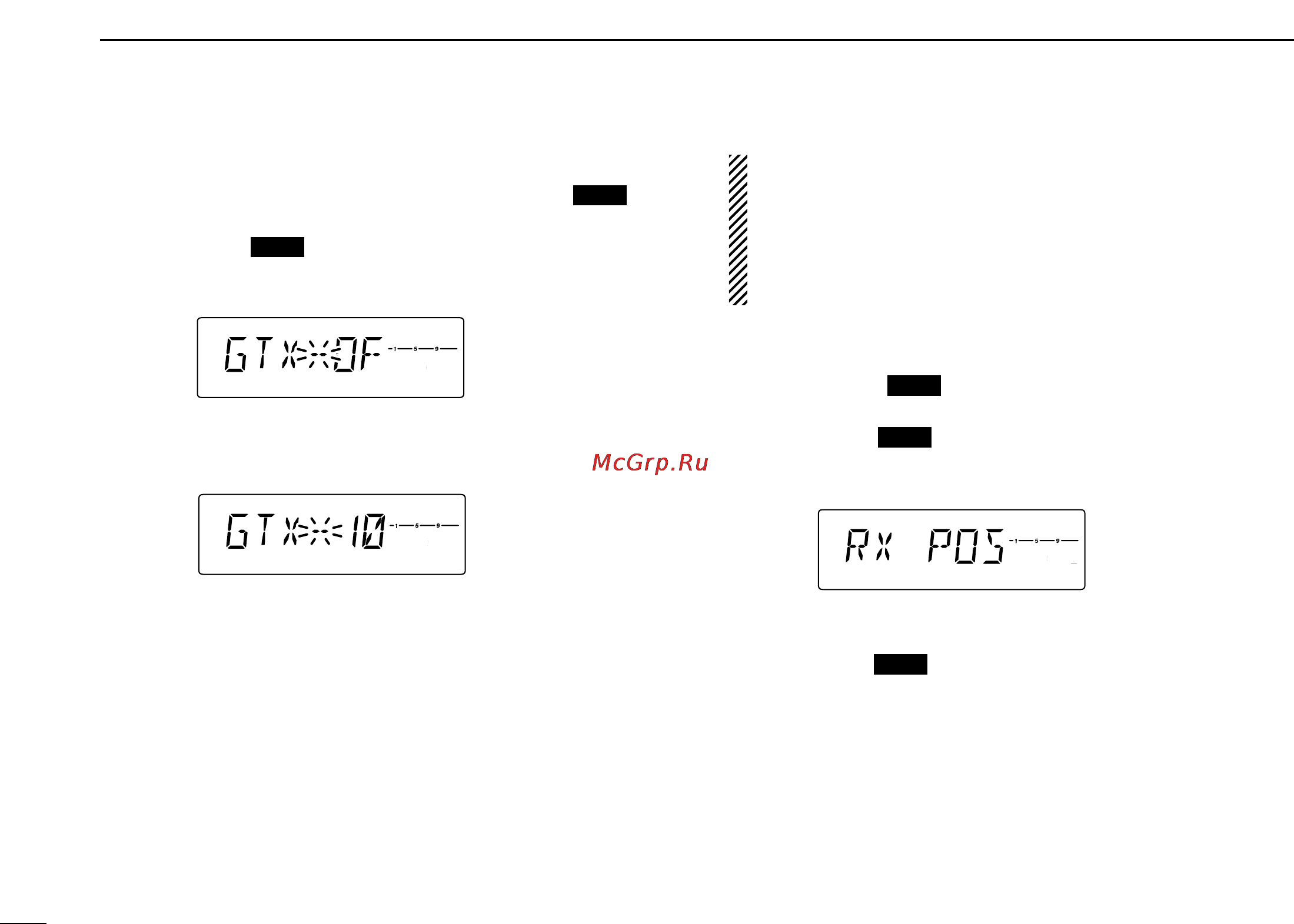

• “GTX” appears.
e Rotate [DIAL] to set the interval time for the GPS auto-
matic transmission.
• Interval time is selectable from 0.5 (30 sec.), 1, 3, 5, 10, 30 min.
rPush [SET] or [MONI] several times to edit transmit mes-
sage, if desired. (see page 71)
• When TX message channel
“C1” is
programmed, GPS transmis-
sion automatically transmits TX message “C1.”
tPush any key other than indicated function keys to exit op-
tion set mode.
IMPORTANT: GPS Automatic transmission transmits at
every setting interval even while receiving an another sta-
tions communication. To prevent interfere the another sta-
tions, set the GPS transmission together with the Repeater
lockout item “RLO” (set to “BU” busy lockout) in initial set
mode. (p. 84)
DD
Receiving a GPS transmission
q Push [BANK ] for 1 sec. to enter the option set
mode.
w Push [BANK ] or [V/MHz] several times to select the
received position.
• “RX POS” appears.
ePush [MONI] (or [MONI]) to enter the position indication.
• Latitude data and longitude date appear alternately.
rPush [BANK ] twice to select the received GPS mes-
sage.
tPush [MONI] (or [SET]) to enter the message.
• Received message is indicated, push [MONI] or [SET] to move
the cursor to left or right, respectively.
yAfter checking a received position and message, push any
key other than indicated function keys to return to normal
operating mode.
