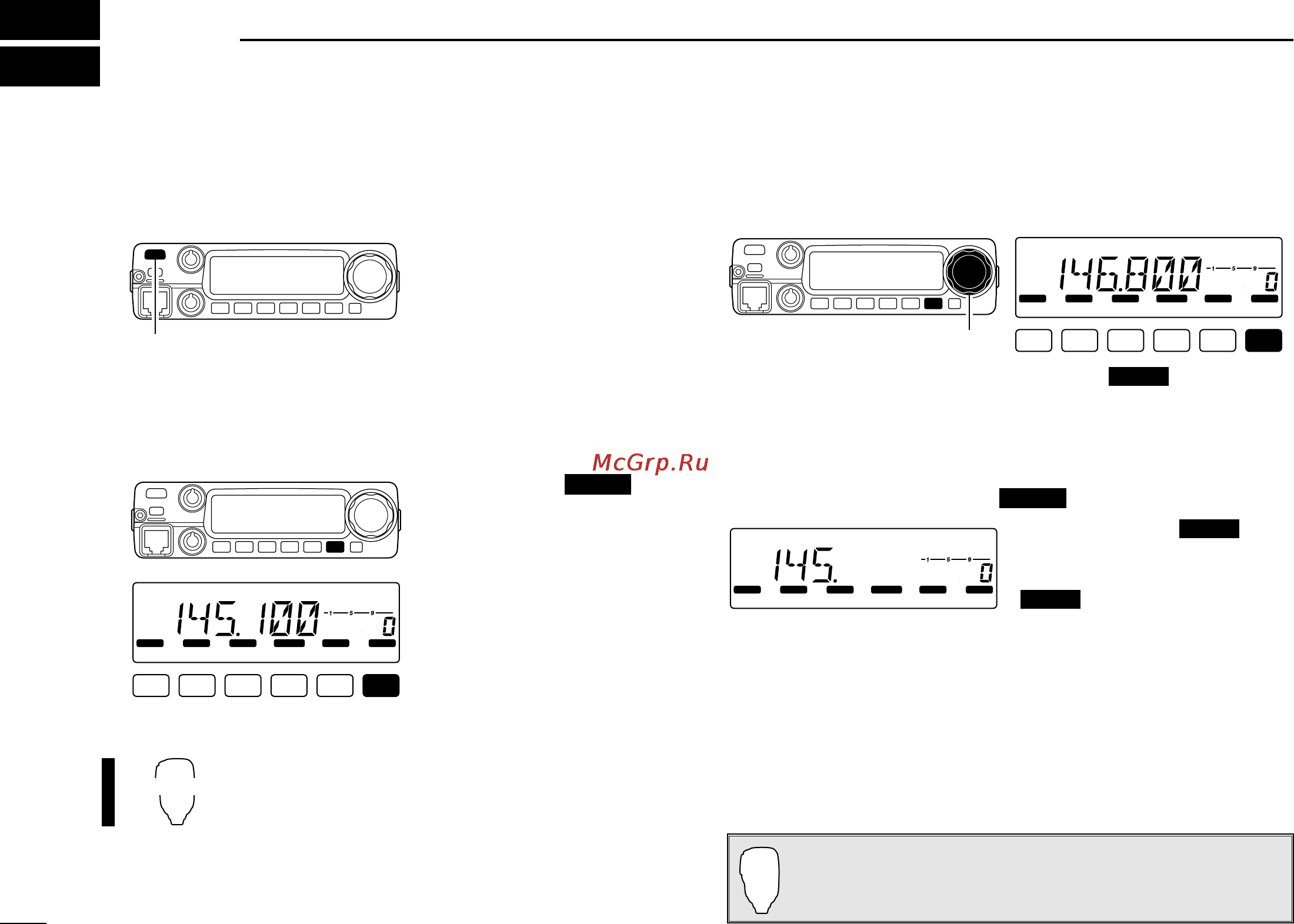

SETTING A FREQUENCY
2
■ Preparation
D Turning power ON/OFF
➥ Push [PWR] for 1 sec. to
turn power ON and OFF.
D VFO mode selection
The transceiver has 2 basic operating modes: VFO mode and
memory mode.
➥ Push [V/MHz ] to
select VFO mode.
➥ Push [VFO/LOCK] to select VFO mode.
■ Using the tuning dial
qRotate [DIAL] to set the frequency.
• If VFO mode is not selected, push [V/MHz ] to select VFO
mode.
• The frequency changes according to the selected tuning steps.
(p. 11)
wTo change the frequency in 1 MHz (10 MHz for some ver-
sions) steps, push [V/MHz ], then rotate [DIAL].
• Pushing [V/MHz ] for
1 sec. starts scan function.
If scan starts, push [V/MHz
] again to cancel it.
SCAN
SCAN
LOCK
S
E
T
ANM
MONI
DUP
LOW
T
-
SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL
PRIO
AO
BUSY
MUTE
NAR
MID
LOW
The display shows that the
1 MHz tuning step is selected.
SCAN
SCAN
LOCK
S
E
T
ANM
MONI
DUP
LOW
T
-
SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL
PRIO
AO
BUSY
MUTE
NAR
MID
LOW
[DIAL]
VFO/LOCK
SCAN
LOCK
S
E
T
ANM
MONI
DUP
LOW
T
-
SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL
PRIO
AO
BUSY
MUTE
NAR
MID
LOW
Push [PWR] for 1 sec.
Note that in this manual, sections beginning with a micro-
phone icon (as above), designate operation via the HM-
133V microphone.
