65
12 DIGITAL MODE OPERATION
■ Break-in communication
The break-in function allows you to break into an another sta-
tions communications in both Digital voice and slow data op-
eration.
q While receiving an another stations communication, push
[BANK ] for 1 sec. to enter the option set mode, then
set the either station/repeater call sign into “MYC,” “YUC,”
“R1C” and “R2C.”

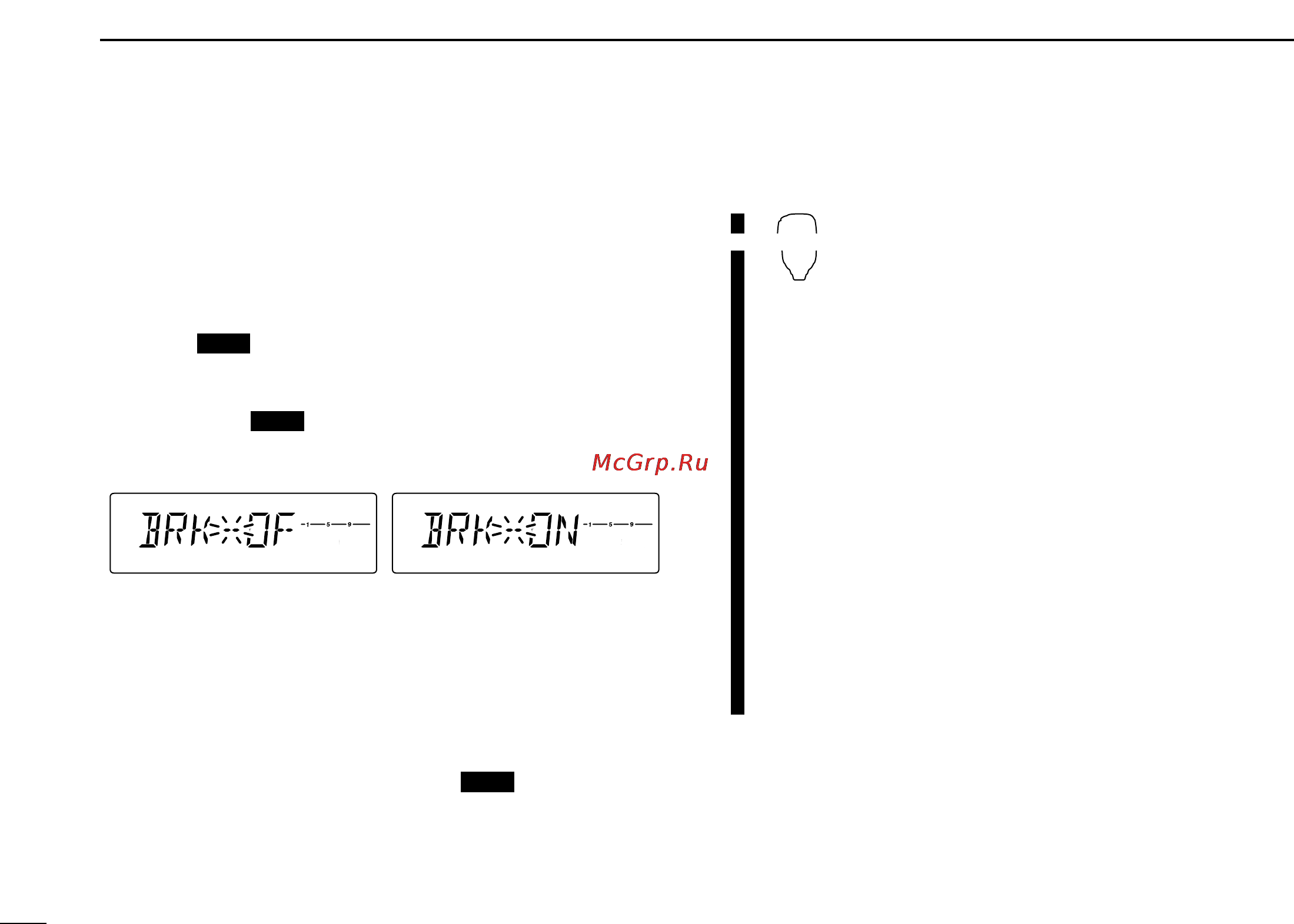

w Push [BANK ] or [V/MHz] several times to select the
break-in setting, then turns the break-in setting ON.
• “BRK” appears.
eWhen both stations are in standby, transmit to send a
break-in call.
• Programmed call sign station receives the break-in call as well
as your call sign.
rWait for the reply call from the station who receive the
break-in call.
tAfter receive the reply call, communicate normal way.
yTo cancel the break-in, push [BANK ] for 1 sec., then
rotate [DIAL] to turn OFF.
z While receiving an another stations com-
munication, push [BANK/OPTION] for
1 sec. to enter the option set mode, then
set the either station/repeater call sign into
“MYC,” “YUC,” “R1C” and “R2C.”
x Push [BANK/OPTION] or [MR/CALL] sev-
eral times to select the break-in setting,
then turns the break-in setting ON.
• “BRK” appears.
c When both stations are in standby, trans-
mit to send a break-in call.
• Programmed call sign station receives the
break-in call as well as your call sign.
v Wait for the reply call from the station who
receive the break-in call.
b After receive the reply call, communicate
normal way.
n To cancel the break-in, push [BANK/OP-
TION] for 1 sec., then push [
YY
] or [
ZZ
] to
turn OFF.
BANK/OPTION
OPT
LOCK
S
E
T
ANM
MONI
DUP
LOW
T
-
SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL
PRIO
AO
BUSY
MUTE
NAR
MID
LOW
LOCK
S
E
T
ANM
MONI
DUP
LOW
T
-
SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL
PRIO
AO
BUSY
MUTE
NAR
MID
LOW
OPT
OPT
