44
8
PRIORITY WATCH
8
■ Priority watch operation
q Select VFO mode; then, set an operating frequency.
w Set the watching channel(s).
For memory channel watch:
Select the desired memory channel.
For memory scan watch:
Select memory mode; then, push [V/MHz ] for
1 sec. to start memory scan.
For call channel watch:
Select the call channel by pushing [M/CALL ] once
or twice.
e Push [M/CALL ] for 1 sec. to start the watch.
• The transceiver checks the memory or call channel every 5 sec.
• The watch resumes according to the selected scan resume con-
dition. (p. 42)
• While the watch is pausing, pushing [M/CALL ] resumes
the watch manually.
r Push [M/CALL ] to stop the watch.
z Select VFO mode; then, set an operating fre-
quency.
x Set the watching channel(s).
For memory channel watch:
Push [MR/CALL] then [
YY
] or [
ZZ
] to select the
desired memory channel.
For memory scan watch:
Push [MR/CALL], then push [
SCAN
2] to start the
memory scan.
For call channel watch:
Push [MR/CALL] for 1 sec. to select the call
channel.
c Push [
PRIO
3(PTT-M)] to start the watch.
• The transceiver checks the memory or call channel
every 5 sec.
• The watch resumes according to the selected scan re-
sume condition. (p. 42)
• To resume the watch manually when paused, push
[
PRIO
3(PTT-M)] or [
CLR
A(MW)].
v To stop the watch, push [
CLR
A(MW)].
PRIO
3
LOCK
S
E
T
ANM
MONI
DUP
LOW
T
-
SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL
PRIO
AO
BUSY
MUTE
NAR
MID
LOW

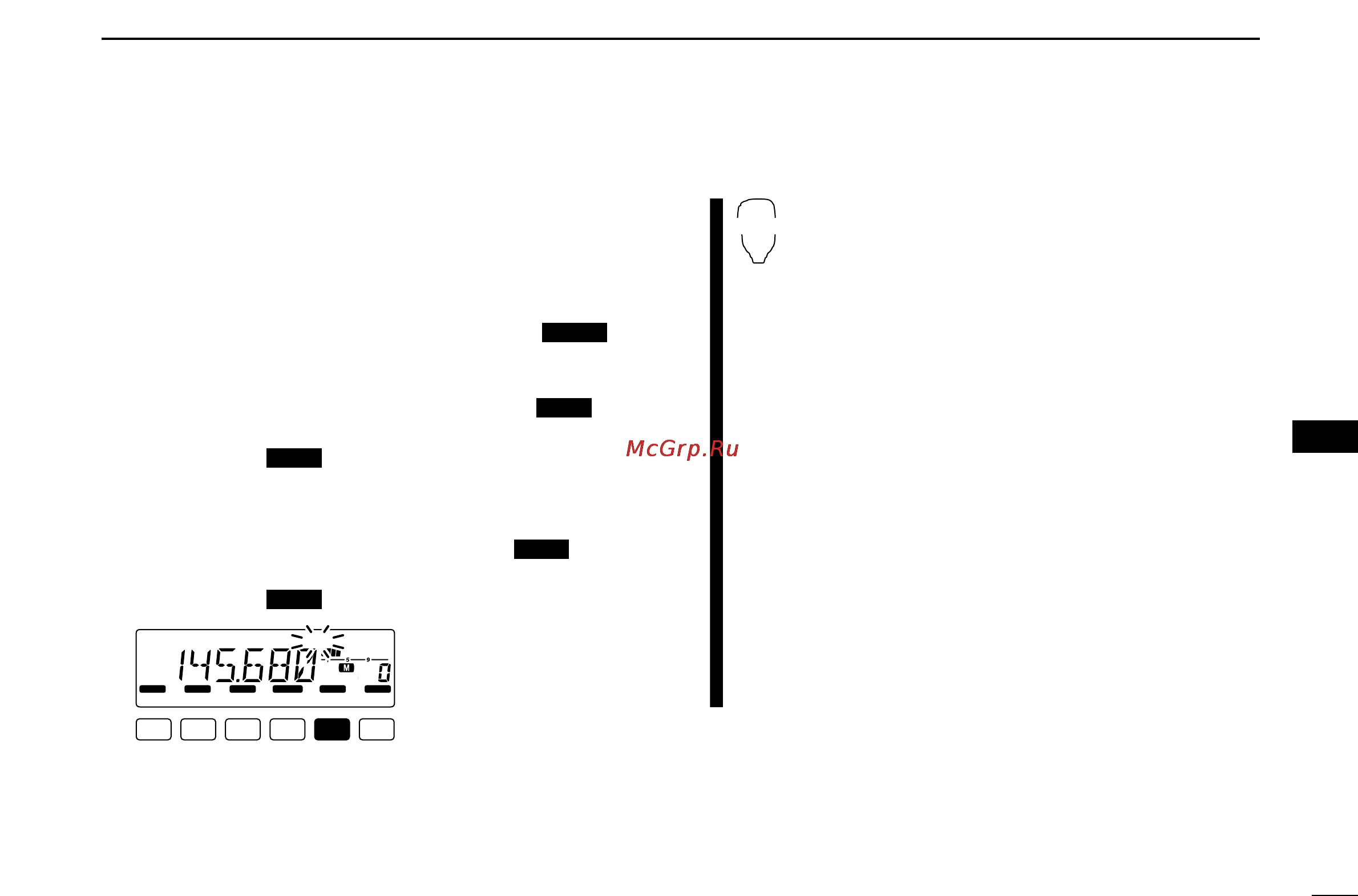

While pausing or receiving
a signal on the memory or
call channel, “PRIO” blinks.
PRIO
PRIO
PRIO
PRIO
SCAN
