90
15
MAINTENANCE
15
PROBLEM POSSIBLE CAUSE SOLUTION REF.
Some memory channels
cannot be selected via the
microphone keypad.
Scan does not operate.
Transmission is automati-
cally cut off.
Transmission continues
even when the PTT is re-
leased.
The function display shows
erroneous information.
• The input channel number has not yet been pro-
grammed.
• The squelch is open.
• Only 1 memory channel is programmed or other
channels are set as skip channels.
• Priority watch is activated.
• Time-out timer is activated.
• One-touch PTT function is activated.
• The CPU is malfunctioning.
• Rotate [DIAL] to check whether the channel has
been programmed or not.
• Set the squelch to the threshold point.
• Program other memory channels or cancel the
memory skip function in the desired channels.
• Cancel the watch.
• Set the timer to OFF.
• Turn the function OFF.
• Reset the CPU.
—
p. 13
pgs. 25,
26, 41
p. 44
p. 80
p. 16
p. 85

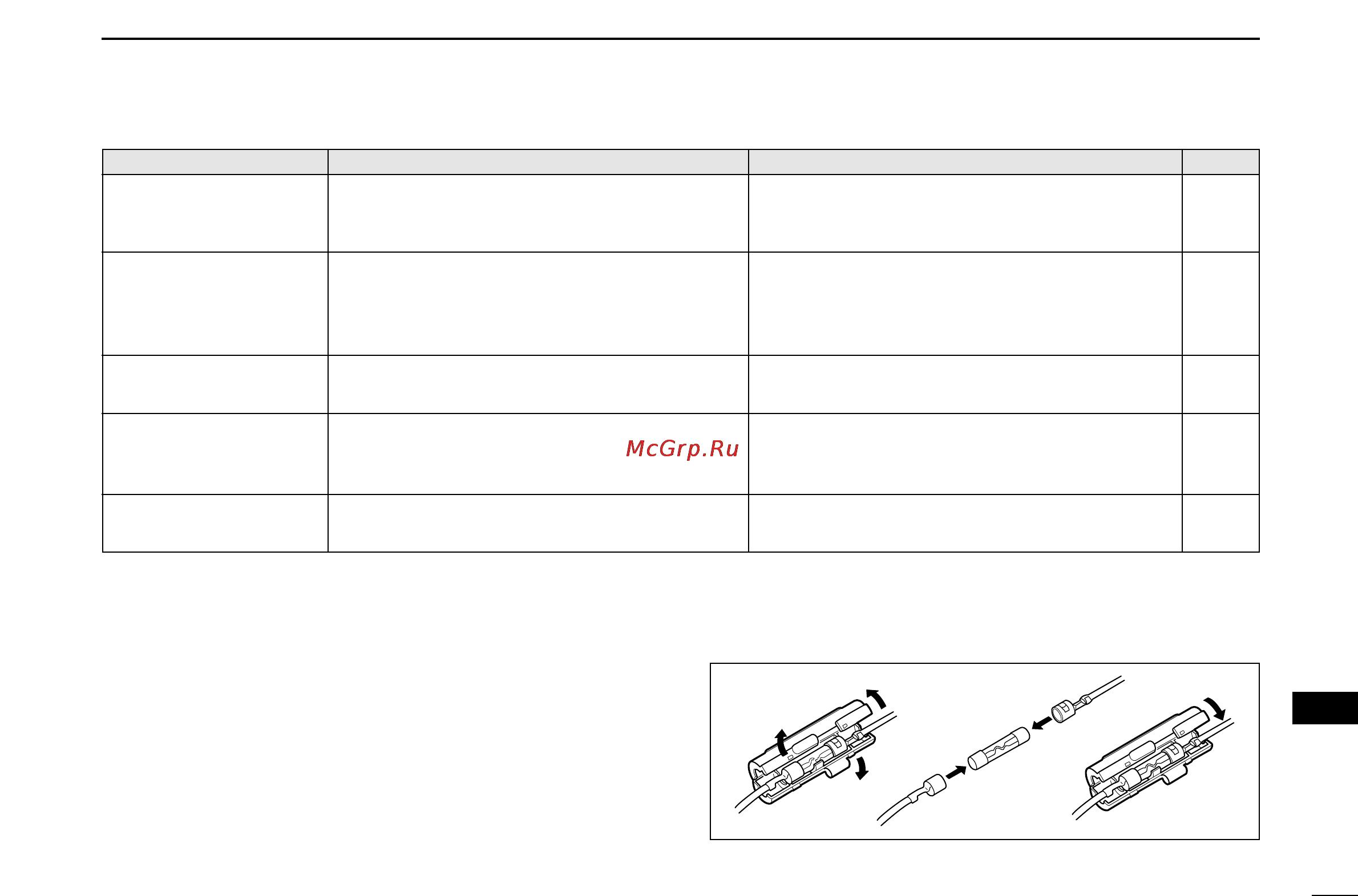

■ Fuse replacement
If the fuse blows or the transceiver stops functioning, find the
source of the problem if possible, and replace the damaged
fuse with a new, rated one (FGB 20 A) as shown at right.
20 A
fuse
