The IC-2200H has a total of 207 memory channels (including
6 scan edges and 1 call channel) for storing often used oper-
ating frequency, repeater settings, etc.
1. Setting a frequency
In VFO mode, set the desired operating frequency with re-
peater, tone and tuning steps, etc.
2. Selecting a memory channel
Momentarily push [S.MW ], then rotate [DIAL] to select
the desired memory channel.
•“M” indicator and memory channel number blink.
3. Writing a memory channel
Push and hold [S.MW ] for 1 sec. to program.
• 3 beeps sound
• Memory channel number automatically increases when continuing
to push [S.MW ] after programming.

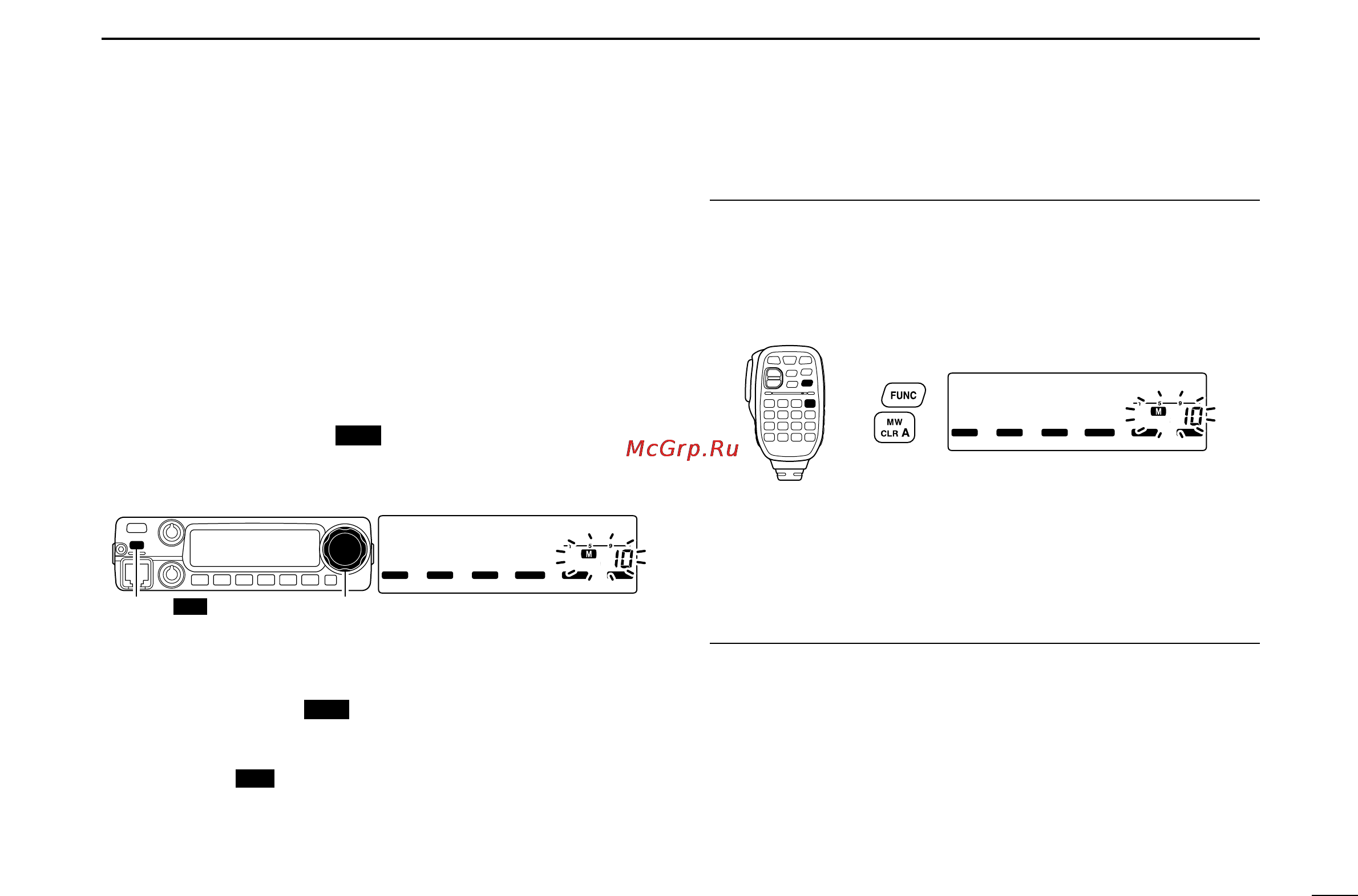

Using the HM-133V
q In VFO mode, set the desired operating frequency, includ-
ing offset direction, tone settings, etc.
w Push [FUNC] then [
CLR
A(MW)].
•“M” indicator and memory channel number blink.
e Push [
YY
]/[
ZZ
] to select the desired memory channel.
r Push [FUNC] then push [
CLR
A(MW)] for 1 sec. to pro-
gram.
• 3 beeps sound
• Memory channel number automatically increases when continu-
ing to push [
CLR
A(MW)] after programming.
