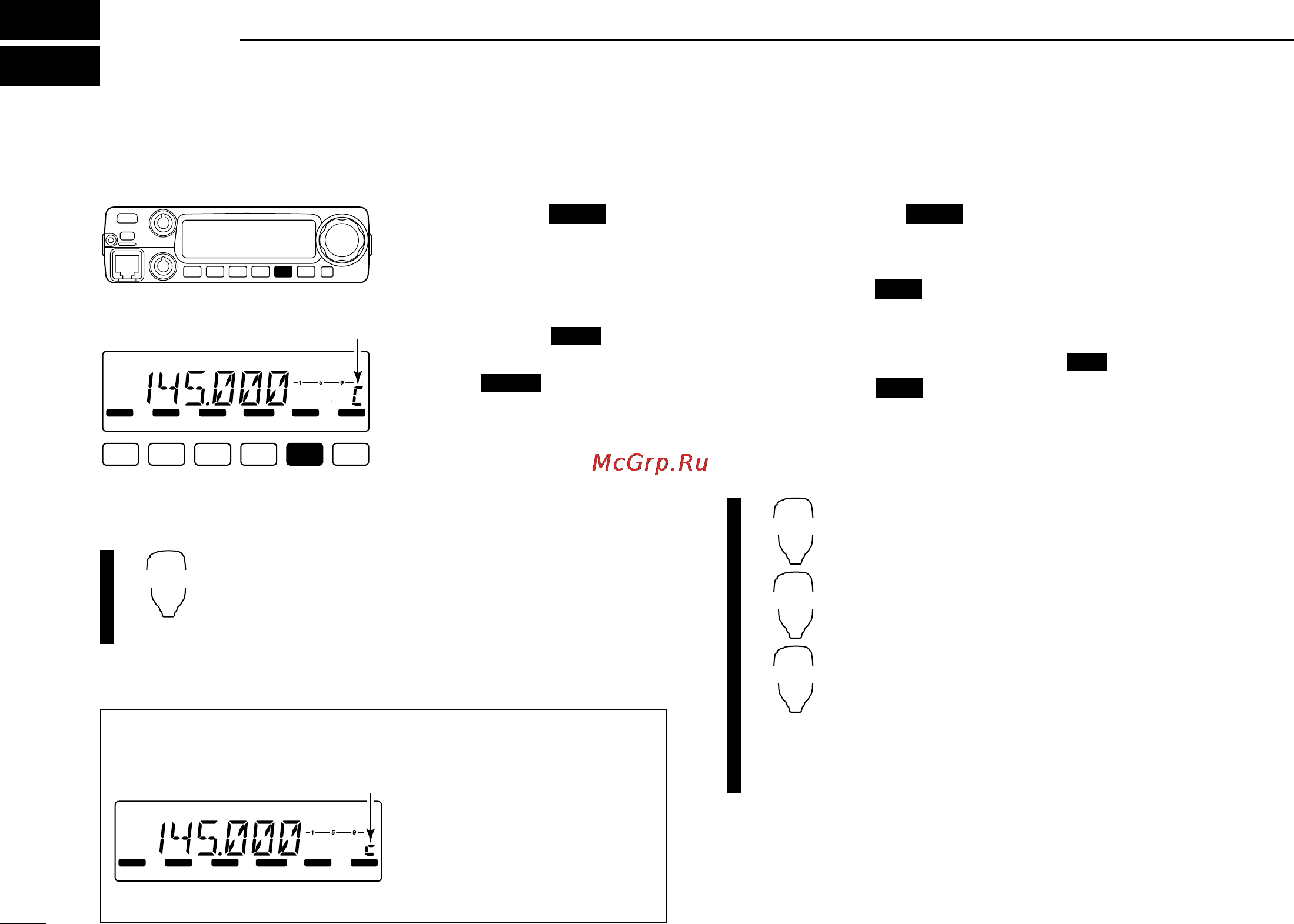

CALL CHANNEL OPERATION
6
■ Call channel selection
➥ Push [M/CALL ] once
or twice to select the call
channel.
• “C” appears instead of mem-
ory channel number indication.
• Push [M/CALL ] to re-
turn to memory mode, or push
[V/MHz ] to select VFO
mode.
➥ Push [MR/CALL] for 1 sec. to select the call
channel.
• Push [MR/CALL] to select memory mode, or push
[VFO/LOCK] to select VFO mode.
■ Call channel transferring
q Push [M/CALL ] several times to select the call
channel.
• “C” appears.
w Push [S.MW ] momentarily, then rotate [DIAL] to se-
lect the memory channel to transfer the contents to.
•“M” indicator and memory channel number blink.
• To transfer to the VFO, push [S.MW ] for 1 sec.
e Push [S.MW ] for 1 sec. to transfer when a momen-
tary push was used in the previous step.
• If channel names have been programmed into the call channel,
the names are also transferred.
z Push [MR/CALL] for 1 sec. to select the call
channel.
x Push [FUNC], [
CLR
A(MW)] momentarily,
then push [
YY
]/[
ZZ
] to select the memory
channel to transfer the contents to.
• To transfer to the VFO, push [FUNC], then push
[
CLR
A(MW)] for 1 sec.
c Push [FUNC], then [
CLR
A(MW)] for 1 sec. to
transfer when a momentary push was used in
the previous step.
• If channel names have been programmed into the
call channel, the names are also transferred.
MR/CALL
MW
[Y]/[Z]
MW
MW
MW
PRIO
MR/CALL
SCAN
PRIO
PRIO
LOCK
S
E
T
ANM
MONI
DUP
LOW
T
-
SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL
PRIO
AO
BUSY
MUTE
NAR
MID
LOW
Appears
✔INFORMATION
When the VFO mode is se-
lected from the call channel,
a small “c” appears instead
of memory channel number.
LOCK
S
E
T
ANM
MONI
DUP
LOW
T
-
SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL
PRIO
AO
BUSY
MUTE
NAR
MID
LOW
Small “c” shows VFO was
selected from the call channel.
