42
7
SCAN OPERATION
7
■ Scan resume condition
The scan resume condition can be selected as timer or pause
scan. The selected resume condition is also used for priority
watch. (p. 44)
q Push [SET ] to enter set mode.
w Push [SET] or [MONI] several times until “SCT” or “SCP”
appears as shown above.
• When “d” is displayed in place of the 100 MHz digit, cancel the
DTMF memory encoder in advance. (p. 46)
e Rotate [DIAL] to set the desired timer:
• “SCT-15” : Scan pauses 15 sec. while receiving a signal.
• “SCT-10” : Scan pauses 10 sec. while receiving a signal.
• “SCT-5” : Scan pauses 5 sec. while receiving a signal.
• “SCP-2” : Scan pauses until the signal disappears and then
resumes 2 sec. later.
r Push any keys than [SET] or [MONI] to exit set mode.
z Push [
SET
B(D-OFF)] to enter set mode.
x Push [
SET
B(D-OFF)] or [
ENT
C(T-OFF)] several
times until “SCT” or “SCP” appears as shown at
left.
c Push [
YY
] or [
ZZ
] to select the scan resume condi-
tion.
• See item e at left for scan resume condition details.
v Push [
CLR
A(MW)] to exit set mode.
NOTE:
Set mode cannot be accessed when memory names are
displayed. To set the scan resume condition, return to fre-
quency indication by pushing [MONI ] on the front
panel for 1 sec., or push [FUNC] then [
MONI
1(ANM)] (HM-
133V) to cancel the channel name indication, then set as
described on this page.
ANM
SET
B
USING
SET MODE
LOCK
LOCK
S
E
T
ANM
MONI
DUP
LOW
T
-
SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL
PRIO
AO
BUSY
MUTE
NAR
MID
LOW

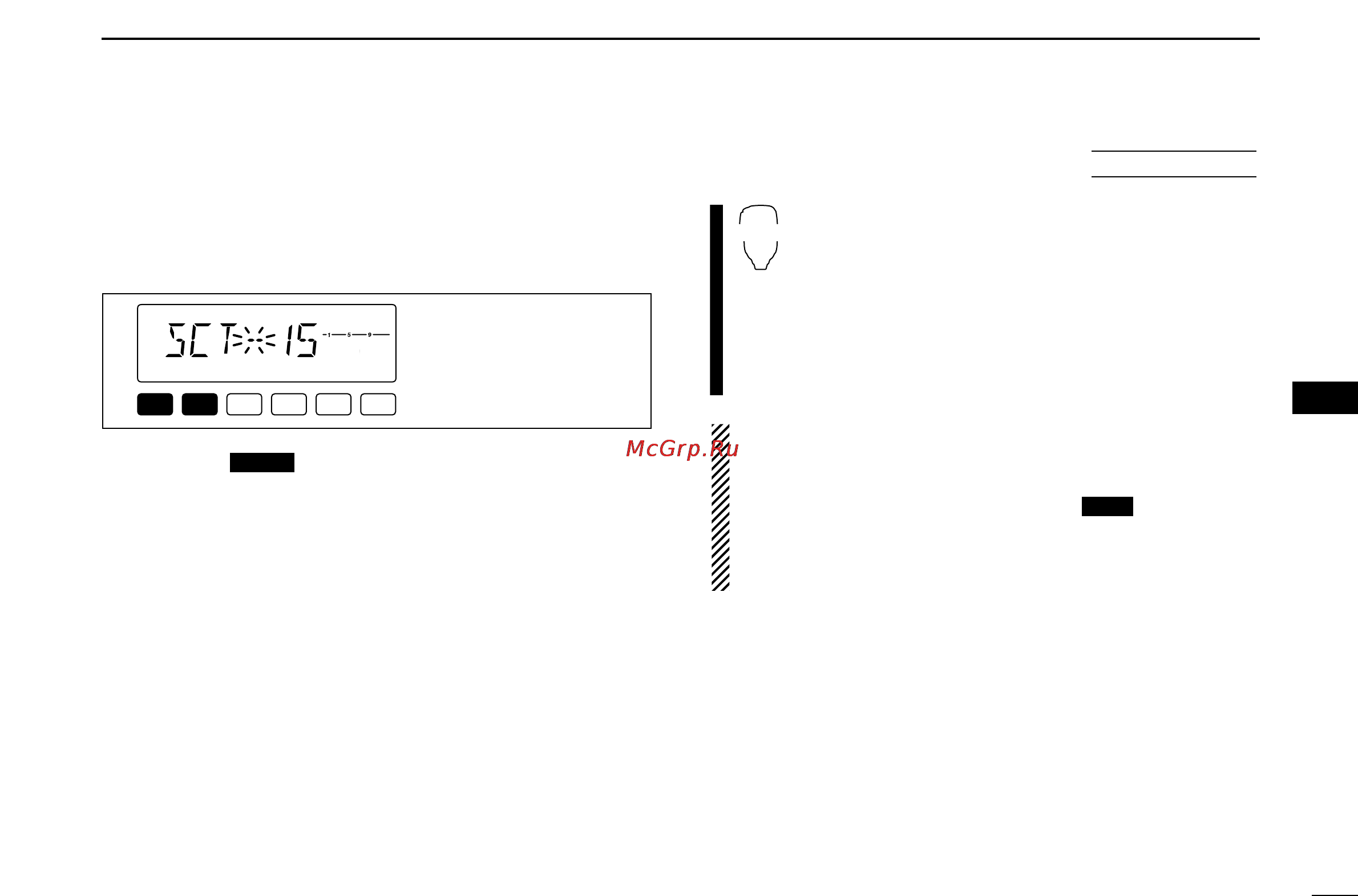

The display shows that
the scan will resume
15 sec. after it stops.
