3
1 PANEL DESCRIPTION

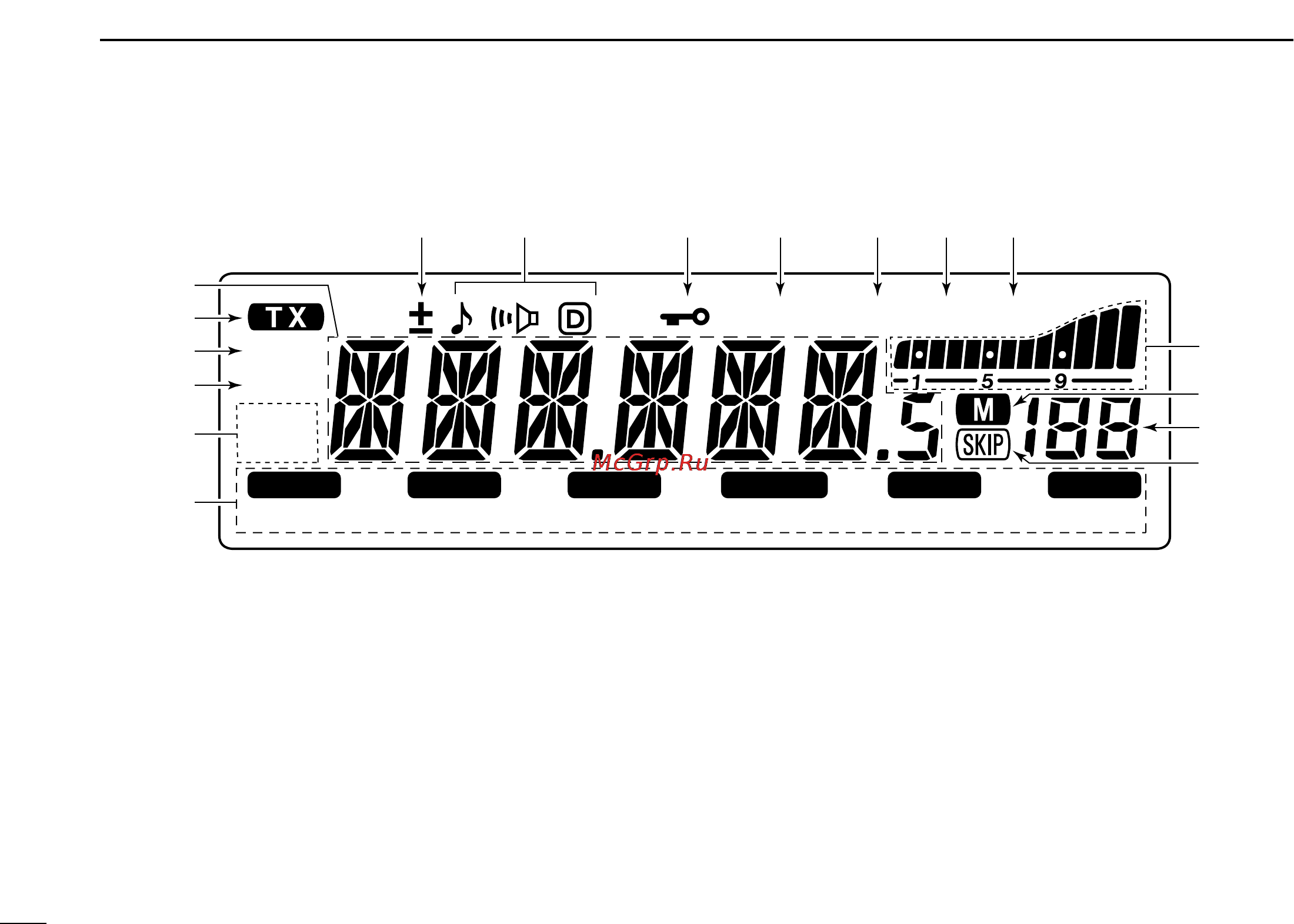

■ Function display
qFREQUENCY READOUT
Shows the operating frequency, channel names, set mode
contents, etc.
• Frequency decimal point flashes while scanning. (p. 38)
• “d” appears in place of the 1st digit while the DTMF memory
function is in use. (p. 45)
wTRANSMIT INDICATOR
➥ Appears while transmitting. (p. 15)
➥ Flashes while transmitting with the one-touch PTT func-
tion. (p. 16)
eAUDIO MUTE INDICATOR (p. 14)
Appears when the audio mute function is activated via mi-
crophone control.
rNARROW MODE INDICATOR (p. 78)
Appears when the narrow mode is selected.
Narrow mode is not available with some versions.
tOUTPUT POWER INDICATORS (p. 16)
“LOW” appears when low output power; “MID” and “LOW”
appear when mid low output power; “MID” appears when
middle output power is selected.
• Mid. low power is not available with some versions.
LOCK
S
E
T
ANM
MONI
DUP
LOW
T
-
SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL
PRIO
AO
BUSY
MUTE
NAR
MID
LOW
!7 !3!4
i
!5!6
!0
!2 !1
u
o
w
y
t
e
r
q
