74
13
OTHER FUNCTIONS
12
13
■ Set mode
• Set mode operation
q Push [SET ] to enter the set mode.
w Push [SET] or [MONI] to select the desired item.
e Rotate [DIAL] to select the condition or value.
r Push any key other than [SET] or [MONI] to exit set mode.

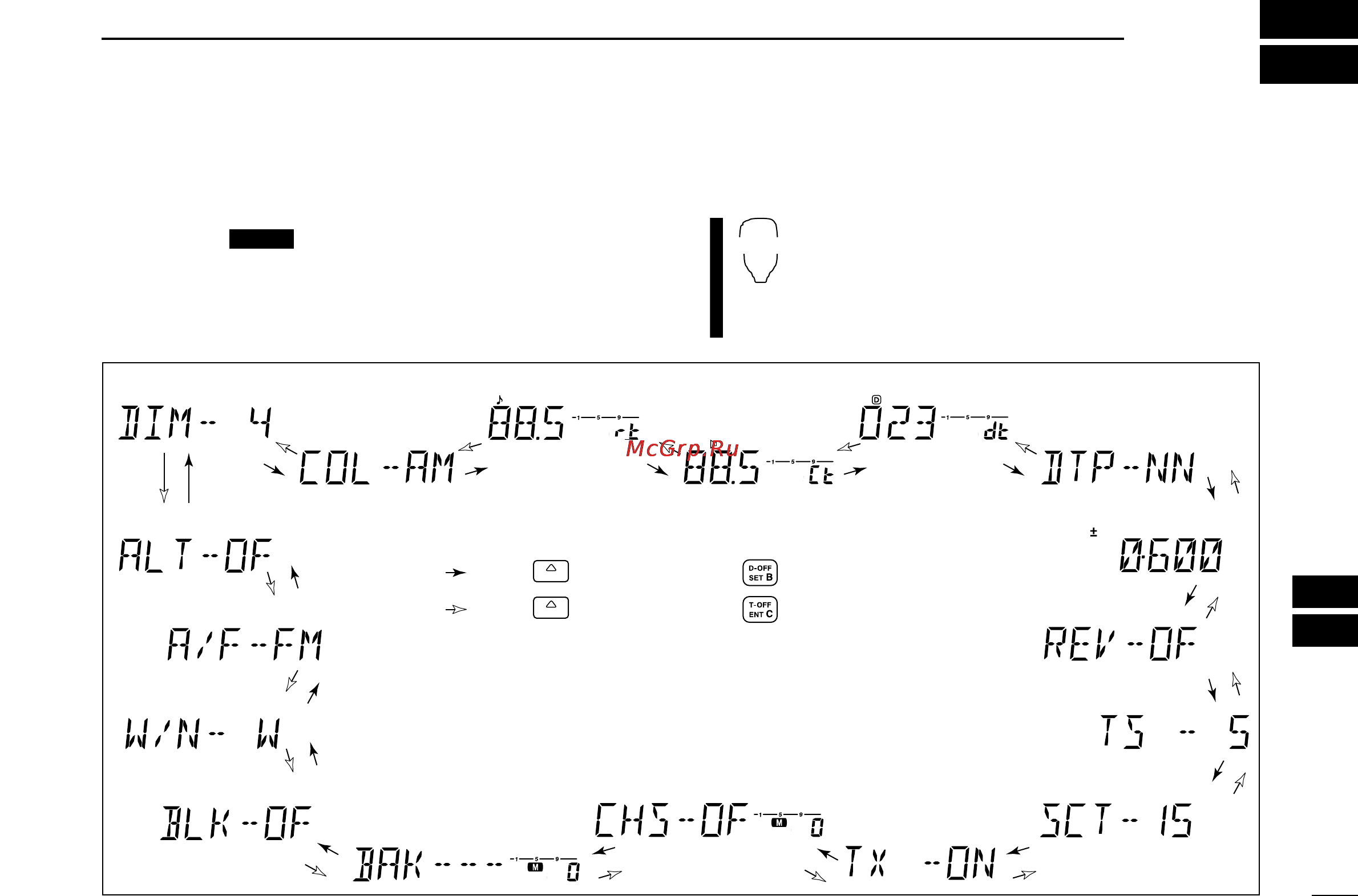

• Set mode items
z Push [
SET
B(D-OFF)] to enter set mode.
x Push [
SET
B(D-OFF)] or [
ENT
C(T-OFF)] to select
the desired item.
c Push [
YY
] or [
ZZ
] to select the condition or value.
v Push [
CLR
A(MW)] to exit set mode.
SET
B
LOCK
• Weather alert*
• AM/FM mode select*
• Display dimmer
• Display color
• Repeater tone frequency
• Tone squelch
frequency
• DTCS code
• DTCS polarity
• Offset frequency
• Tuning step
• Reverse mode
• Scan resume timer
• Channel skip setting
‡
• Bank link function
‡
• Bank setting
‡
• Wide/Nar. setting*
• Transmit permission
*Available for USA version only.
†
Appears when accessing set mode from VFO mode only.
‡
Appears when accessing set mode from memory mode only.
(front panel); or (microphone)
(front panel); or (microphone)
( )
( )
LOCK
SET
: Push
ANM
MONI
: Push
