77
13 OTHER FUNCTIONS
DD

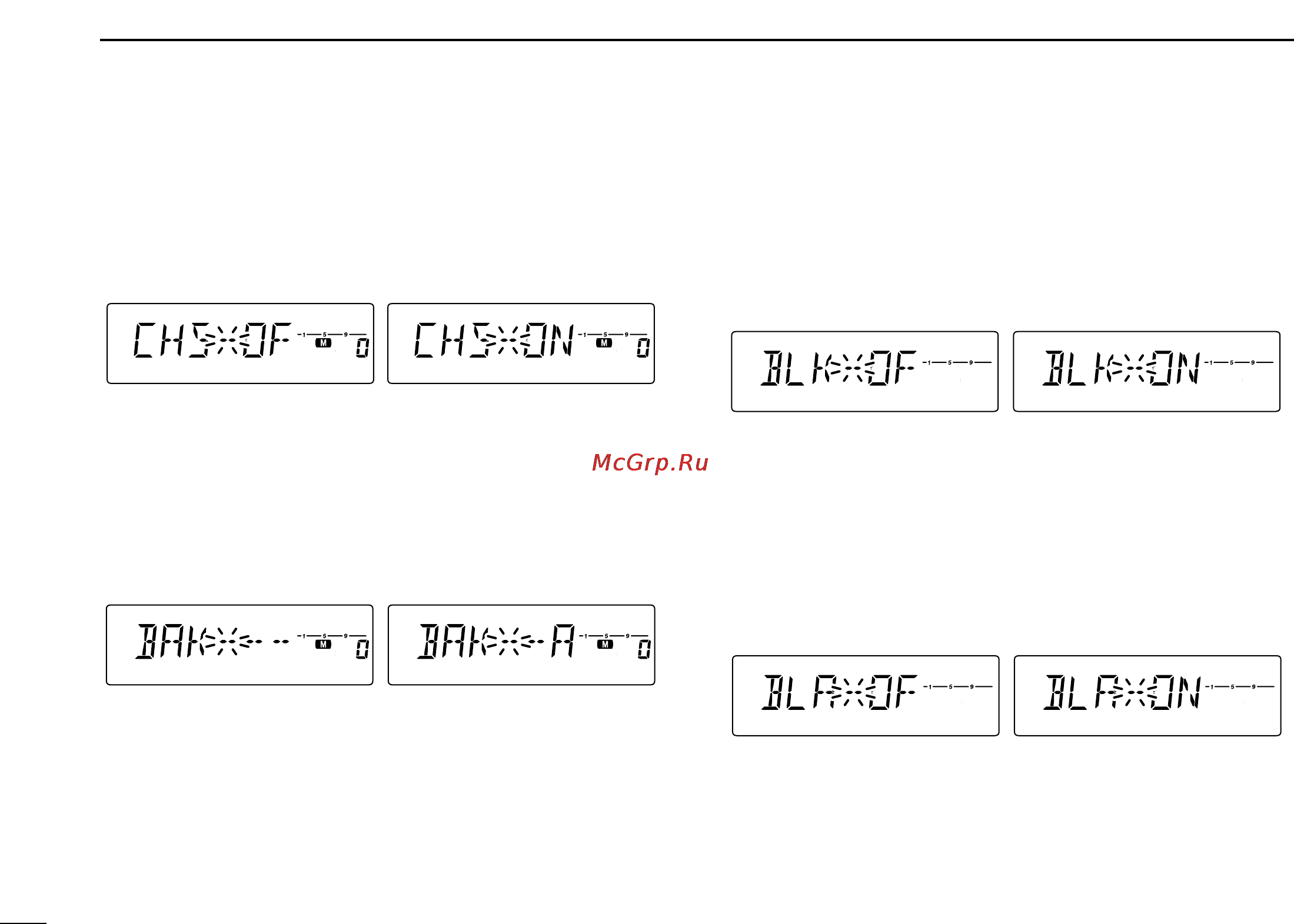

Channel skip setting
Sets channel skip setting from ON and OFF for memory skip
scan operation.
This item appears when set mode is accessed from memory
mode only.
DD
Memory bank setting
Sets the desired memory bank (A to J and OFF) to assign the
regular memory channels.
This item appears when set mode is accessed from memory
mode only.
DD
Memory bank link function
Sets the memory bank link function ON and OFF (default).
The link function provides continuous banks scan, that scans
all contents in the selected banks during bank scan.
This item appears when set mode is accessed from memory
mode only.
• Bank link setting
q Rotate [DIAL] to select the memory bank link function ON.
w Push
[SET]
or [MONI] to select the desired bank to be
linked.
• BLA: Bank A, BLB: Bank B, BLC: Bank C, BLD: Bank D,
BLE: Bank E, BLF: Bank F, BLG: Bank G, BLH: Bank H,
BLI: Bank I, BLJ: Bank J
e Rotate [DIAL] to select “ON” to linking the bank.
r Repeat steps w and e to set the link condition.
