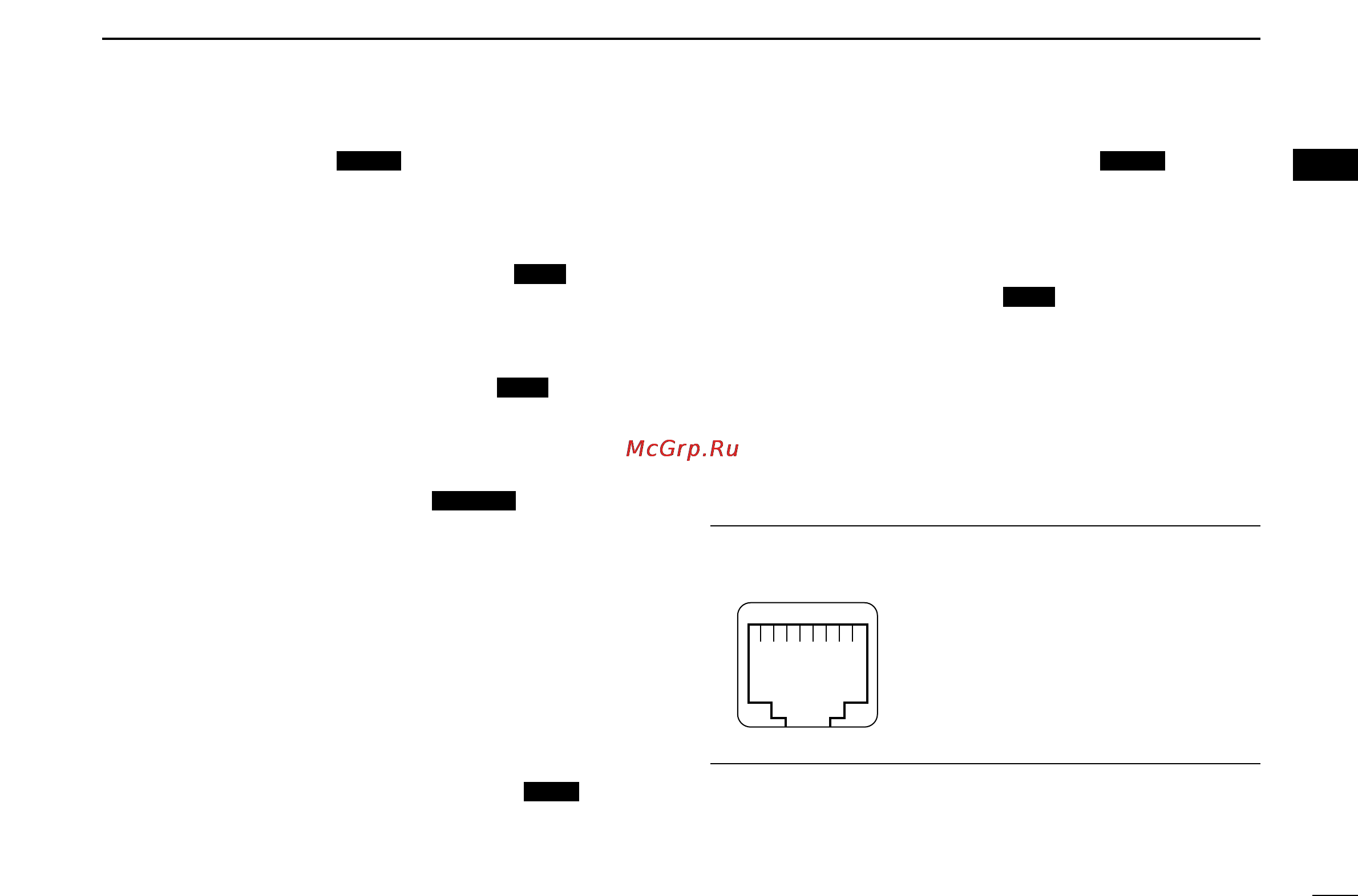

Icom IC-2200H [15/108] Panel description
![Icom IC-2200H [15/108] Panel description](/views2/1074113/page15/bgf.png)
2
1
PANEL DESCRIPTION
1
y SET•LOCK KEY [SET ]
➥ Enters set mode when pushed. (p. 74)
➥ Keys the lock function ON and OFF when pushed for
1 sec. (p. 12)
u MONITOR•CHANNEL NAME KEY [MONI ]
➥ Push to switch the monitor function ON and OFF. (p. 13)
➥ In memory and call channel mode, switches the channel
names or number ON and OFF. (p. 29)
i OUTPUT POWER•DUPLEX KEY [LOW ]
➥ Each push changes the output power selection. (p. 16)
➥ Select DUP–, DUP+ and simplex operation when
pushed for 1 sec. (p. 17)
o TONE•TONE SCAN KEY [TONE ]
➥ Each push selects a tone function. (pgs. 17, 48)
• Tone encoder, pocket beep, tone squelch or tone function
OFF can be selected.
➥ Push for 1 sec. to start/stop the tone scan function.
(p. 51)
❍ While in the digital mode operation with the installing an
optional Digital unit UT-115.
➥ Each push select the digital code
(CSQL) squelch func-
tion, call sign
(DSQL) squelch, pocket beep function
(CSQL or DSQL). (p. 67)
!0 MEMORY/CALL•PRIORITY KEY [M/CALL ]
➥ Push to select and toggle memory, call and weather
channel* modes. (pgs. 24, 35, 83)
*Weather channels available for USA versions only.
➥ Starts priority watch when pushed for 1 sec. (p. 44)
!1 VFO/MHz TUNING•SCAN KEY [V/MHz ]
➥ Selects and toggles VFO mode and 1 MHz (or 10 MHz
for some versions) tuning when pushed. (p. 9)
➥ Starts scan when pushed for 1 sec. (p. 38)
• Cancels a scan when pushed during a scan.
!2 BANK•OPTION KEY [BANK ]
➥ Push to select memory bank condition during memory
mode. (p. 32)
➥ Push for 1 sec. to enter the DTMF or option set mode.
!3 TUNING DIAL [DIAL]
Selects the operating frequency (p. 9), memory channel
(p. 24), the setting of the set mode item and the scanning
direction (p. 38).
D Microphone connector (front panel view)
q +8 V DC output (Max. 10 mA)
w Channel up/down
e 8 V control IN
r PTT
t GND (microphone ground)
y MIC (microphone input)
u GND
i Data IN
q
i
OPT
SCAN
PRIO
T-SCAN
DUP
ANM
LOCK
