11
2 SETTING A FREQUENCY
■ Tuning step selection
Tuning steps are the minimum frequency change increments
when you rotate [DIAL] or push [
YY
]/[
ZZ
] on the microphone.
The following tuning steps are available.
• 5 kHz • 10 kHz • 12.5 kHz • 15 kHz
• 20 kHz • 25 kHz • 30 kHz • 50 kHz
NOTE: For convenience, select a tuning step that matches
the frequency intervals of repeaters in your area.
q Push [V/MHz ] to se-
lect VFO mode, if neces-
sary.
w Push [SET ] to enter
set mode.

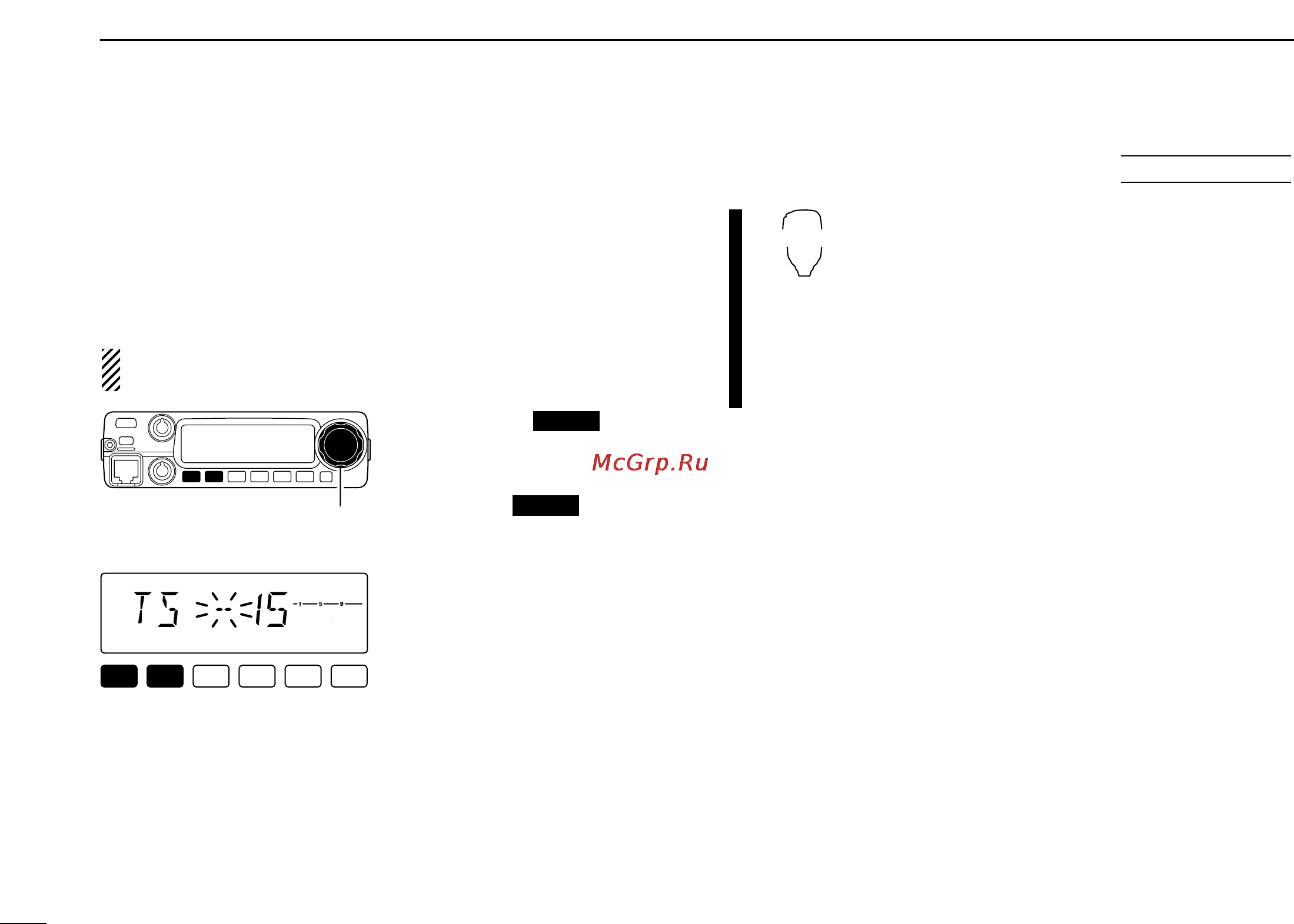

e Push [SET] or [MONI] sev-
eral times until “TS” appears
as shown at left.
r Rotate [DIAL] to select the
desired tuning step.
t Push any key other than in-
dicated function keys to exit
set mode.
z Push [VFO/LOCK] to select VFO mode, if
necessary.
x Push [
SET
B(D-OFF)] to enter set mode.
c Push [
SET
B(D-OFF)] or [
ENT
C(T-OFF)]
several times until “TS” appears.
v Push [
YY
] or [
ZZ
] to select the desired tun-
ing step.
b Push [
CLR
A(MW)] to exit set mode.
VFO/LOCK
USING
SET MODE
LOCK
SCAN
LOCK
S
E
T
ANM
MONI
DUP
LOW
T
-
SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL
PRIO
AO
BUSY
MUTE
NAR
MID
LOW
15 kHz tuning step
[DIAL]
