■ Transferring bank contents
Contents of programmed memory banks can be cleared or
transferred to another bank.
INFORMATION: Even if the memory bank contents are
cleared, the memory channel contents still remain pro-
grammed.
q

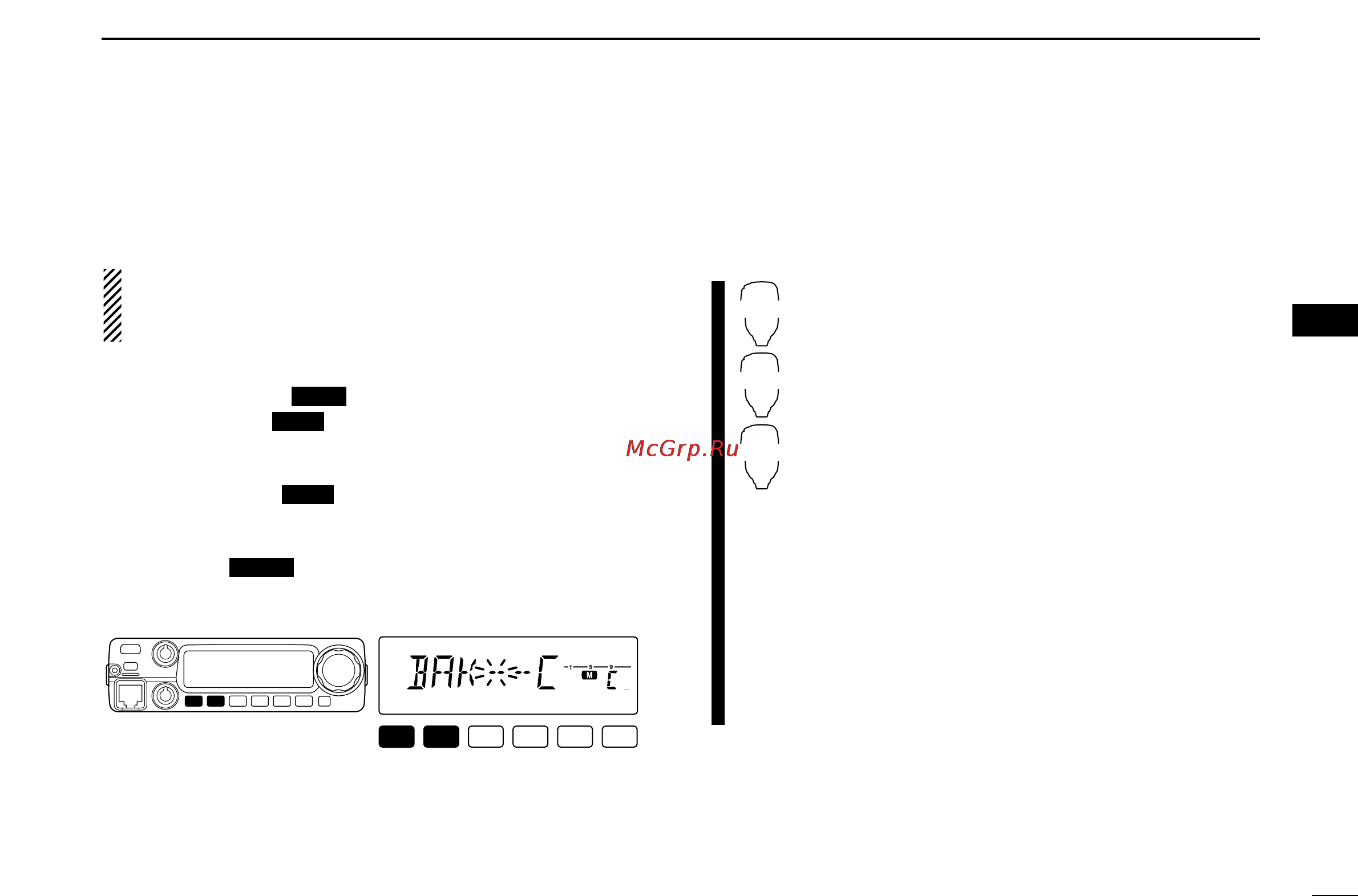

Select the desired bank contents to be transferred or erased.
➥ Push [M/CALL ] to select memory mode.
➥ Push [BANK ] then rotate [DIAL] to select the de-
sired memory bank.
• Bank initial blinks.
➥ Push [BANK ] to select the bank then rotate
[DIAL] to select the desired contents.
• Bank initial stops blinking.
w Push [SET ] enter the set mode.
e Push [SET] or [MONI] several times until “BAK” appears.
• Bank initial appears.
r Rotate [DIAL] to select the desired bank initial to transfer
or erase.
• Select “– –” indication when erasing the contents from the bank.
t Push any key other than [SET] or [MONI] to transfer or
erase. and return to regular memory condition.
y Repeat steps q to t for transferring or erasing an an-
other banks contents.
z Select the desired bank contents to be trans-
ferred or erased.
➥ Push [MR/CALL] to select memory mode.
➥ Push [BANK/OPTION], then select the de-
sired memory bank via [
YY
]/[
ZZ
].
➥ Push [
CLR
A(MW)] to select the bank then
select the desired contents via [
YY
]/[
ZZ
].
x Push [
SET
B(D-OFF)] to enter set mode.
c Push [
SET
B(D-OFF)] or [
ENT
C(T-OFF)] sev-
eral times until “BAK” appears.
v Push [
YY
]/[
ZZ
] to select the desired bank initial
to transfer or erase.
• Select “-- --” indication when erasing the contents
from the bank.
b Push [
CLR
A(MW)] to set the bank and exit set
mode.
n Repeat steps z to b for transferring or eras-
ing an another banks contents.
BANK
[Y]/[Z]
SET
LOCK
S
E
T
ANM
MONI
DUP
LOW
T
-
SCAN
TONE
PRIO
M/CALL
SCAN
V/MHz
DIGITAL
PRIO
AO
BUSY
MUTE
NAR
MID
LOW
LOCK
OPT
OPT
PRIO
