Metabo UK 290 [16/51] Please read first

ENGLISH

1. Parts and Components

(standard delivery) ....................15

2. Please Read First!.....................16

3. Safety .........................................16

3.1 Specified Conditions of Use ........16

3.2 General Safety Instructions.........16

3.3 Safety Devices ............................18

4. Special Product Features .........18

5. Operating Elements ..................18

6. Initial Operation.........................19

6.1 Machine Installation ....................19

6.2 Dust Collector..............................20

6.3 Mains Connection .......................20

7. Operation ...................................20

7.1 Circular Saw................................21

7.2 Crosscut Saw..............................21

8. Care and Maintenance..............21

8.1 Saw Blade Change .....................22

8.2 Adjusting the Scale .....................23

8.3 Adjusting the Tilt Limiter..............23

8.4 Setting the Motorhead

Carriage Damper.........................23

8.5 Cleaning the Saw........................23

8.6 Storage........................................23

8.7 Maintenance................................23

9. Transport ...................................23

10. Tips and Tricks..........................24

11. Available Accessories ..............24

12. Repairs.......................................24

13. Environmental Protection ........24

14. Trouble Shooting ......................24

15. Technical Specifications ..........25

Available Accessories ......................50

These Operating Instructions have been

written to make it easier for you, the

user, to learn how to operate this

machine and to do so safely. These

instructions should be used as follows:

− Read these instructions before use.

Pay special attention to and always

follow all safety instructions.

− These instructions are intended for

persons with basic technical knowl

edge regarding the operation of a

machine like the one described

herein. If you have no experience

whatsoever, you are strongly

advised to seek competent advise

and guidance from an experienced

person before operating this

machine.

− Keep all documents supplied with

this machine for future reference.

Retain proof of purchase in case of

warranty claims.

− If you lend or sell this machine be

sure to have these Operating

Instructions go with it.

− The manufacturer is not liable for

any damage resulting from neglect

of these Operating Instructions.

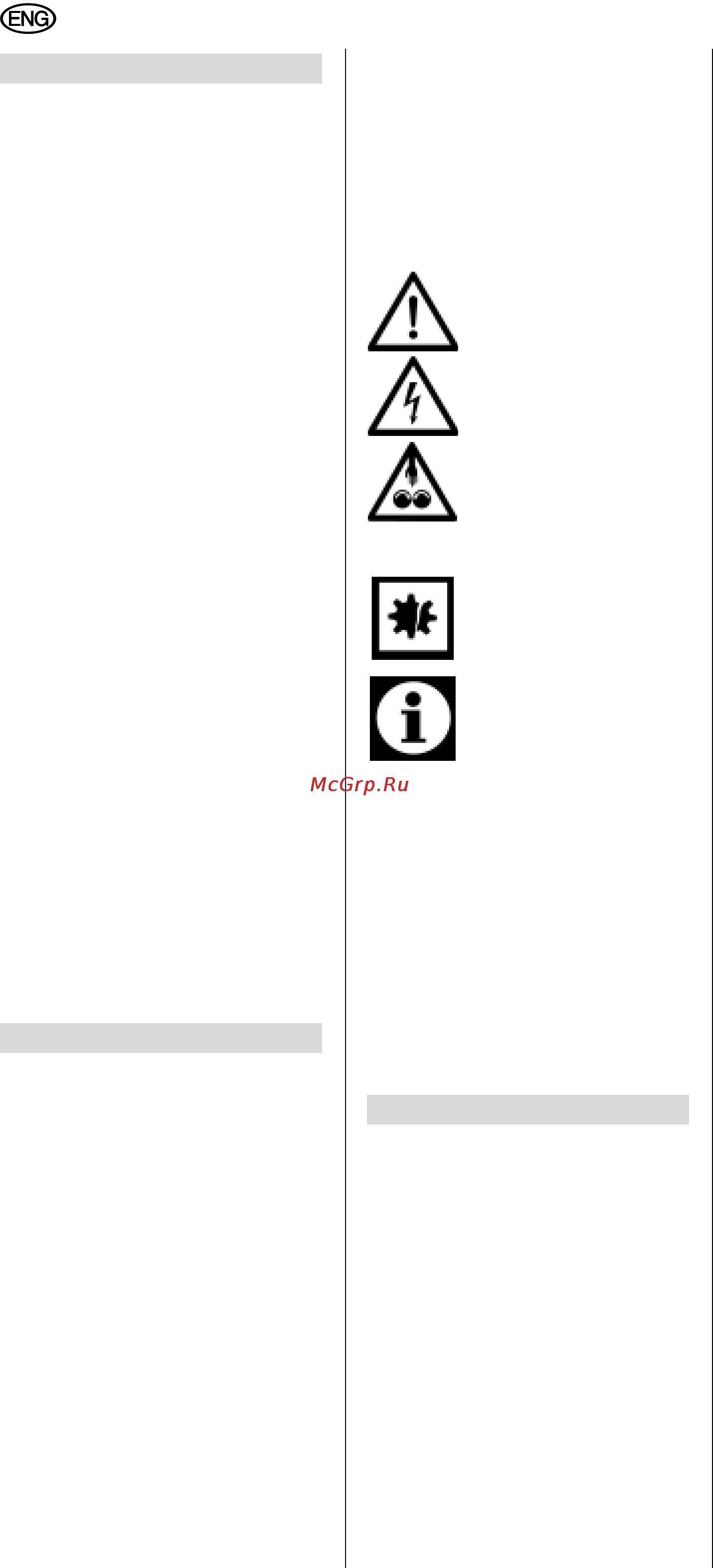

Information in these instructions is des-

ignated as under:

Danger!

Risk of personal injury or

environmental damage.

Risk of electric shock!

Risk of personal injury

by electric shock.

Drawing-in/trapping haz-

ard!

Risk of personal injury

by body parts or clothing

being drawn into the

rotating saw blade.

Caution!

Risk of material damage.

Note:

Additional information.

− Numbers in illustrations (1, 2, 3, ...)

− indicate component parts;

− are consecutively numbered;

− correspond with the number(s) in

brackets (1), (2), (3) ... in the

neighbouring text.

− Numbered steps must be carried out

in sequence.

− Instructions which can be carried

out in any order are indicated by a

bullet point (•).

− Listings are indicated by a dash (–).

3.1 Specified Conditions of

Use

This saw is intended for rip and cross

cuts in solid wood, faced boards, chip

board and wood-core plywood sheets

and plastics.

Do not cut round stock without suitable

jigs or fixtures. The rotating saw blade

could turn the workpiece.

When sawing thin stock layed on edge,

a suitable guide must be used for firm

support.

Use of wobble saw blades is not permit-

ted on this machine.

Any use other than the use specified

above is not allowed. Use other then

specified, any alteration , modification or

use of parts not approved by the manu

facturer can cause unforeseeable dam-

age!

3.2 General Safety Instruc-

tions

• When operating this machine

observe the following safety instruc-

tions, to exclude the risk of personal

injury or material damage.

• Please also observe the special

safety instructions in the respective

chapters.

• Where applicable, follow the legal

directives or regulations for the pre-

vention of accidents pertaining to

the use of circular saws.

General hazards!

• Keep your work area tidy – a messy

work area invites accidents.

• Be alert. Know what you are doing.

Set out to work with reason. Do not

operate machine while under the

influence of drugs, alcohol or medi

cation.

• Consider environmental conditions:

keep work area well lighted.

• Prevent adverse body positions.

Ensure firm footing and keep your

balance at all times.

• Use suitable workpiece supports

when cutting long stock.

• Do not operate the machine near

inflammable liquids or gases.

• The saw shall only be started and

operated by persons familiar with

circular saws and being aware of the

dangers associated with the opera

tion of a circular saw.

Persons under 18 years of age

shall use this machine only in the

course of their vocational training,

under the supervision of an instruc

tor.

• Keep bystanders, particularly chil-

dren, out of the danger zone. Do not

permit bystanders to touch the

machine or power cable while it is

running.

• Do not overload machine – use it

only within the performance range it

was designed for (see "Technical

Specifications").

Danger! Risk of electric shock!

• Do not expose machine to rain.

• Do not operate machine in damp or

wet environment.

• Prevent body contact with earthed

objects such as radiators, pipes,

cooking stoves, refrigerators when

operating this machine.

• Do not use the power cable for pur-

poses it is not intended for.

Table of Contents

2. Please Read First!

3. Safety

Metabo UK 290 [16/51] Please read first
