19
ENGLISH

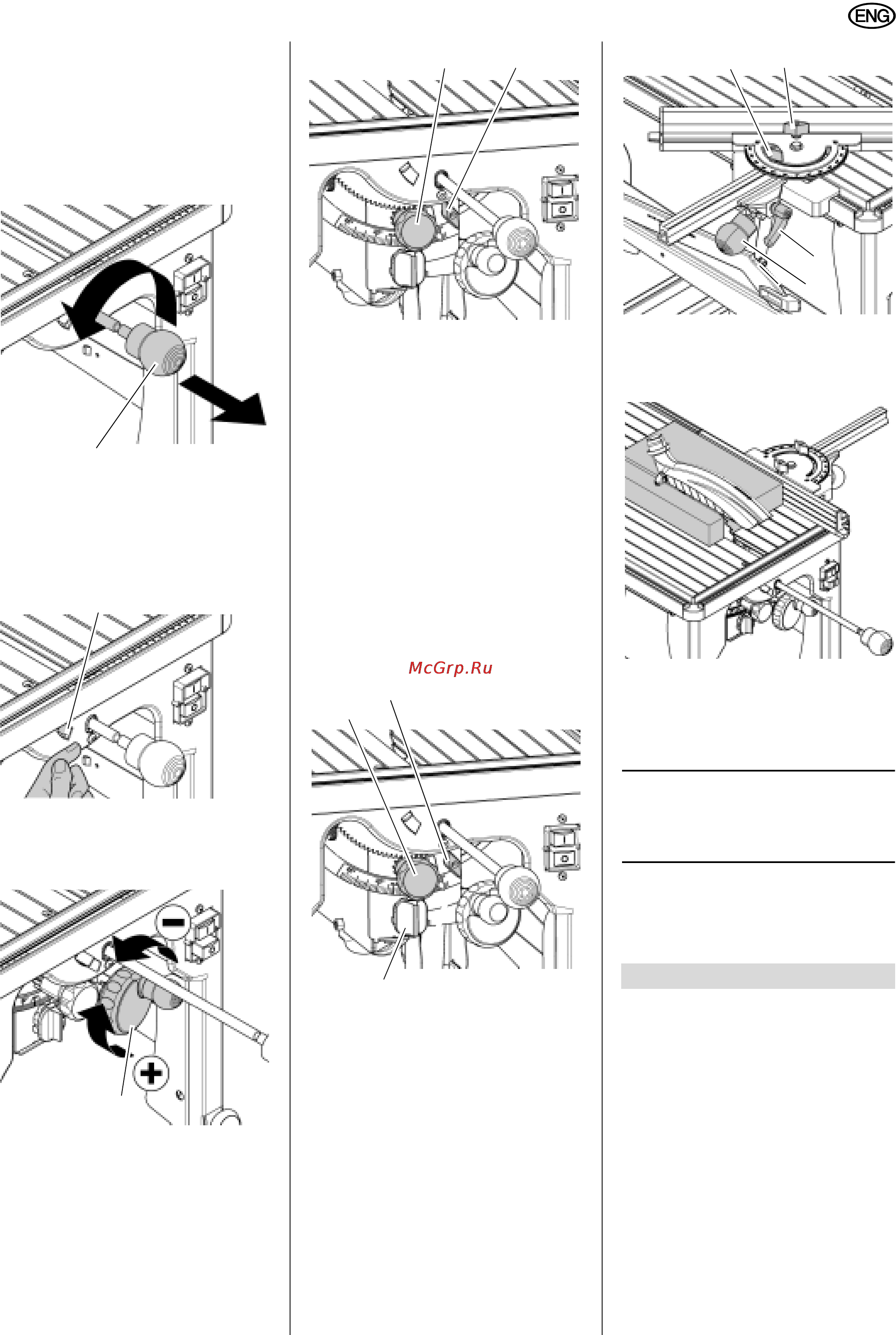

• Turn knob (34) counter-clockwise:
saw blade can now be moved
lengthwise by pulling on the knob.
When the knob (34) is released, the
saw blade returns automatically to
its rear stop position. At the stop
position the pull bar is automatically
arrested.
Pull action lock lever
To arrest the pull bar:
• Slide lever (35) to the left = pull bar
is arrested at the front or centre
position.
Handwheel for setting the depth of
cut
The depth of cut can be adjusted by
turning the handwheel (36).
Twist knob for blade tilt
With the twist knob (37) the saw blade
can be continuously tilted from 0°
through 45°.
Lock screw
To keep the set bevel tilt from changing
during cutting, it must be locked with the
lock screw
(38).
Tilt limiter
The saw blade tilt is limited to 0 and 45°.
For special mitre cuts (undercut) the
blade tilt can be increased by 1.5° in
both directions.
1. Loosen locking screw (39).
2. Turn sawhead away from the 0° or
45° stop with the knob (40).
3. Turn tilt limiter (41) clockwise
against the stop.
4. The saw blade tilt can now be set
over a range from -1.5
- 46.5°.
Universal fence
The universal fence's carriage is set on
the saw table's guide extrusion and
locked with the knob
(45).
In crosscut mode the universal fence
can be used for mitre cuts:
• Loosen wing nut (42) and set the
cutting angle.
In table saw mode the universal fence is
used as rip fence:
• Loosen lock lever (44) and set to
required cutting width.
The fence extrusion can be removed
after loosening the eccentric clamp
(43),
and its position shifted:
• Wide edge = for cutting thick work-
pieces (max. 60 mm).
3
Note:
In crosscut mode the fence extru-
sion must be installed with the wide
edge.
• Small edge =
− for cutting thin workpieces;
− for bevel cuts (in table saw mode)
6.1 Machine Installation
1. Lift machine out of its packaging
with two persons.
2. Stand machine with the feet on the
floor.
3. Release locking clips.
4. Lift machine at the front and fold
down the front legs.
5. Swing front lock screws (46) into
stop position. If necessary, loosen
lock screws.
6. Tighten the front lock screws hand-
tight, to securely clamp the legs in
their stop position.
34
35
36
37
38
39
40
41
6. Initial Operation
42 43
44
45
