Indoor Units ED12-321A
142 Installation Manual
F
(M3 X 20L)
E
Remote
controller holder
D
Wireless
remote controller
Before screwing the remote
controller holder to the wall,
make sure that control
signals are properly received
by indoor unit.
A
Mounting
plate
Clip
Mark (rear side)
Front panel
Bottom frame
■ How to attach the indoor
unit.
Hook the claws of the bottom
frame to the mounting plate.
If the claws are difficult to
hook, remove the front panel.
■ How to remove the indoor
unit.
Push up the marked area (at
the lower part of the front
panel) to release the claws.
If it is difficult to release,
remove the front panel.

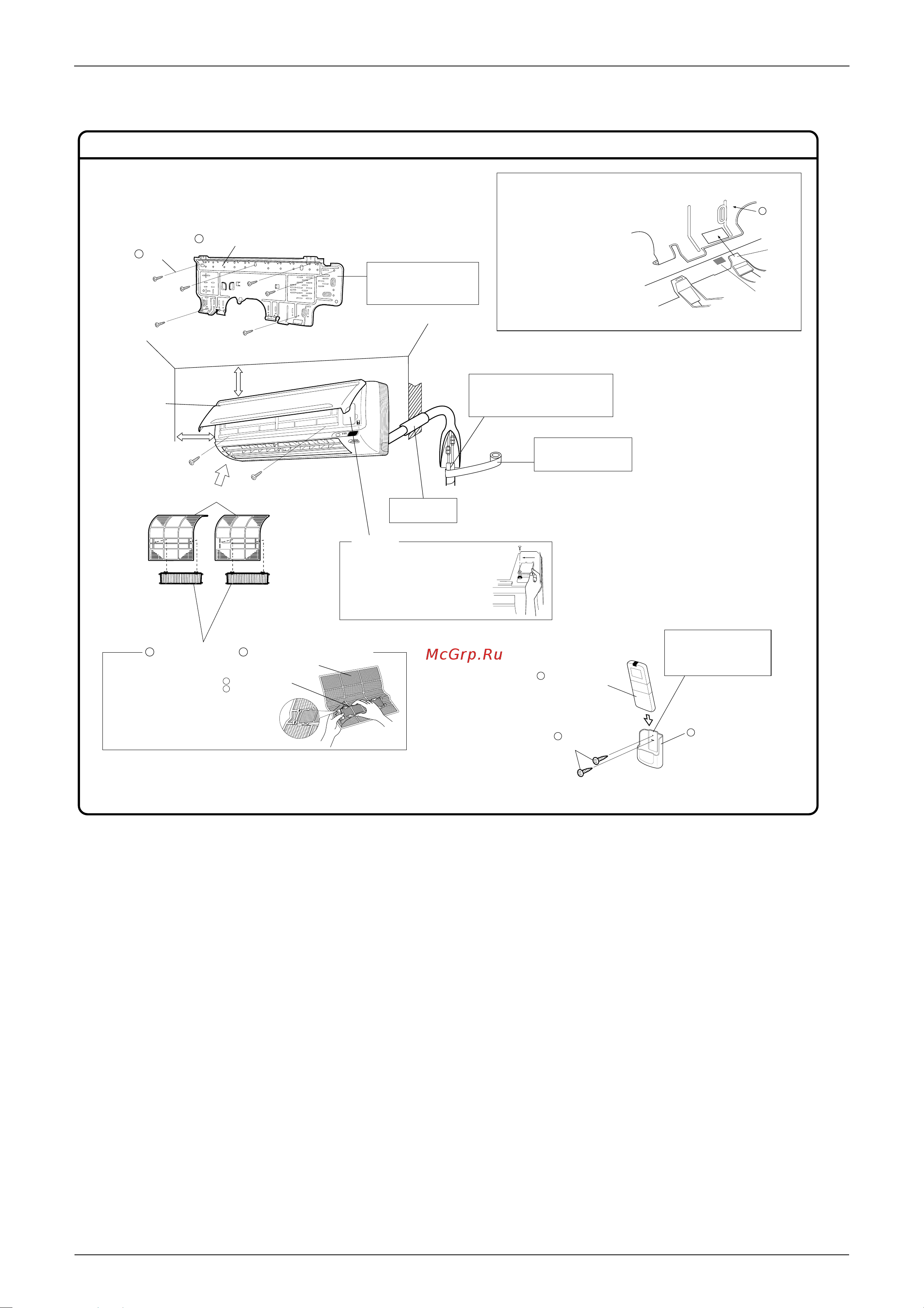

Indoor Unit Installation Drawings
30 mm or more from ceiling
Front grille
Caulk pipe hole
gap with putty.
Cut thermal insulation pipe to an
appropriate length and wrap it with
tape, making sure that no gap is left
in the insulation pipe’s cut line.
Wrap the insulation
pipe with the finishing
tape from bottom to top.
A
Mounting plate
B
M4 X 25L
The mounting plate should
be installed on a wall which
can support the weight of
the indoor unit.
Air filters
C
Air purifying filters or
M
Photocatalytic deodorizing filter
C
Air filter
Air purifying filter or
Photocatalytic
deodorizing filter
M
Install air purifying
filter or photocatalytic
deodorizing filter on
air filter
• Remove the screws on the
service lid.
• Slide the service lid leftward.
• Rotate the service lid upward.
This service lid is an open/close type.
Service lid
50 mm or more from walls
(on both sides)
