Indoor Units ED12-321A
164 Installation Manual

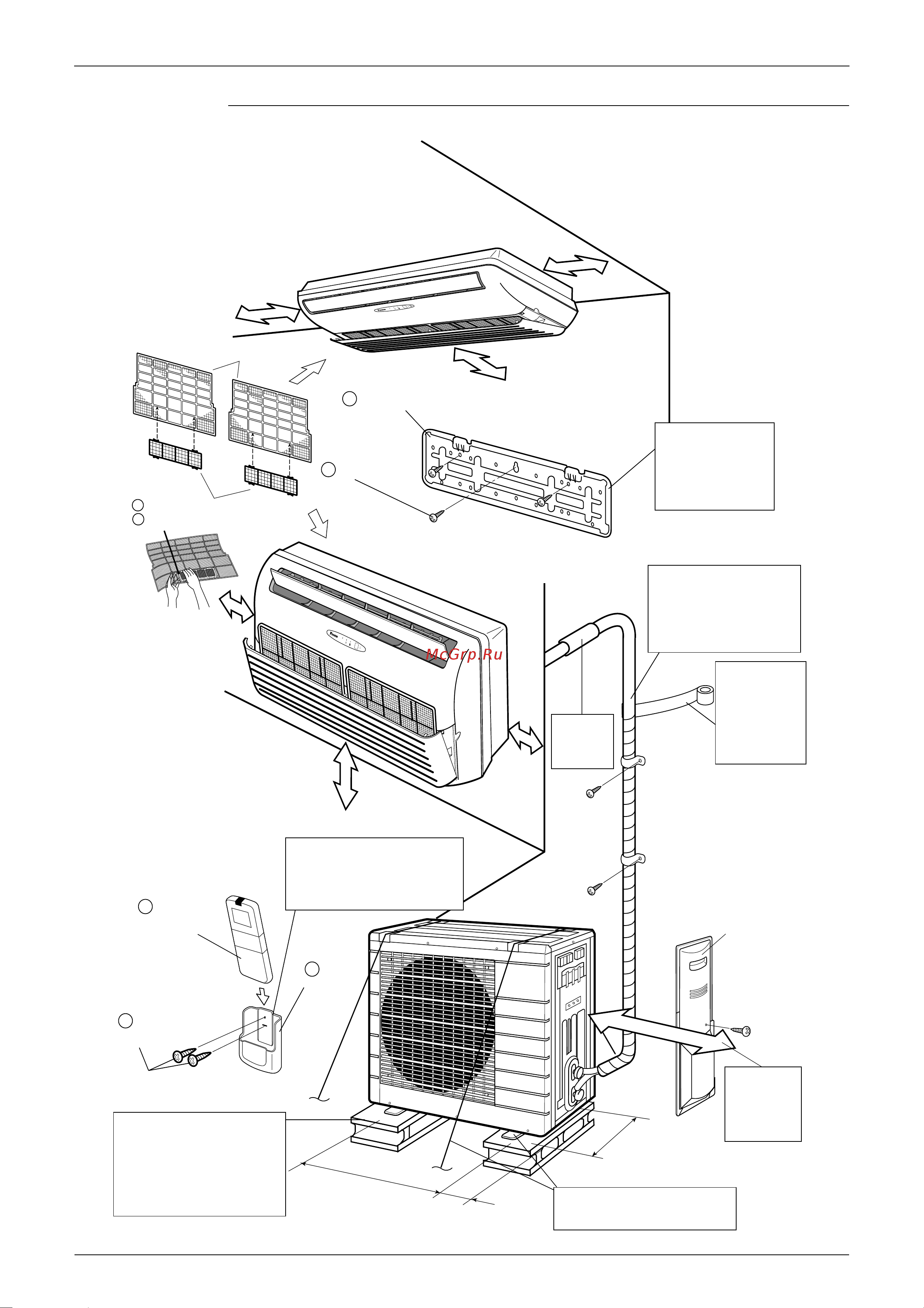

Indoor / Outdoor Unit Installation Drawings
O
N
O
F
F
A Mounting plate
B M4 X 25L
50 mm or more
from walls
50 mm or more
from floor
Space for installation work
Min. (200 mm)
Space for installation work
Min. (200 mm)
Space for
installation
work Min.
(200 mm)
There should be no space
between ceiling and the unit.
D Wireless
remote controller
F
(M3 X 20L)
E
Remote
controller
holder
(Foot bolt-hole
centres)
(Foot bolt-hole centres)
X
Y
Z
(From unit's side)
Service lid
Caulk pipe
hole gap
with putty.
Cut thermal insulation pipe
to an appropriate length and
wrap it with tape, making
sure that no gap is left in the
insulation pipe’s cut line.
The mounting plate
should be installed on
a wall which can
support the weight of
the indoor unit.
In sites with poor drainage,
use block bases for outdoor unit.
Adjust foot height until the unit
is leveled. Otherwise, water
leakage or pooling of water may
occur.
Before screwing the remote
controller holder to the wall,
make sure that control signals are
properly received by indoor unit.
Where there is a danger of the
unit falling, use foot bolts, or wires.
Space for
installation
work Min.
(200 mm)
250 mm from wall
Allow space
for piping and
electrical
servicing.
Air filters
H Photocatalytic deodorizing filter or
C Air purifying filter
Wrap the
insulation pipe
with the
finishing tape
from bottom to
top.
