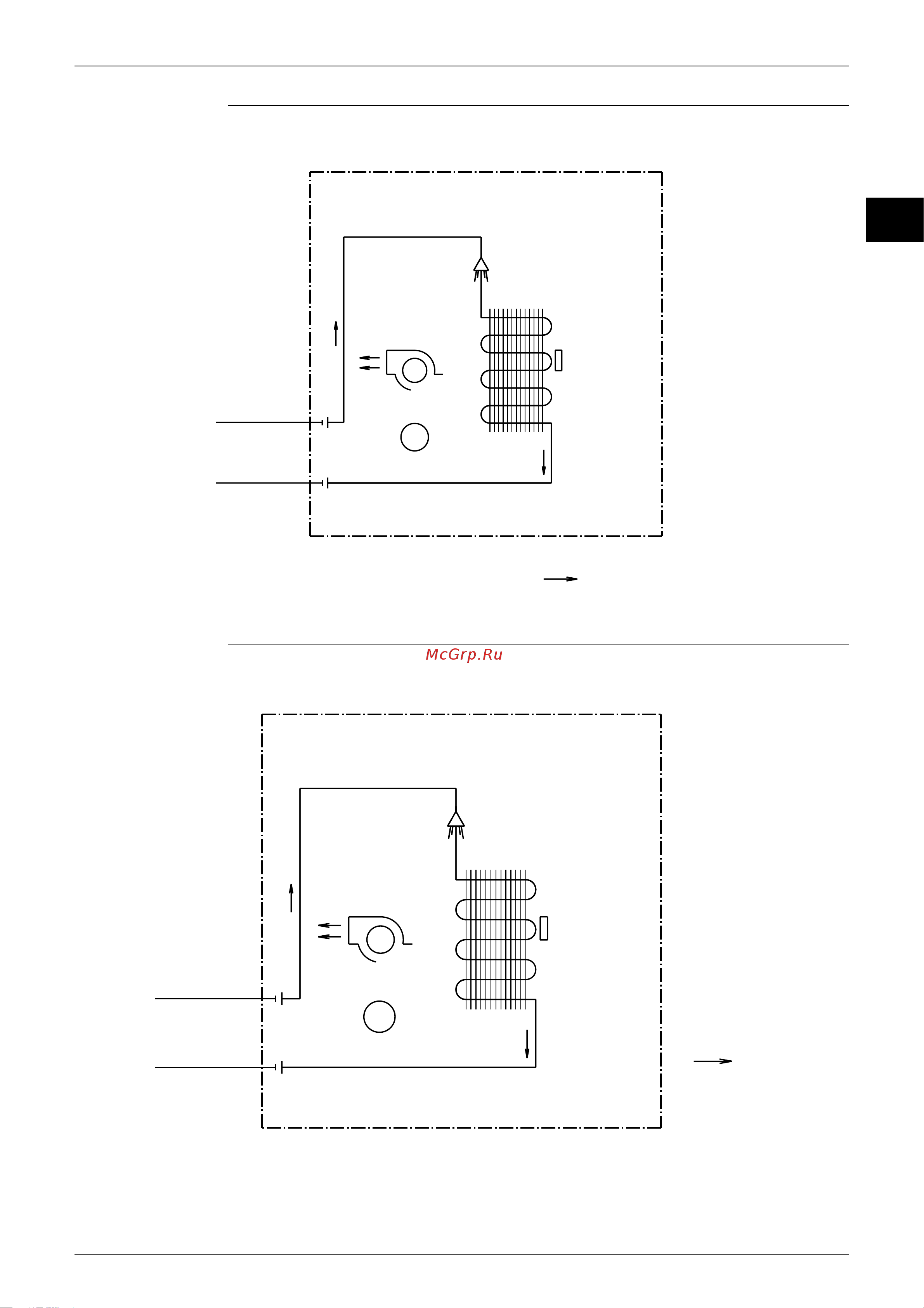

ED12-321A Piping Diagrams
SUPER MULTI NX B-Series Cooling Only 33
2
FTKD60BVMA
FTKD71BVMA
FIELD PIPING
FIELD PIPING
(
15.9CuT
)
(
6.4CuT
)
CROSS FLOW FAN
FAN MOTOR
(
7.9CuT
)
INDOOR UNIT
(
12.7CuT
)
M
REFRIGERANT FLOW
ON HEAT EXCH.
THERMISTOR
COOLING
C : 4D040082A
HEAT EXCHANGER
(
15.9CuT
)
FIELD PIPING
FIELD PIPING
(
9.5CuT
)
CROSS FLOW FAN
FAN MOTOR
(
7.9CuT
)
INDOOR UNIT
(
12.7CuT
)
M
HEAT EXCHANGER
ON HEAT EXCH.
THERMISTOR
REFRIGERANT FLOW
COOLING
C : 4D040083A
