ED12-321A Indoor Units
Installation Manual 159
4

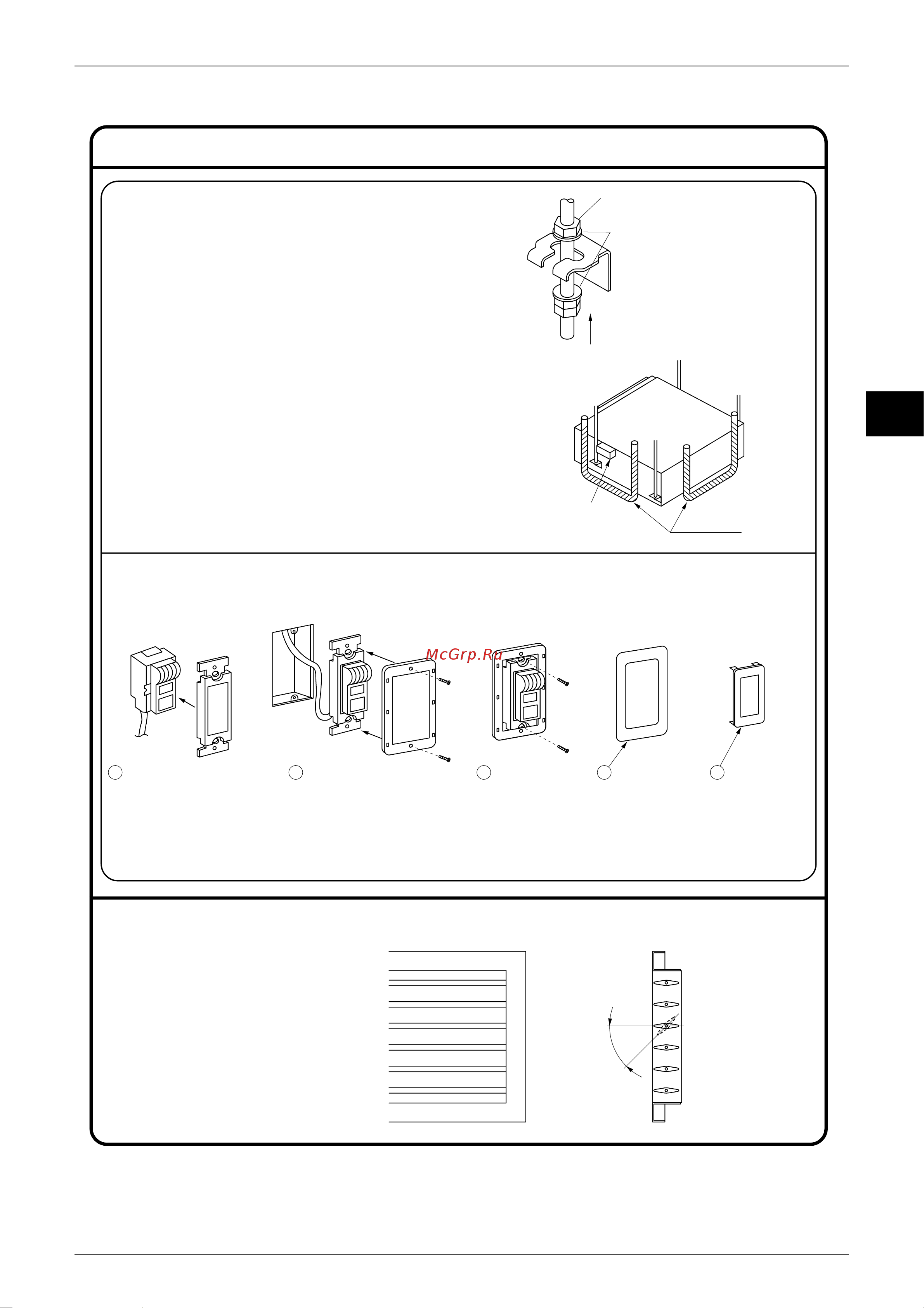

INDOOR UNIT INSTALLATION
■ Temporarily install the indoor unit.
●
Attach the hanger brackets to the suspension bolts. Be sure to use
nuts and washers both above and below the hanger brackets to
secure them.
NOTE) Use washers when mounting with M8 bolts.
■ Use a water level or water-filled vinyl tubes to check that the unit
is level at all four corners as shown in the drawing.
■ Tighten the top nuts.
■ Mounting the signal receiver
Mount the signal receiver as shown below.
Note) Mount the remote control cord far enough away from strong electrical wires (such as distribution wires for electrical
lights, air conditioners, etc.) and from weak electrical wires (such as wires for telephones, intercoms, etc.).
For heat pump: If your feet feel cold when using the heating function, it is recommended that the air discharge grill shown
at below be attached.
Nut (commercially available)
Washer (commercially available)
Tighten
(two nuts)
Vinyl tube
Water level
Press the signal receiver
into the insulated
mounting frame.
1
Press the signal receiver
and mounting frame into
the faceplate frame and
secure with two screws.
2
Mount the
completed
assembly using
two screws.
3
Press the
faceplate onto
the faceplate
frame.
4
Press the
decorative
cover into the
faceplate.
5
(Adjustable
angle)
45˚
