ED12-321A Indoor Units
Installation Manual 151
4
Indoor Unit Installation
1.
Installing the mounting plate.
• The mounting plate should be installed on a wall which can support the weight of the indoor unit.
1) Temporarily secure the mounting plate to the wall, make sure that the panel is completely level, and mark
the boring points on the wall.
2) Secure the mounting plate to the wall with screws.

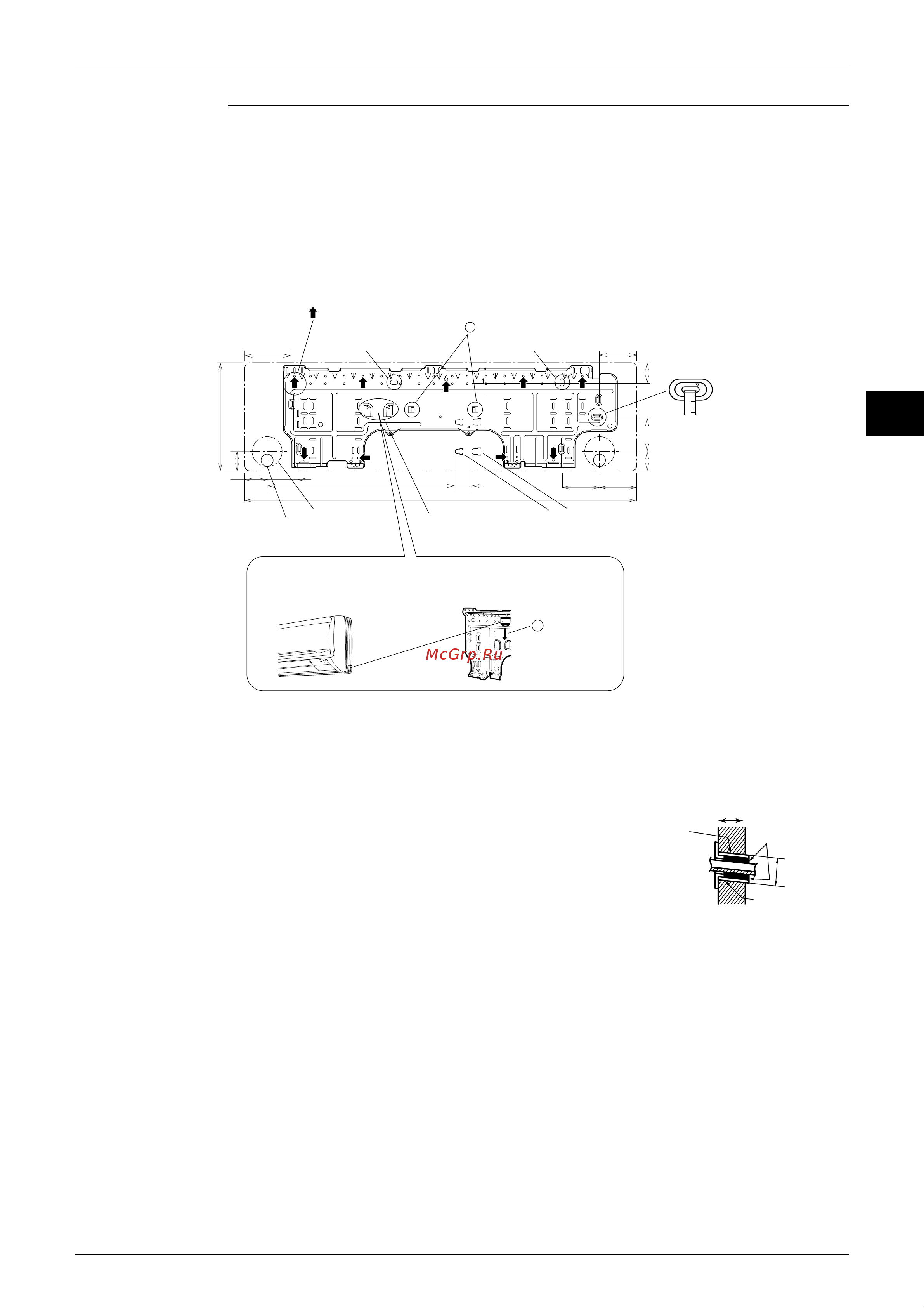

Recommended mounting-plate retention spots and Dimensions
125
125
60
60
83
83
503.5
503.5
44.5
44.5
290
290
52
1050
1050
99.5
99.5
52 90
90
55
100
100
100
100
Keep here the piece cut out
from the unit for piping
Through-the-wall
hole φ80mm
Drain hose position
φ80
φ80
Recommended mounting - plate retention
spots (9 spots in all)
(Bolt size : M10) (Bolt size : M10)
Place a leveler on raised tab.
b
Use tape
measure
as shown.
Position the
end of tape
measure at ∇.
Gas pipe end
Liquid pipe end
* The removed pipe port cover can be
kept in the mounting plate pocket.
Removed pipe
port cover
A
Mounting plate
2.
Boring a wall hole and installing wall embedded pipe.
• For walls containing metal frame or metal board, be sure to use a wall
embedded pipe and wall cover in the feed-through hole to prevent
possible heat, electrical shock, or fire.
• Be sure to caulk the gaps around the pipes with caulking material to
prevent water leakage.
1) Bore a feed-through hole of 80 mm in the wall so it has a down slope
toward the outside.
2) Insert a wall pipe into the hole.
3) Insert a wall cover into wall pipe.
4) After completing refrigerant piping, wiring, and drain piping, caulk pipe
hole gap with putty.
Inside Outside
Caulking
Wall embedded pipe
(field supply)
Wall hole cover
(field supply)
Wall embedded pipe
(field supply)
φ8
0
