ED12-321A Indoor Units
Installation Manual 149
4

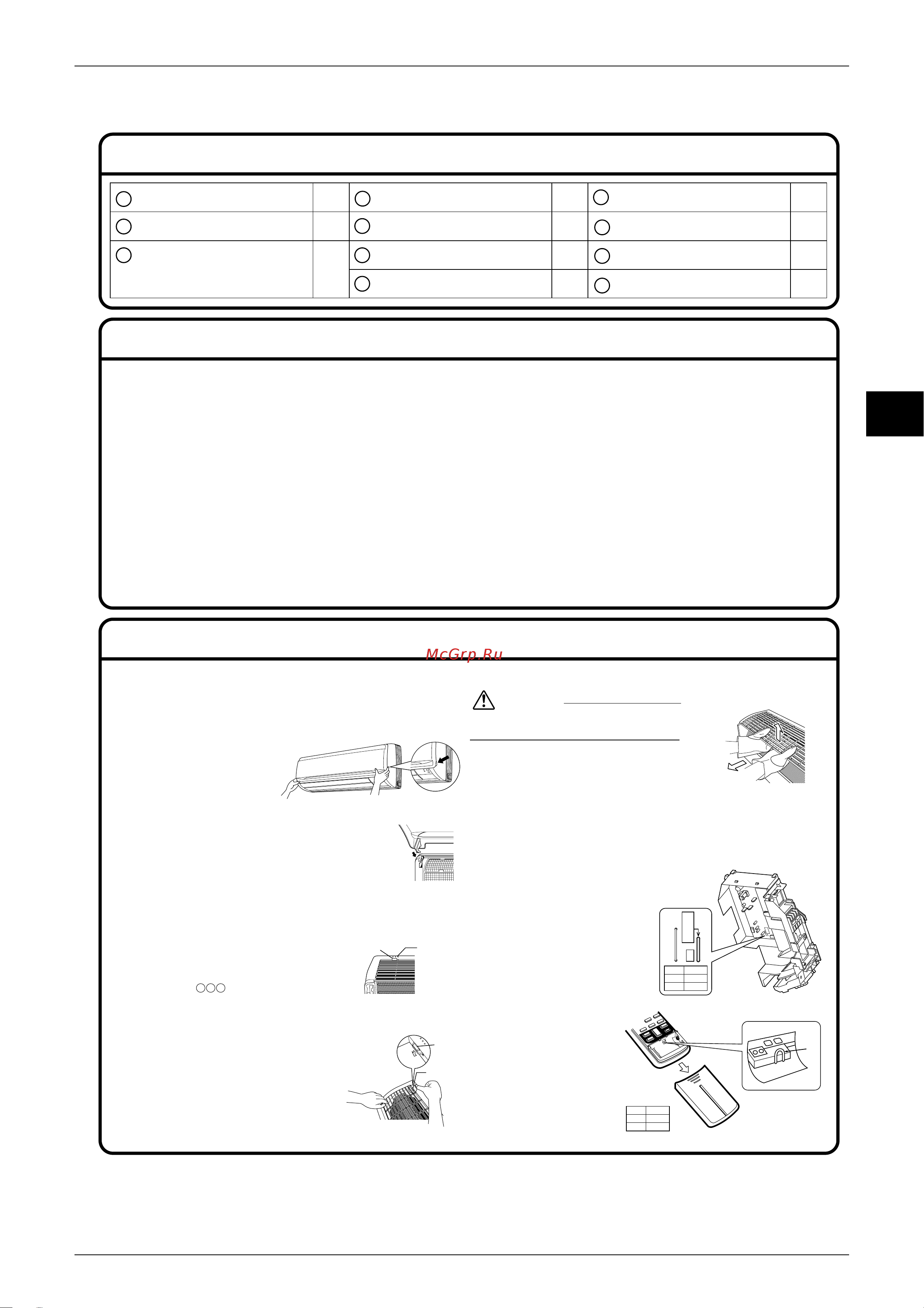

2.2 Wall Mounted Type FTK(X)D 50/60/71 B
Accessories
Choosing a Site
Installation Tips
A
Mounting plate
E
Remote controller holder
F
Fixing screws for remote
control holder M3 × 20L
H
Indoor unit fixing screws
M4 × 12L
G
AAA dry-cell batteries
J
Insulation tape
K
Operation manual
L
Installation manual
1
9
2
1
1
2
2
2
1
1
1
D
Wireless remote controller
C
Air purifying filter with
photocatalytic deodorizing
function
B
Mounting platefixing screws
M4 × 25L
1.
Indoor unit.
The indoor unit should be sited in a place where:
1) the restrictions on installation specified in the indoor unit installation drawings are met,
2) both air intake and exhaust have clear paths met,
3) the unit is not in the path of direct sunlight,
4) the unit is away from the source of heat or steam,
5) there is no source of machine oil vapour (this may shorten indoor unit life),
6) cool air is circulated throughout the room,
7) the unit is away from electronic ignition type fluorescent lamps (inverter or rapid start type) as they may shorten the
remote control range,
8)
the unit is at least 1 metre away from any television or radio set (unit may cause interference with the picture or sound).
2.
Wireless remote controller.
1) Turn on all the fluorescent lamps in the room, if any, and find the site where remote control signals are properly
received by the indoor unit (within 7 metres).
1. Removing and installing front panel
Removal method
Hook fingers on the panel protrusions on the left and right of the main body,
and open until the panel stops. Slide the front panel sideways to disengage
the rotating shaft. Then pull the front
panel toward you to remove it.
Installation method
Align the tabs of the front panel with the
grooves, and push all the way in. Then close
slowly. Push the center of the lower surface
of the panel firmly to engage the tabs.
• Before choosing the installation site, obtain user approval.
Push the
rotating shaft
of the front
panel into the
groove.
2. Removing and installing front grille
Removal method
1) Remove front panel to remove the air filter.
2) Remove the front grille. (3 screws)
3) In front of the
mark of the front grille,
there are 3 upper hooks. Lightly pull the
front grille toward you with one hand, and
push down on the hooks with the fingers of
your other hand.
 mark area
(3 locations)
Upper hook
Lightly pull the front
grille toward you with
one hand, and push
down on the hooks with
the fingers of your other
hand. (3 locations)
Push
down.
Upper hook
Upper hook
<When there is no work space because the unit is close to ceiling>
Be sure to wear protection gloves.
Caution
1) Push up.
2) Pull toward you.
Place both hands under the center of the front
grille, and while pushing up, pull it toward you.
Installation method
1) Install the front grille and firmly engage the upper hooks (3 locations).
2) Install 3screws of the front grill.
3) Install the air filter and then mount the front panel.
3. How to set the different
addresses
When two indoor units are
installed in one room, the
two wireless remote
controllers can be set for
different addresses.
1) In the same way as when
connecting to an HA
system, remove the metal
plate electrical wiring
cover.
2) Cut the address jumper
(JA).
3) Cut the address jumper
(J4).
Address
JA
Address
JA
EXIST
1
CUT 2
J4
Address
J4
EXIST
1
CUT 2
125
60
83
503.5 44.5
290
52
1050
99.5
52 90 55
100
100
