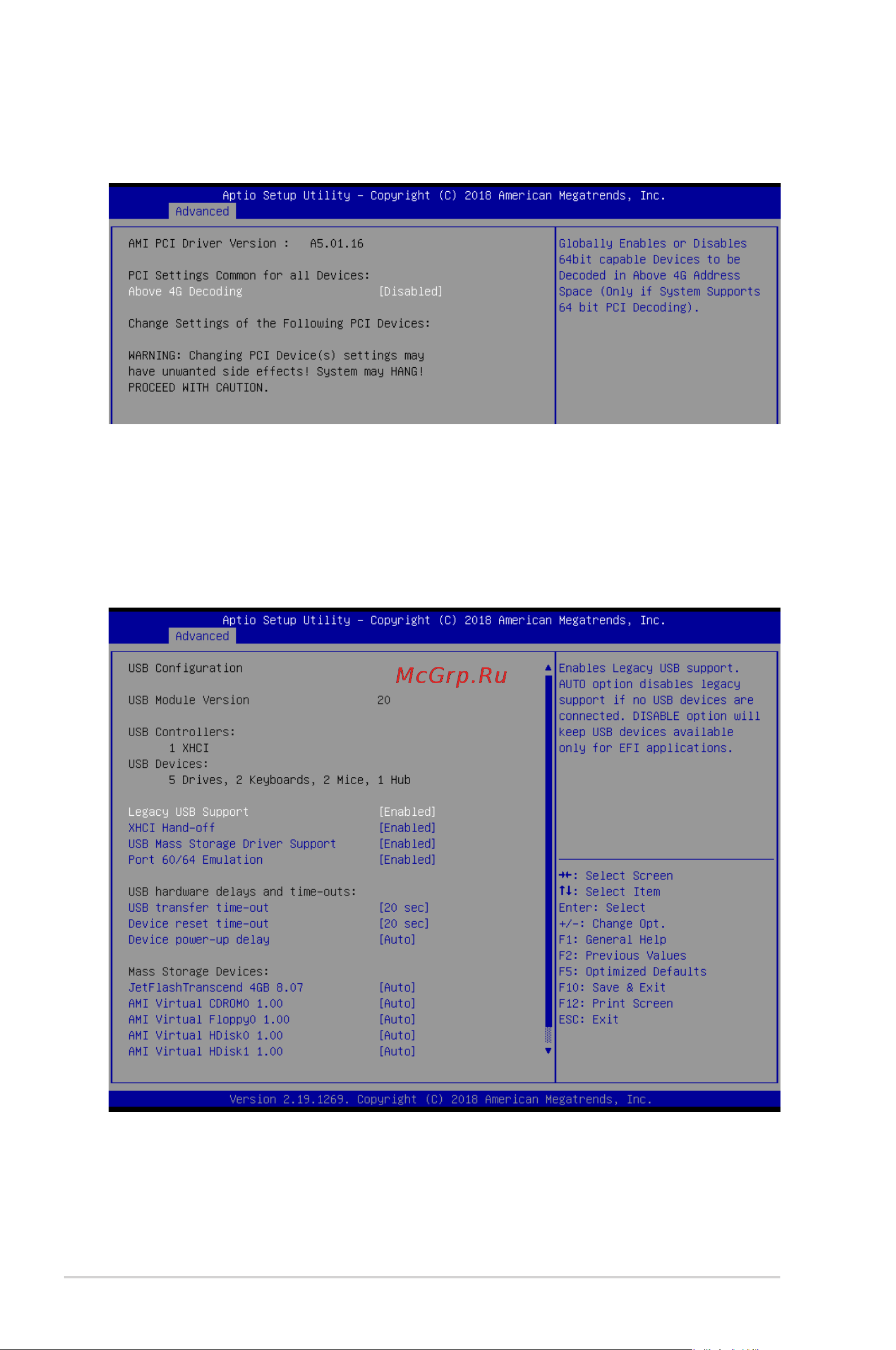

Asus RS300-E10-PS4 [100/164] Pci subsystem settings

5-20

Chapter 5: BIOS Setup

Above 4G Decoding [Disabled]

Allows you to enable or disable 64-bit capable devices to be decoded in above 4G address

space.Itonlyworksifthesystemsupports64-bitPCIdecoding.

Congurationoptions:[Disabled][Enabled]

5.4.10 PCI Subsystem Settings

AllowsyoutocongurePCI,PCI-X,andPCIExpressSettings.

5.4.11 USB Conguration
