Chapter 1: Product Introduction
1-6
1.4 Front panel features
The barebone server displays a simple yet stylish front panel with easily accessible features.
The power and reset buttons, LED indicators, slim type optical drive, and two USB ports are
located on the front panel.
Refer to the Front panel LEDs section for the LED descriptions.
1.5 Rear panel features
The rear panel includes the expansion slots, system power socket, and rear fans. The middle
part includes the I/O shield with openings for the rear panel connectors on the motherboard.

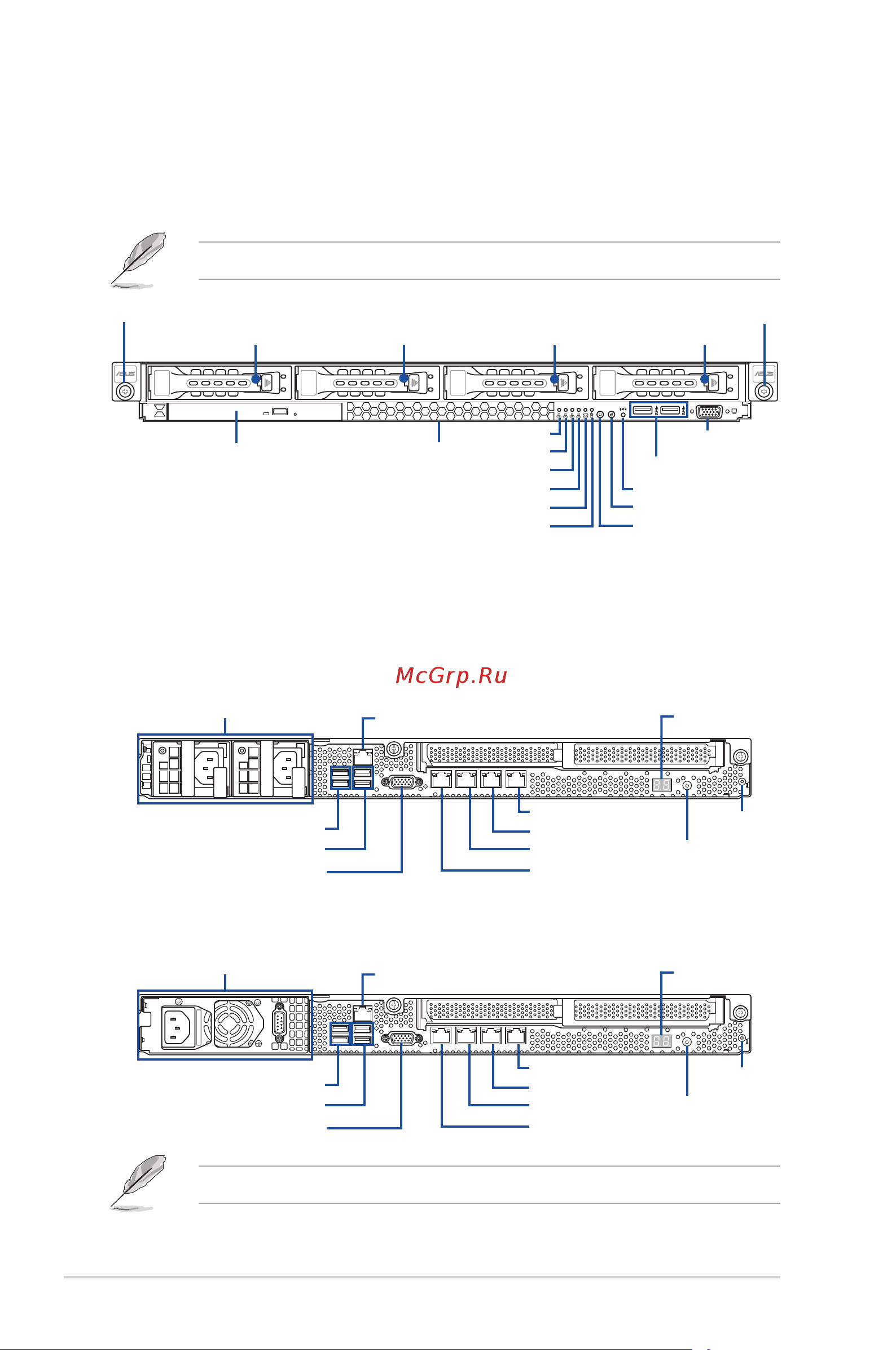

4 3 2 1
Optical drive (optional) Asset tag
Rack screw Rack screw
USB 3.0 ports
VGA port
LAN 2 LED
LAN 1 LED
LAN 4 LED
LAN 3 LED
Message LED
Power button
Location switch
Reset button
HDD LED
HDD 1
HDD 2
HDD 3 HDD 4
*This port is for ASUS ASMB9-iKVM controller card only.
RS300-E10-RS4
RS300-E10-PS4
VGA port
VGA port
USB 3.0 ports
USB 3.0 ports
USB 3.1 ports
USB 3.1 ports
LAN port for iKVM*
LAN port for iKVM*
Gigabit LAN port 3
Gigabit LAN port 3
Gigabit LAN port 4
Gigabit LAN port 4
Gigabit LAN port 1
Gigabit LAN port 1
Gigabit LAN port 2
Gigabit LAN port 2
Message LED
Message LED
Power button
Power button
Q-Code LED
Q-Code LED
Power cord connector and
Redundant power supply
Power cord connector
and power supply
