Asus RS300-E10-PS4 [124/164] View system event log

5-44

Chapter 5: BIOS Setup

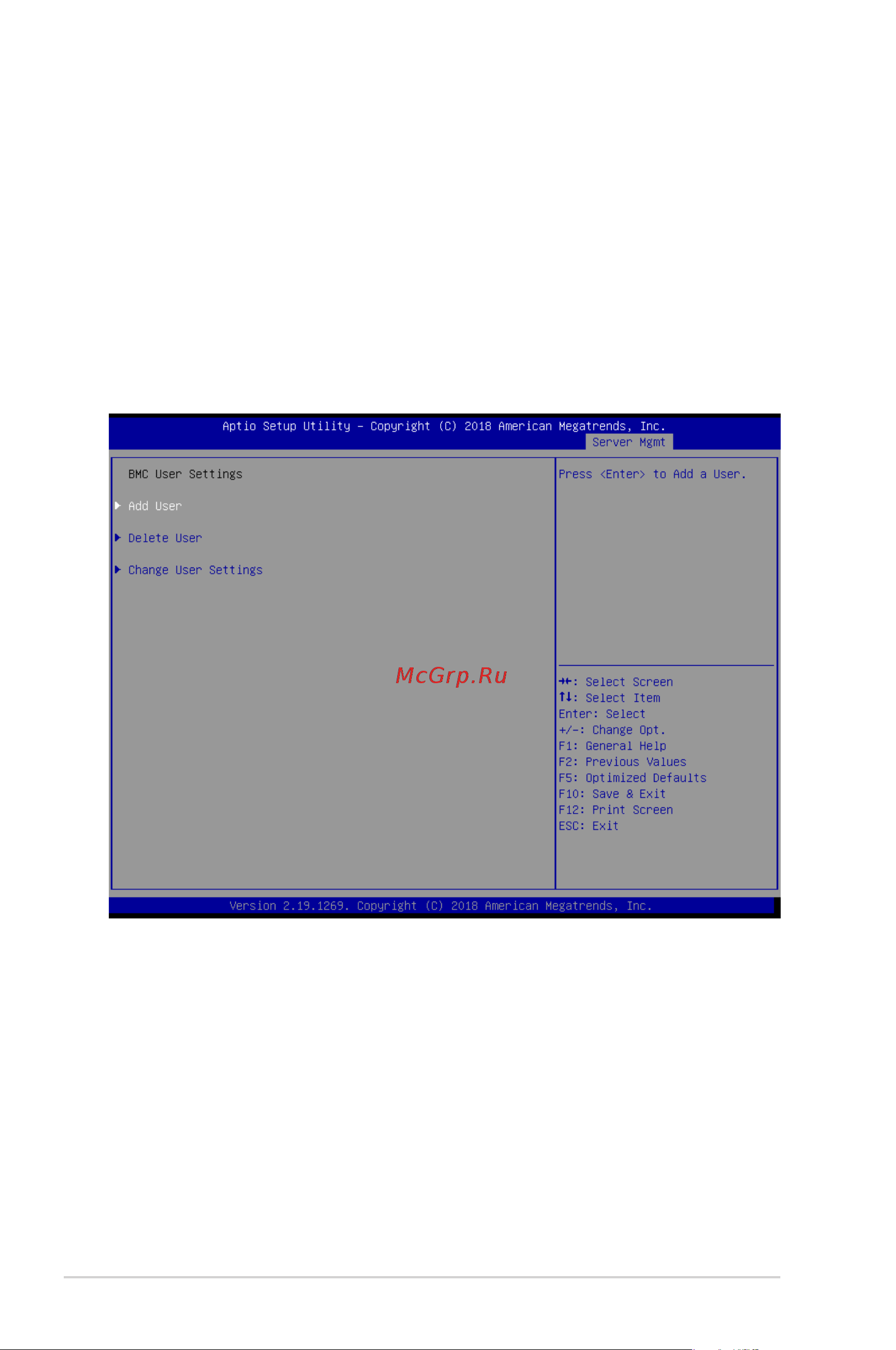

5.11.5 BMC User Settings

Thesub-itemsinthiscongurationallowyoutoadd,delete,orchangeBMCusersettings.

5.11.4 View System Event Log

This item allows you to view the system event log records.

Conguration Address source [Unspecied]

ThisitemallowsyoutocongureLANchannelparametersstatisticallyordynamically(by

BIOSorBMC).UnspeciedoptionwillnotmodifyanyBMCnetworkparametersduringBIOS

phase.

Congurationoptions:[Unspecied][Static][DynamicBmcDhcp]
