Asus RS300-E10-PS4 [115/164] Boot menu

5-35

ASUS RS300-E10 Series

Device Guard Ready

Remove ‘UEFI CA’ from DB

Remove Microsoft UEFI CA from Secure Boot DB.

Restore DB defaults

Restore DB variable to factory defaults.

Platform Key (PK) / Key Exchange Keys (KEK) / Authorized Signatures (DB)

/ Forbidden Signatures (DBX) / Authorized TimeStamps (DBT) / OsRecovery

Signatures

Congurationoptions:[Erase][SetNew][SavetoFile]

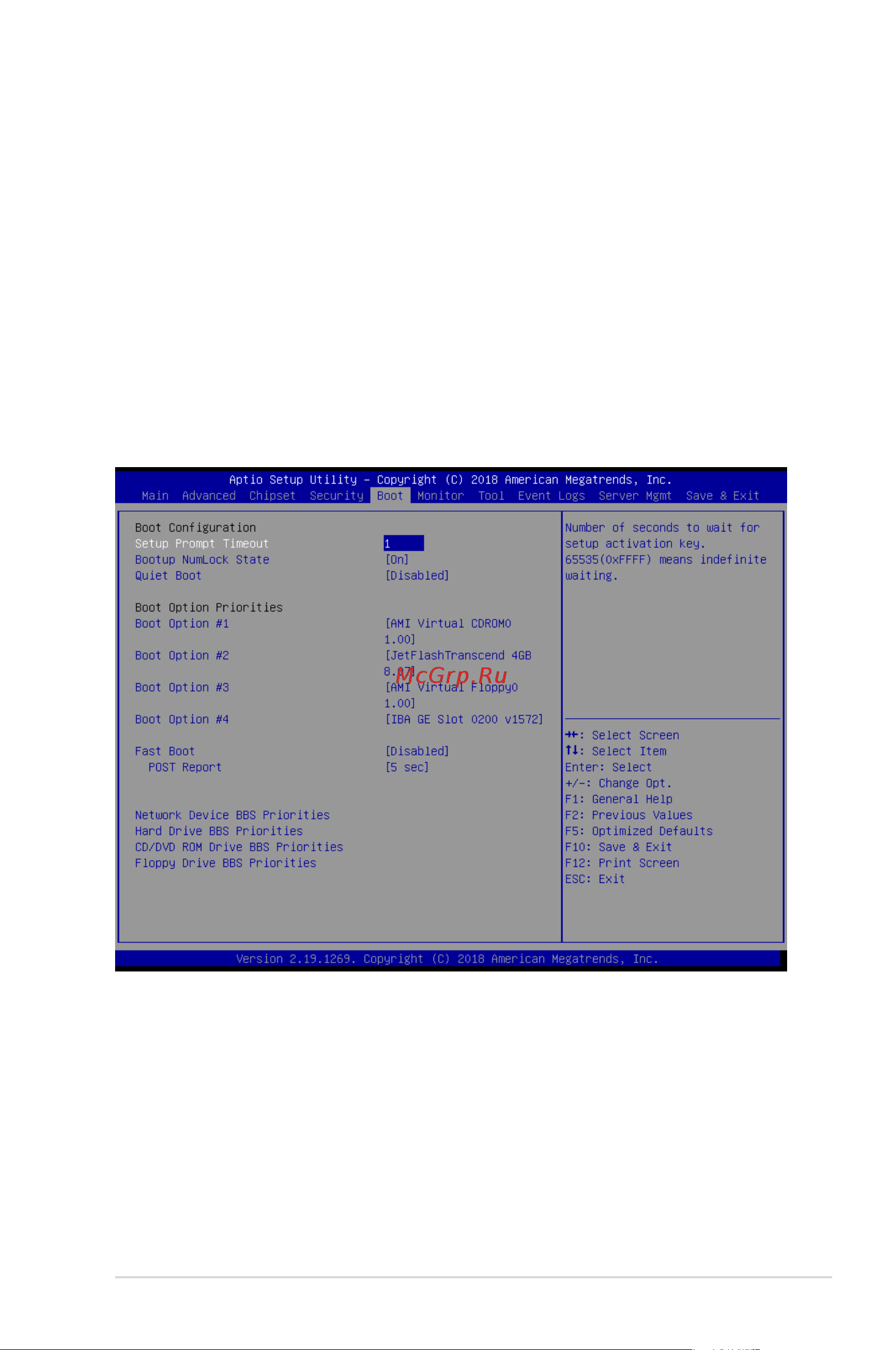

5.7 Boot menu

The Boot menu items allow you to change the system boot options.
