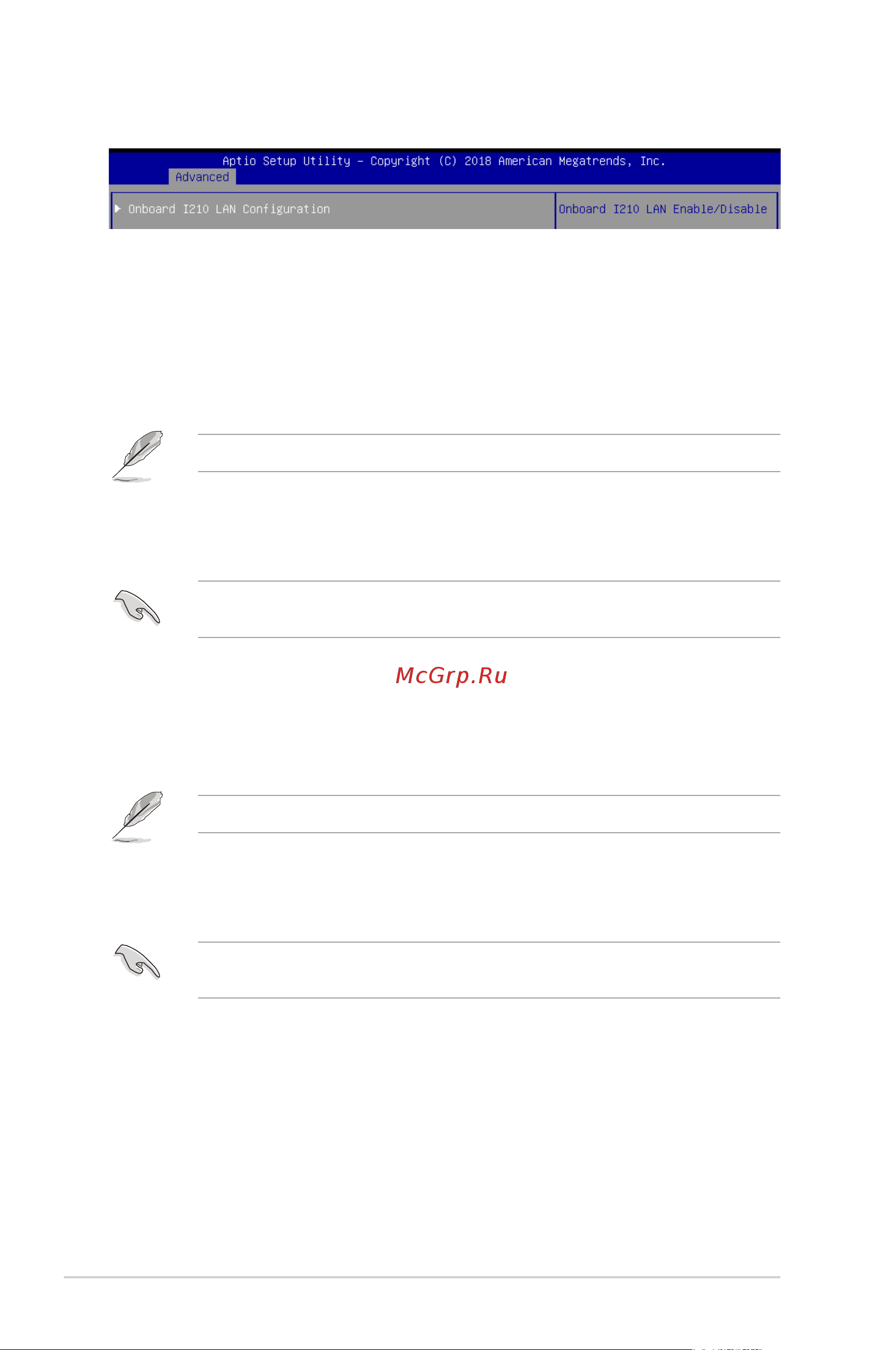

Asus RS300-E10-PS4 [96/164] Onboard i210 lan configuration
![Asus RS300-E10-PS4 [96/164] Onboard i210 lan configuration](/views2/1771505/page96/bg60.png)
5-16
Chapter 5: BIOS Setup
Onboard I210 LAN Conguration
Intel I210 LAN1
LAN Enable [Enabled]
AllowsyoutoenableordisabletheIntelLAN.
Congurationoptions:[Disabled][Enabled]
The following item appears only when you set LAN Enable to [Enabled].
Intel LAN ROM Type [PXE]
AllowsyoutoselecttheIntelLANROMtype.
Congurationoptions:[Disabled][PXE][iSCSI]
Due to Intel
®
limitations,bothIntelLANROMTypeoptionsshouldbethesamewhen[PXE]
or [iSCSI] is selected.
Intel I210 LAN2-4
LAN Enable [Enabled]
AllowsyoutoenableordisabletheIntelLAN.
Congurationoptions:[Disabled][Enabled]
The following item appears only when you set Intel LAN Enable to [Enabled].
Intel LAN ROM Type [Disabled]
AllowsyoutoselecttheIntelLANROMtype.
Congurationoptions:[Disabled][PXE][iSCSI]
Due to Intel
®
limitations,bothIntelLANROMTypeoptionsshouldbethesamewhen[PXE]
or [iSCSI] is selected.
5.4.7 Onboard LAN Conguration
