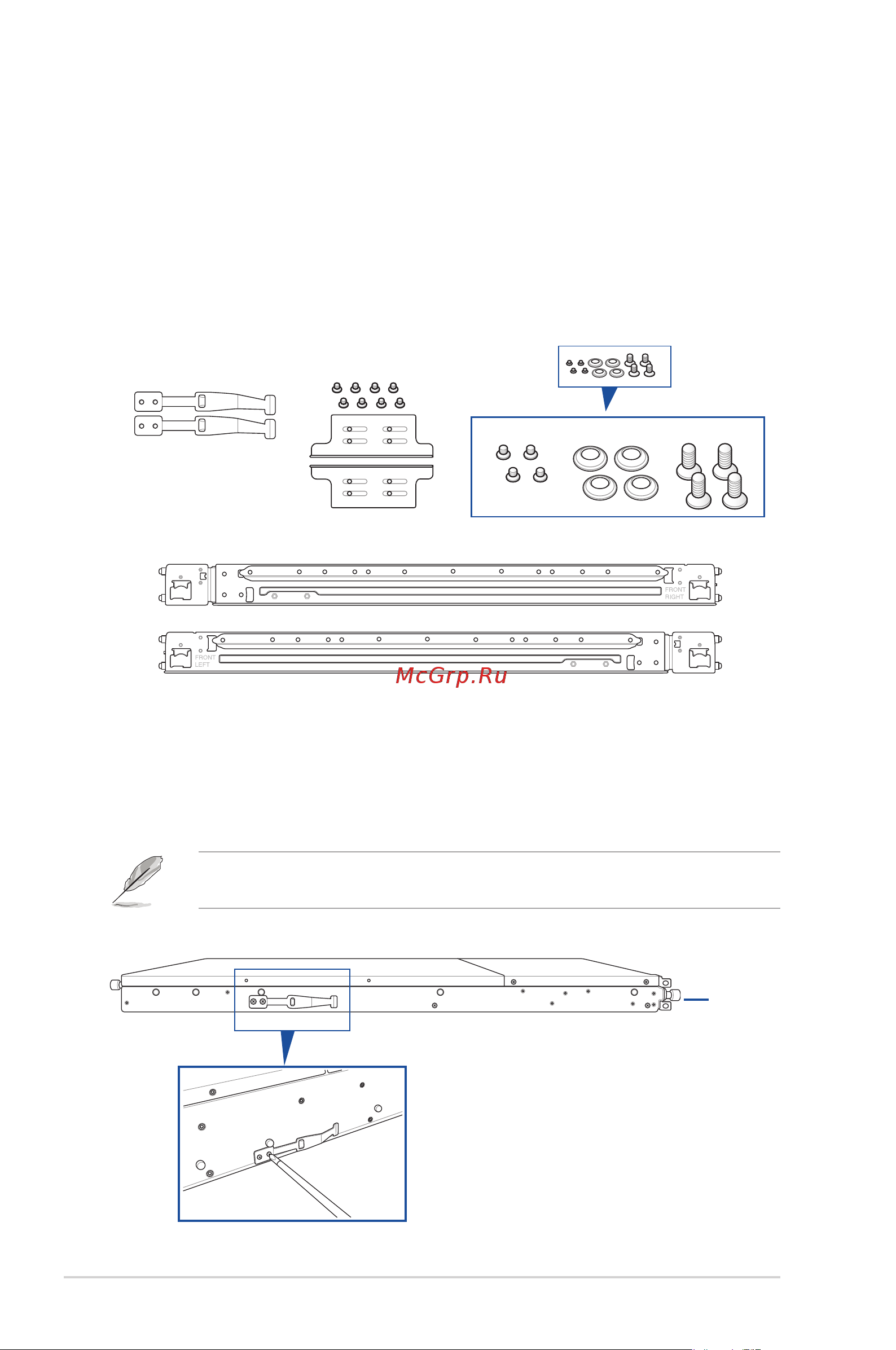

Chapter 3: Installation Options
3-2
3.1 Rail kit installation
3.1.1 Tool-less Friction Rail Kit
The tool less design of the rail kit allows you to easily install the rack rails into the server rack
without the need for additional tools. The kit also comes with a metal stopping bracket that
can be installed to provide additional support and stability to the server.
The tool-less rail kit package includes:
3.1.2 Installing the tool-less rack rail
To install the tool-less rack rails into the rack:
1. Secure the two xing latches to the two sides of the server using the set of latch
screws.
The locations of the screw holes vary with different server models. Refer to your server user
manual for details.
Fixing latches
Set of screws
Tool-less rack rail
Rail components (screws included)
Latch screws Rail Washers Rail screws
Front end
of system
