Asus RS300-E10-PS4 [65/164] Onboard leds

ASUS RS300-E10 Series

4-9

4.3 Onboard LEDs

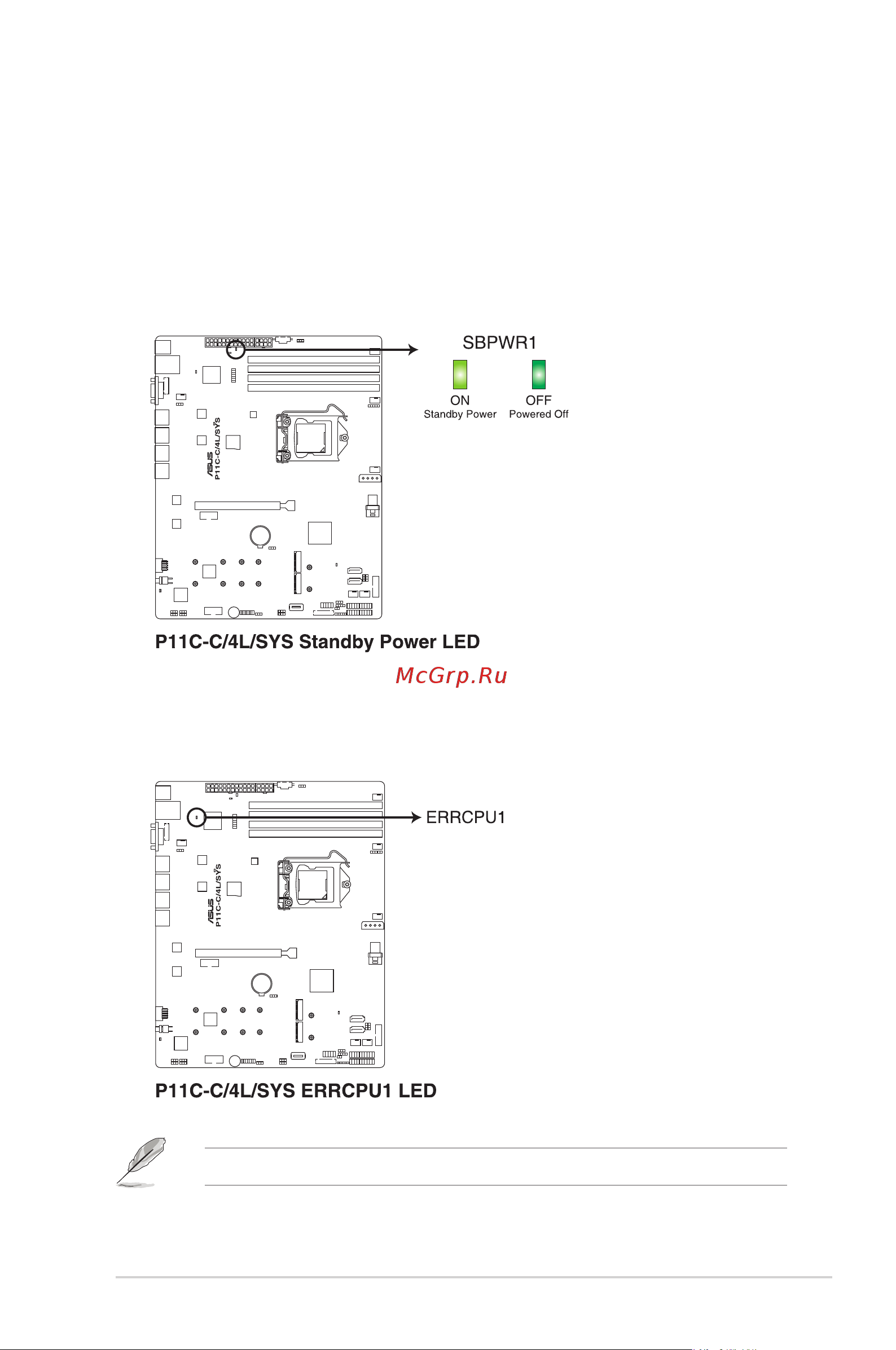

1. StandbyPowerLED(SBPWR1)

The motherboard comes with a standby power LED. The green LED lights up to

indicate that the system is ON, in sleep mode, or in soft-off mode. This is a reminder

that you should shut down the system and unplug the power cable before removing or

plugging in any motherboard component. The illustration below shows the location of

the onboard LED.

2. CPU Warning LED (ERRCPU1)

The CPU warning LED lights up to indicate that a CPU error or failure has occurred.

The warning LED functions only when you install the ASUS ASMB9 management card.
