Chapter 4: Motherboard Information

4-10

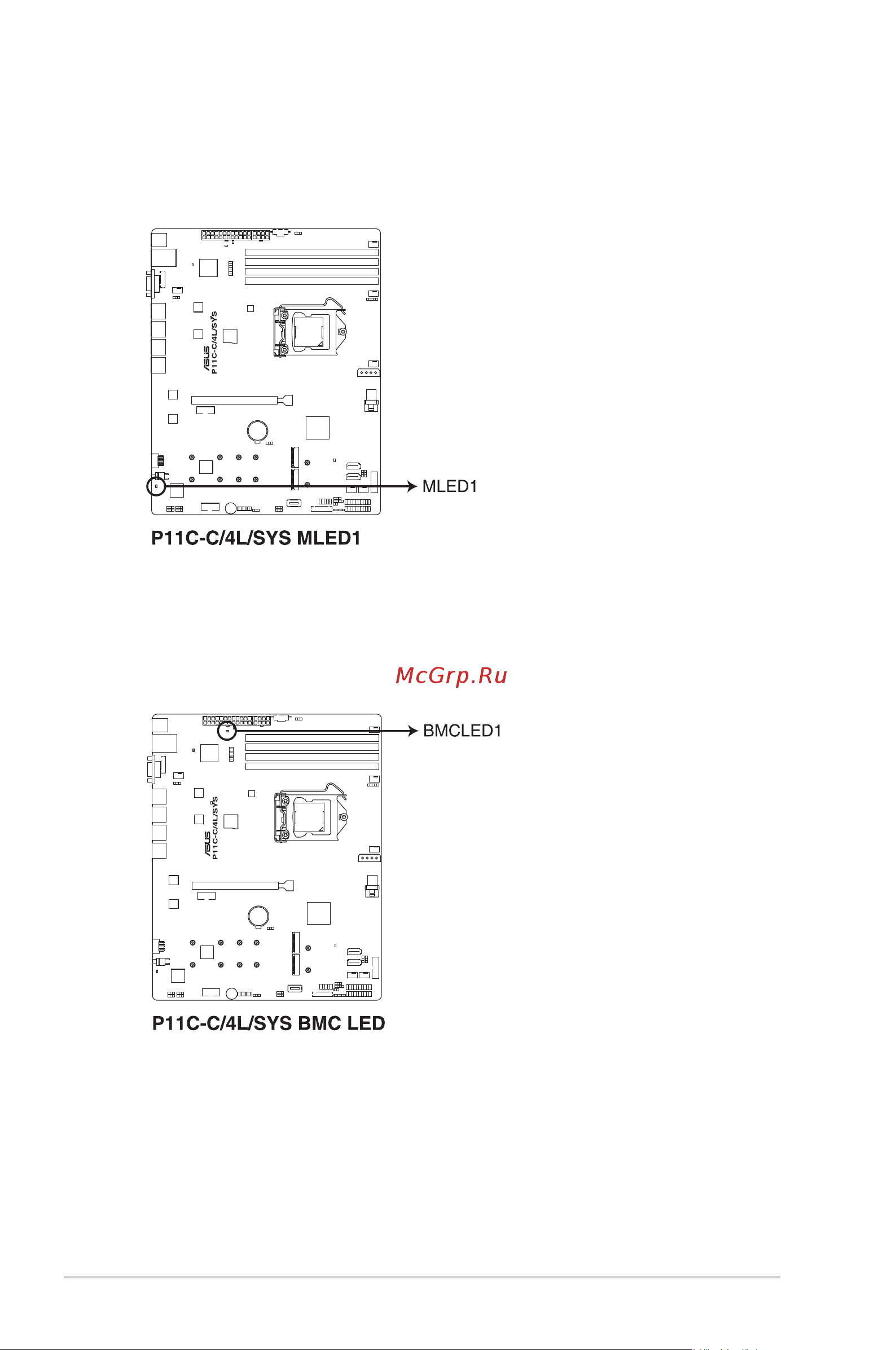

4. BMCLED(BMCLED1)

The BMC LED lights up to indicate that the on-board BMC is functional.

3. Message LED (MLED1)

This onboard LED lights up to red when there is a BMC event log is generated.
