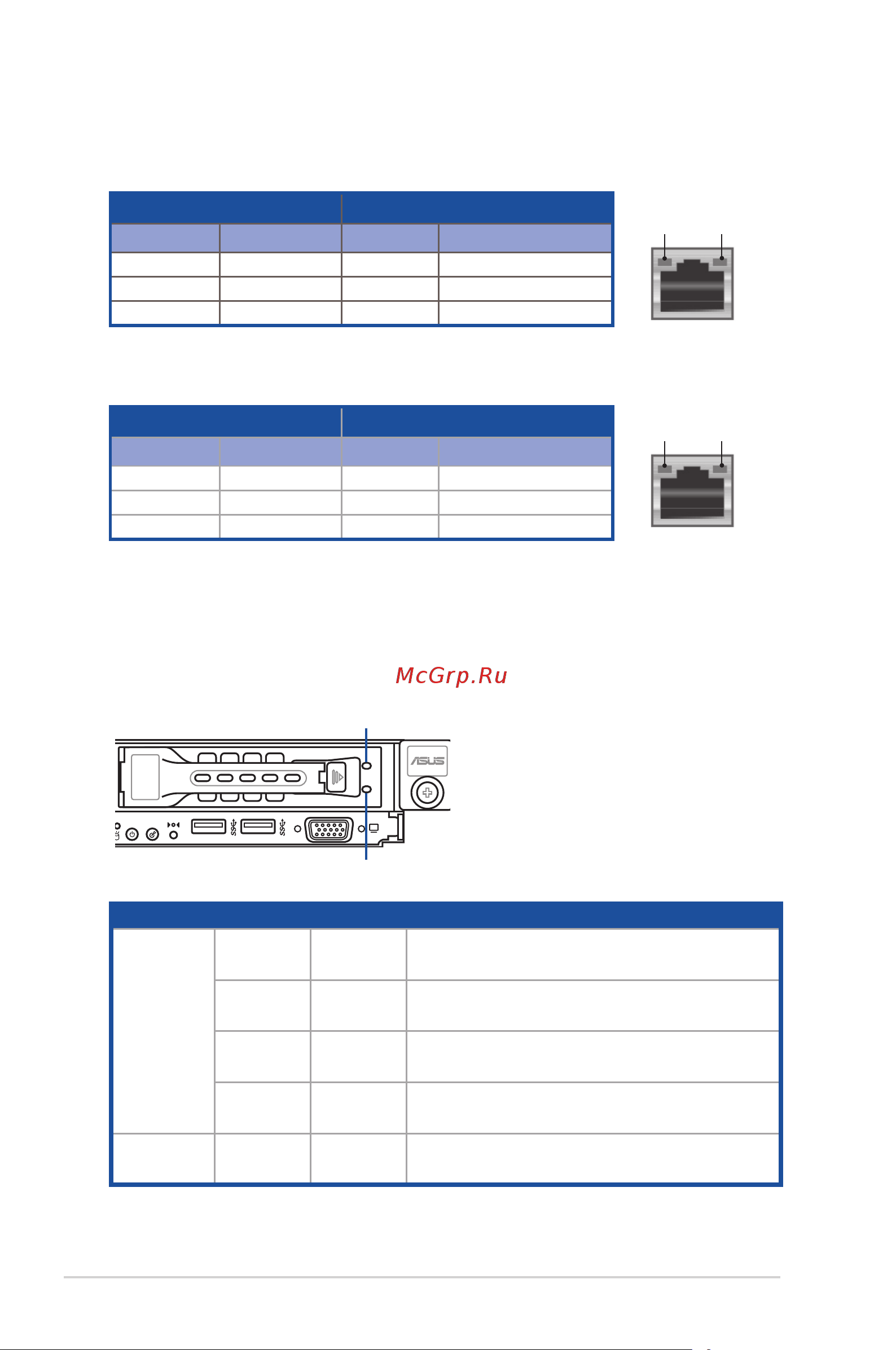

Chapter 1: Product Introduction
1-10
1.7.3 HDD status LED
4 3 2 1
HDD status LED
SATA/SAS HDD LED Description
HDD Status
LED
GREEN ON SATA/SAS HDD power ON
RED ON
HDD has failed and should be swapped
immediately
GREEN/
RED
Blinking RAID rebuilding
GREEN/
RED
OFF HDD not found
HDD Activity
LED
GREEN Blinking Read/write data from/into the SATA/SAS HDD
HDD Activity LED
1.7.2 LAN (RJ-45) LEDs
LAN port LED indications
LAN port
SPEED
LED
ACT/LINK
LED
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
GREEN Linked YELLOW 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
Dedicated Management LAN port (DM_LAN1) LED indications
DM LAN port
Activity/Link LED Speed LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
YELLOW Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
SPEED
LED
ACT/LINK
LED
