Asus RS300-E10-PS4 [105/164] Tls auth configuration

5-25

ASUS RS300-E10 Series

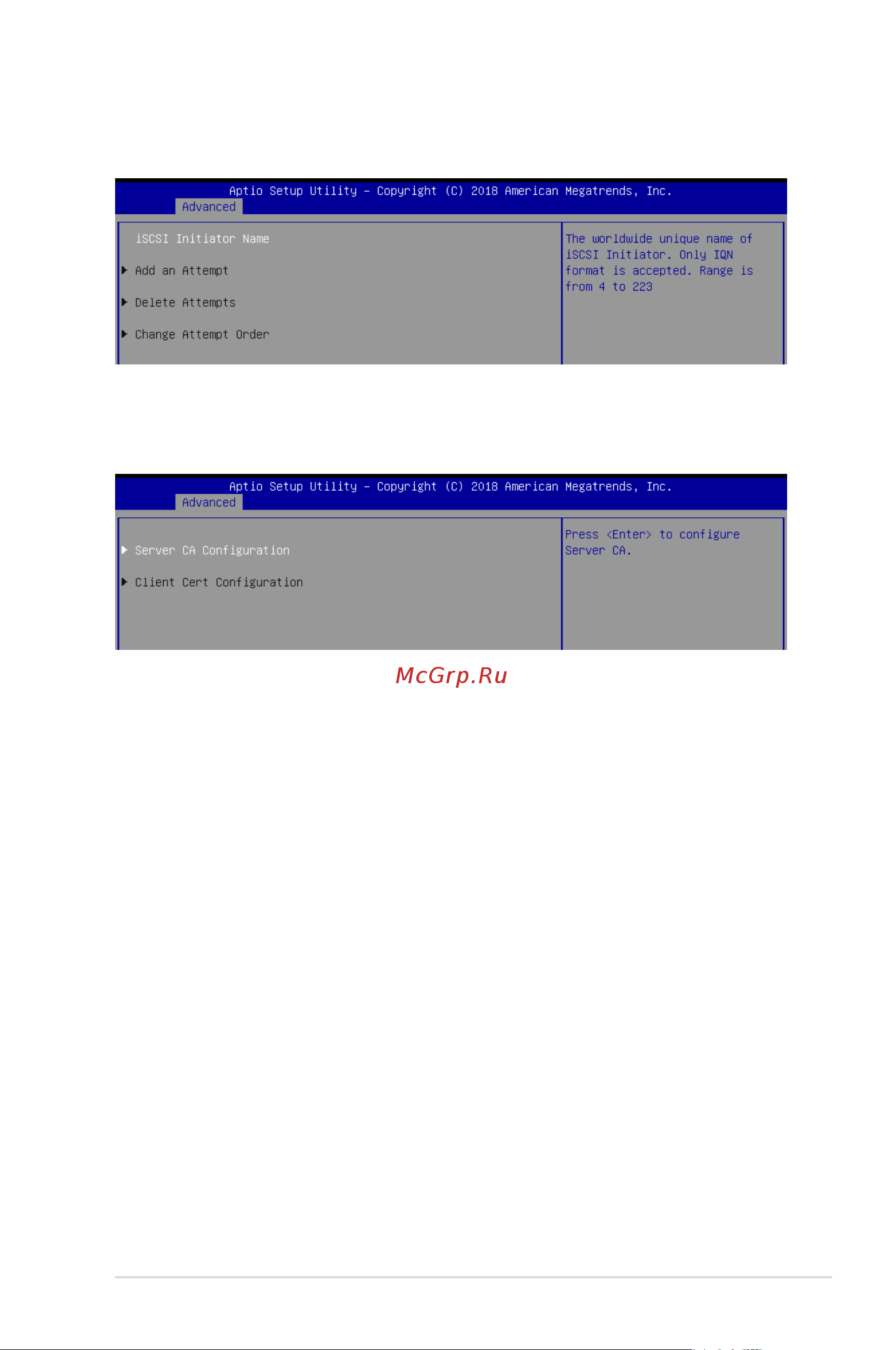

5.4.16 iSCSI Conguration

AllowsyoutoconguretheiSCSiparameters.

5.4.17 Tls Auth Conguration

AllowsyoutoconguretheTlsAuth.
