5-11
ASUS RS300-E10 Series

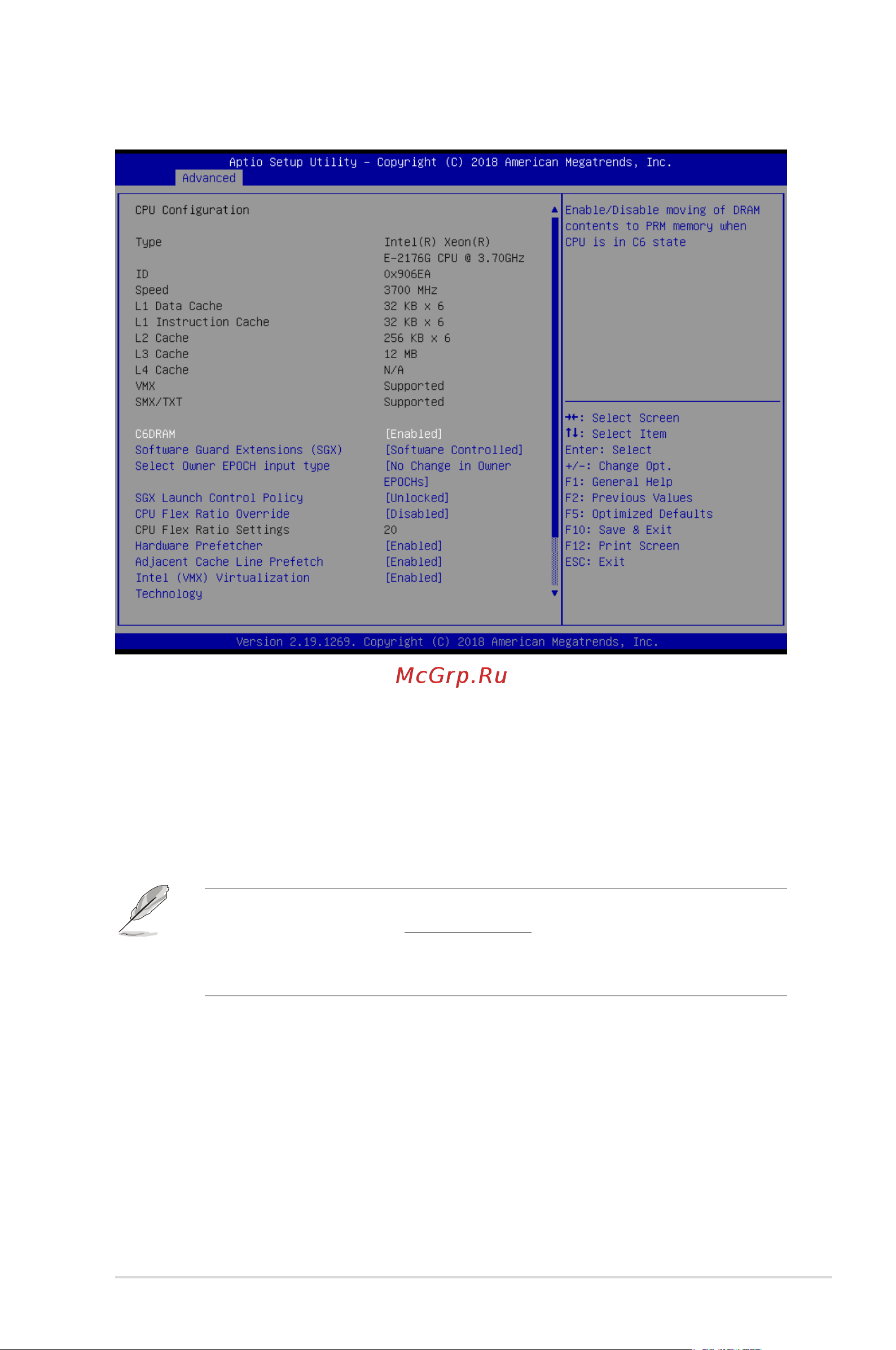

5.4.1 CPU Conguration
C6DRAM [Enabled]
Allows you to enable or disable moving of DRAM contents to PRM memory when the CPU is
in C6 state.
Congurationoptions:[Disabled][Enabled]
Software Guard Extensions (SGX) [Software Controlled]
Allows you to select the behavior of Software Guard Extensions (SGX).
Congurationoptions:[SoftwareControlled][Disabled][Enabled]
• IntelSGXsupportisonlyavailableoncertainCPUs,suchasE-2186G,E-2174G,and
E-2176G. Please refer to https://ark.intel.com/ for more details.
• The following item appears only when you set Software Guard Extensions (SGX) to
[Enabled] or [Software Controlled].
Select Owner EPOCH input type [No change in Owner EPOCHs]
Allows you to select the behavior of EPOCH input type.
Congurationoptions:[NochangeinOwnerEPOCHs][ChangetoNewRandom
EPOCHs][ManualUserDenedOwnerEPOCHs]
SGX Launch Control Policy [Unlocked]s]
AllowsyoutoselectthebehaviorofSGXLaunchControlPolicy.
Congurationoptions:[IntelLocked][Unlocked][Locked]
