Chapter 4: Motherboard Information

4-8

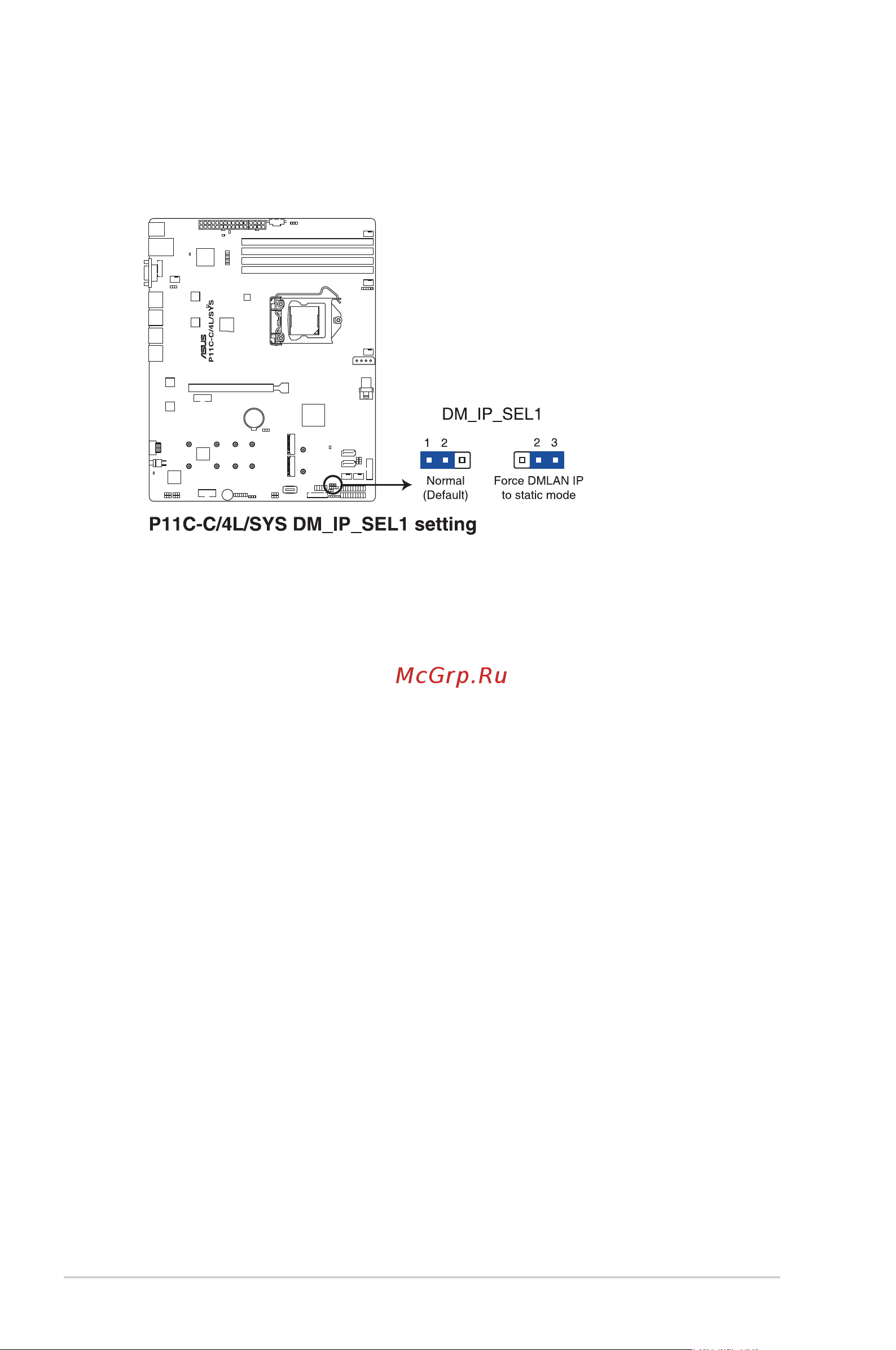

8. DMLAN setting (3-pin DM_IP_SEL1)

This jumper allows you to select the DMLAN setting. Set to pins 2-3 to force the

DMLAN IP to static mode (IP=10.10.10.10, submask=255.255.255.0).
