ASUS RS300-E10 Series

4-7

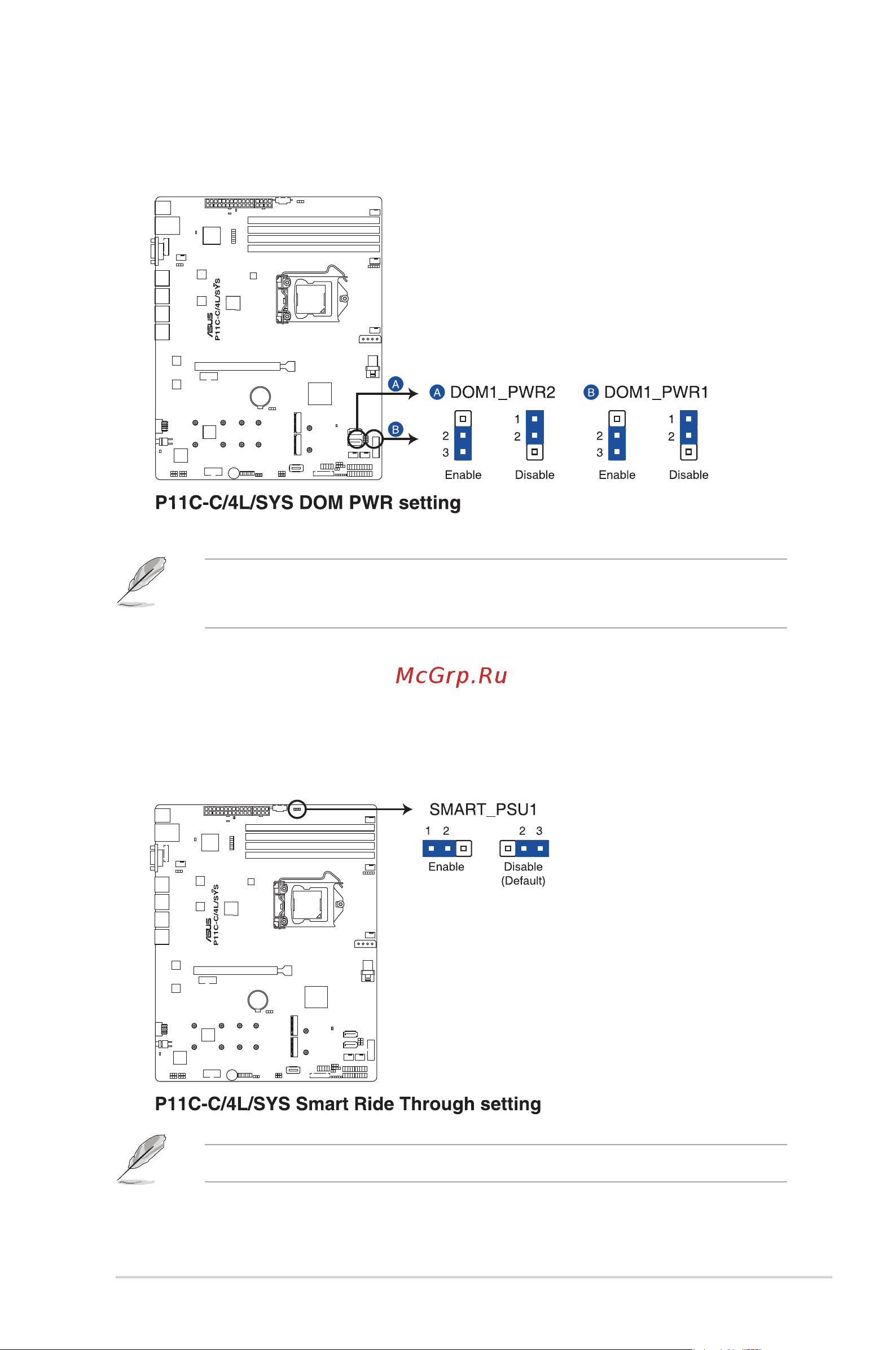

7. Smart Ride Through (SmaRT) setting (3-pin SMART_PSU1)

This jumper allows you to enable or disable the Smart Ride Through (SmaRT) function.

This feature is disabled by default. Set to pins 1-2 to enable it. When enabled, SmaRT

allows uninterrupted operation of the system during an AC loss event.

6. SATADOMpowersetting(3-pinDOM1_PWR1,DOM1_PWR2)

This jumper allows you to congure the DOM power setting.

• DOM1_PWR1 corresponds to the SATA5 connector.

• DOM1_PWR2 corresponds to the SATA6 connector.

This jumper functions only when you install the ASUS ASMB9 management card.
