Chapter 4: Motherboard Information

4-6

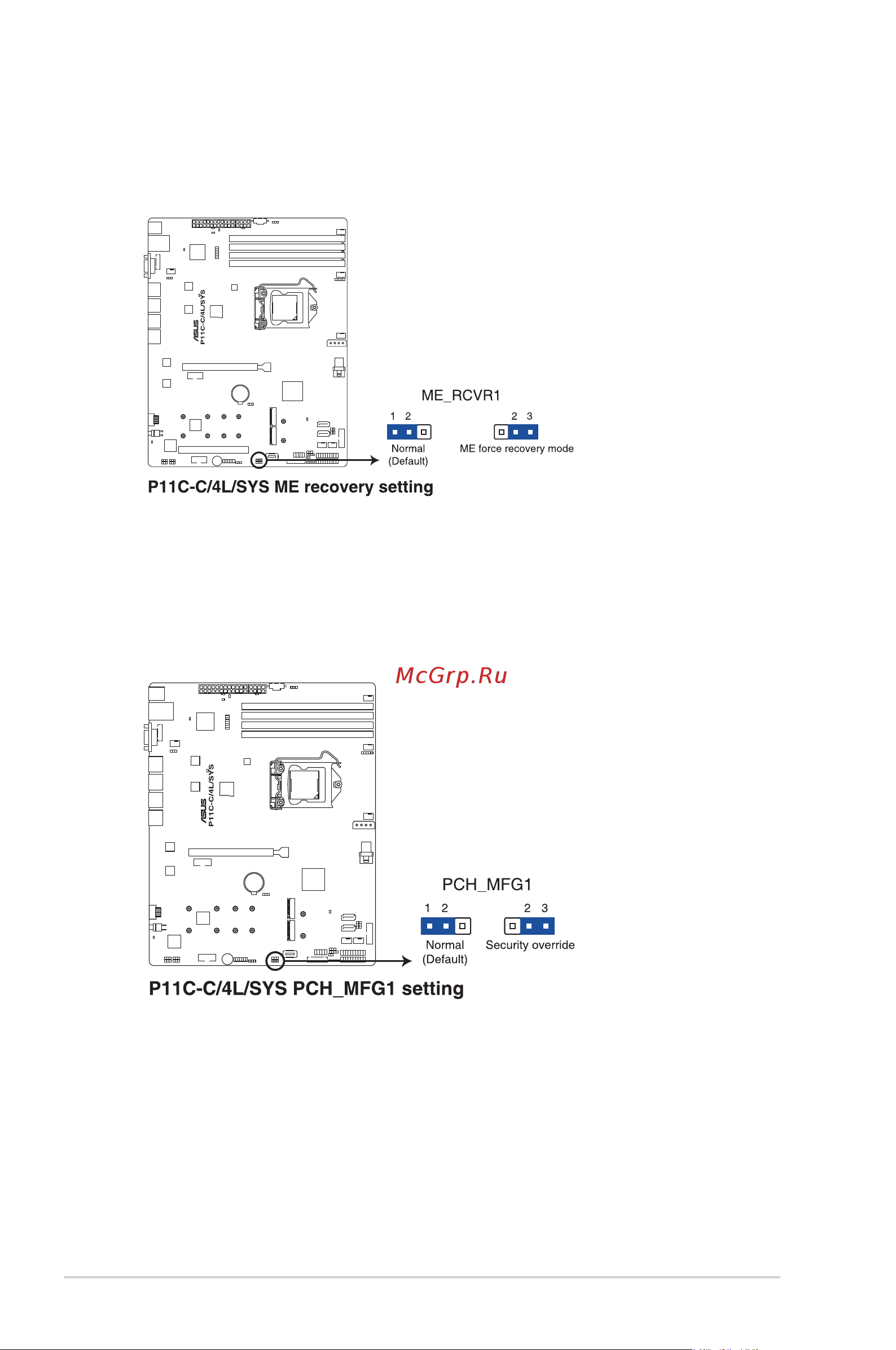

4. MErmwareforcerecoverysetting(3-pinME_RCVR1)

This jumper allows you to force Intel

Management Engine (ME) boot from recovery

mode when ME becomes corrupted.

5. PCH_MFG1 setting (3-pin PCH_MFG1)

This jumper allows you to update the BIOS ME block.
