ASUS RS300-E10 Series

4-5

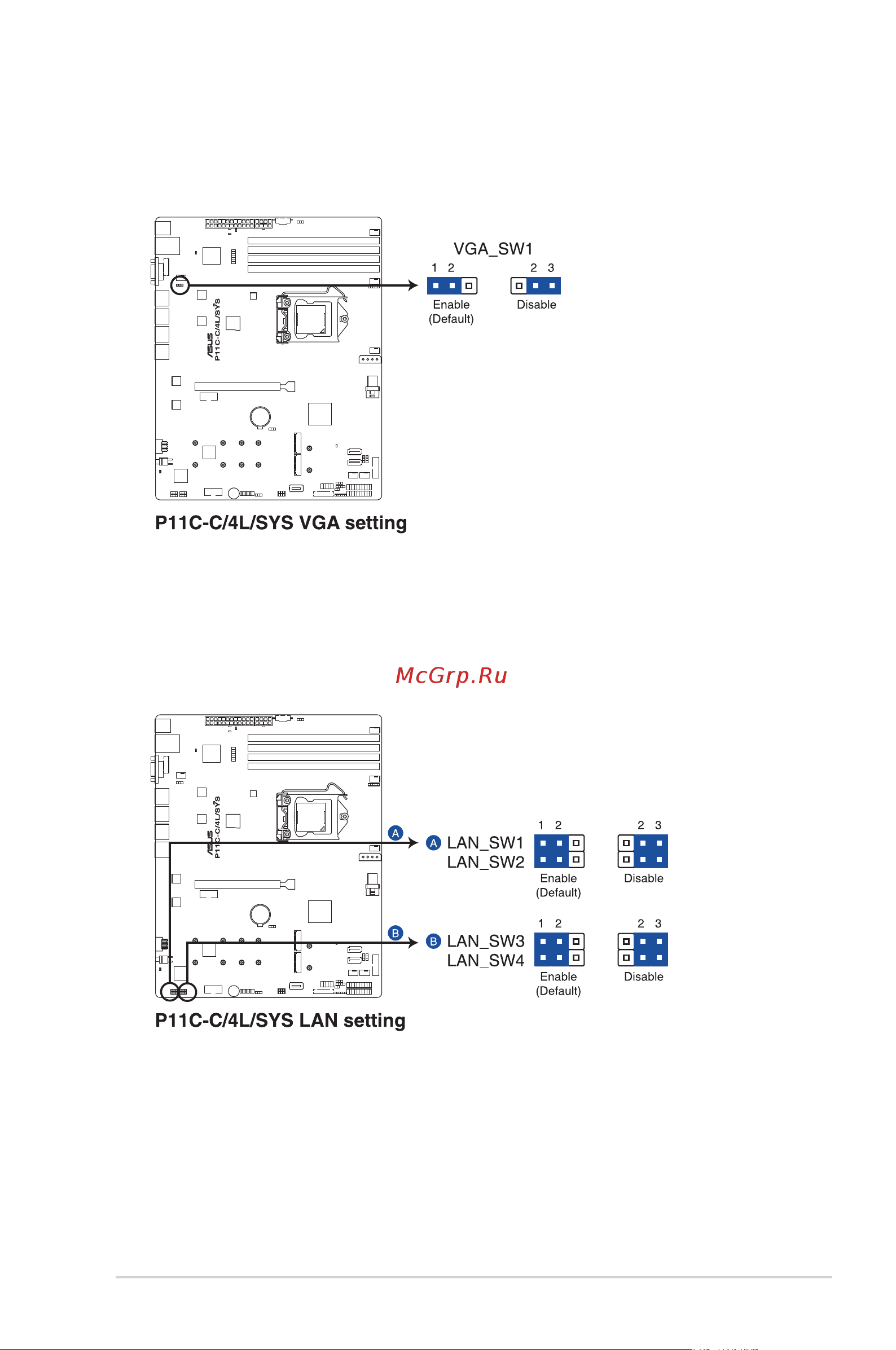

2. VGA controller setting (3-pin VGA_SW1)

This jumper allows you to enable or disable the onboard VGA controller. Set to pins 1–2

to activate the VGA feature.

3. LAN controller setting (3-pin LAN_SW1-4)

These jumpers allow you to enable or disable the onboard LAN_SW1-4. Set to pins 1-2

to activate the Gigabit LAN feature.
