2-7

ASUS RS300-E10 Series

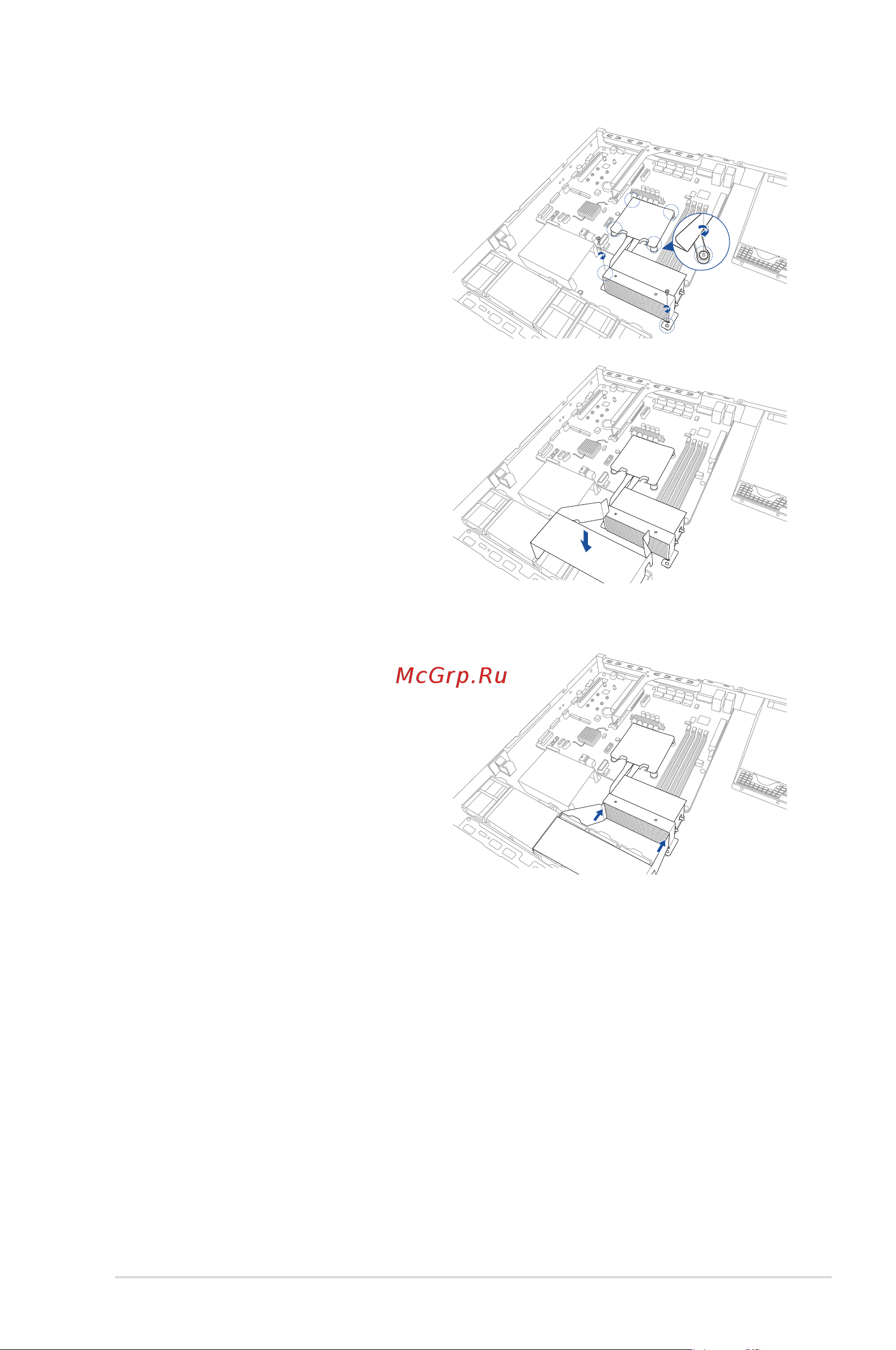

4. Secure the heat pipe and air duct to

the server with two screws.

5. Insert the system fan mylar into the

system fan, as shown in the right

gure.

6. Insert the two tips of the system

fan mylar into the CPU heatsink, as

shown in the right gure.
