Chapter 2: Hardware Information

2-16

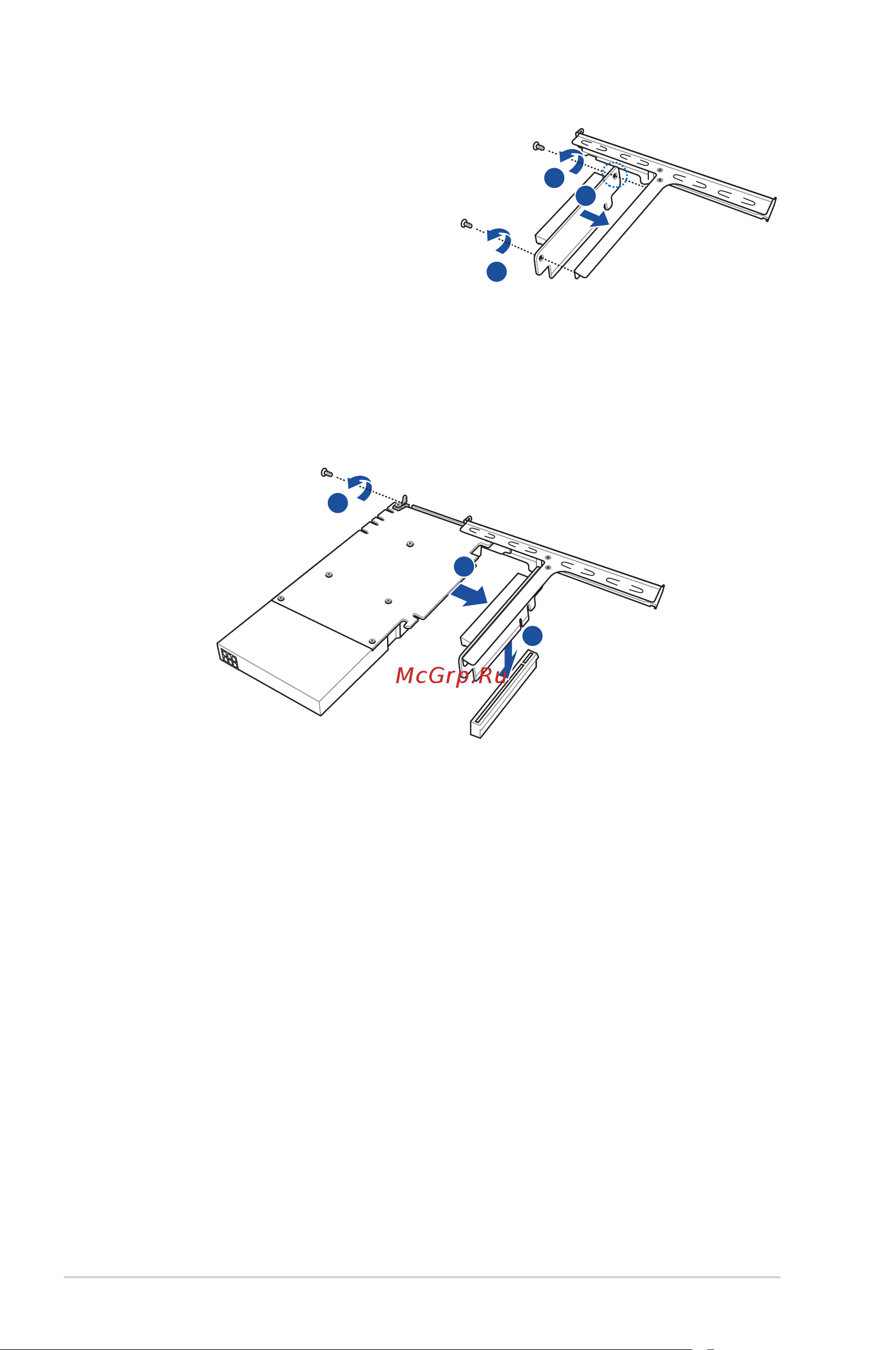

5. Align and install the single PCIE slot

PCB into the riser card bracket.

6. Secure the single PCIE slot PCB to

the riser card bracket with the screws

removed earlier.

7. Install a GPU card to the bracket as shown.

8. Secure the GPU card with a screw.

9. Install the riser card bracket and GPU card assembly back into the PCI Express x16

slot on the motherboard.
