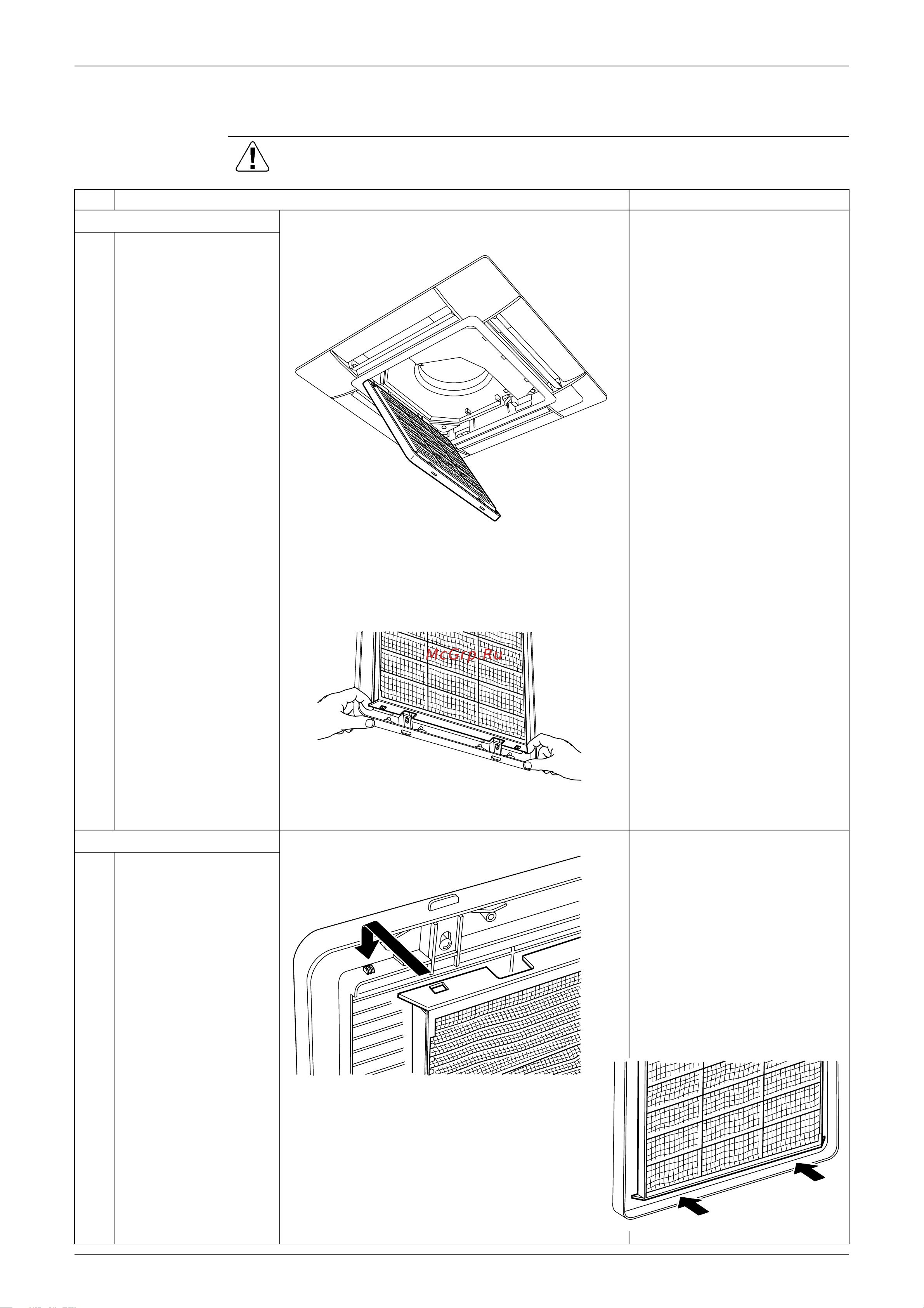

Si21-205A FFQ25/35/50/60BV1B
Removal Procedure 231
1.2 Removal of Air Filter
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1. Removing the air filter
1
Open the suction grille.
(See the "Removal of
Suction Grille".)
2
Disengage the hooks of
the air filter by pulling
the filter downward at
an angle, and remove
the filter.
2. Installation of the air filter
1
Hook the air filter to the
protrusions located at
the top of the suction
grille.
2
Push the lower section
of the air filter into the
protrusions located at
the bottom of the
suction grille to secure
the air filter in place.
(S2632)
(S2633)
(S2634)
(S2635)
