FFQ25/35/50/60BV1B Si21-205A
242 Removal Procedure

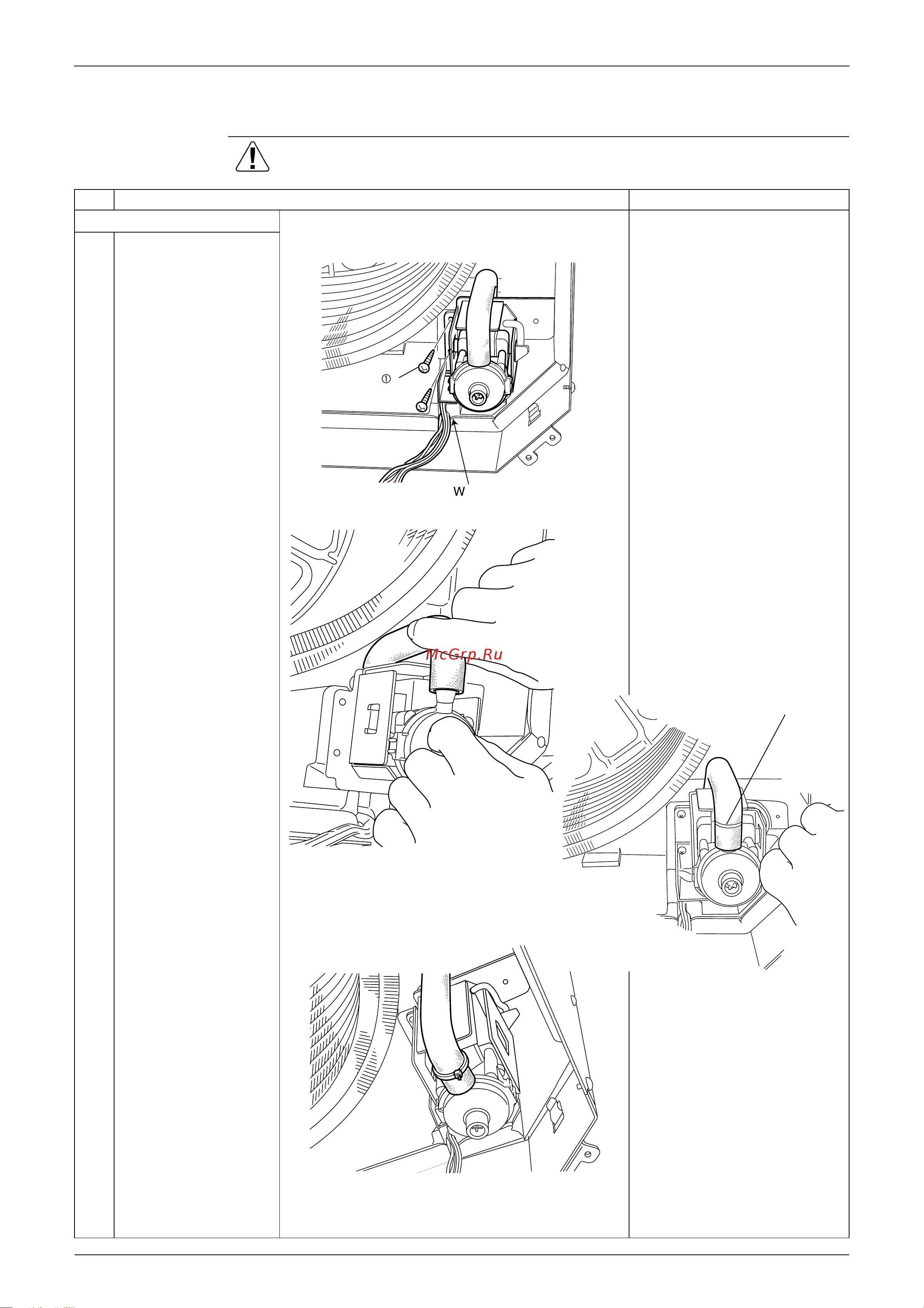

1.10 Installation of Drain Pump
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1. Installing the drain pump
1
Put the lead wire in the
wiring groove properly,
fix the drain pump ass'y
with screw
and insert
the drain hose.
2
Insert the drain hose
into the hose plug of the
drain pump up to the
root of plug securely.
Inserting the drain hose
should be executed before
installation of float switch in
order to prevent the float
switch from damage.
Put the tie wrap on the white
line on the hose inserted.
When inserting the drain
hose, be sure to wear safety
gloves to prevent your finger
from injury with heat
exchanger fin.
3
Put the tie wrap on the
hose.
Screw
Wiring groove
(S2665)
(S2666)
(S2668)
White line
(S2667)
