Si21-205A FFQ25/35/50/60BV1B
Removal Procedure 239

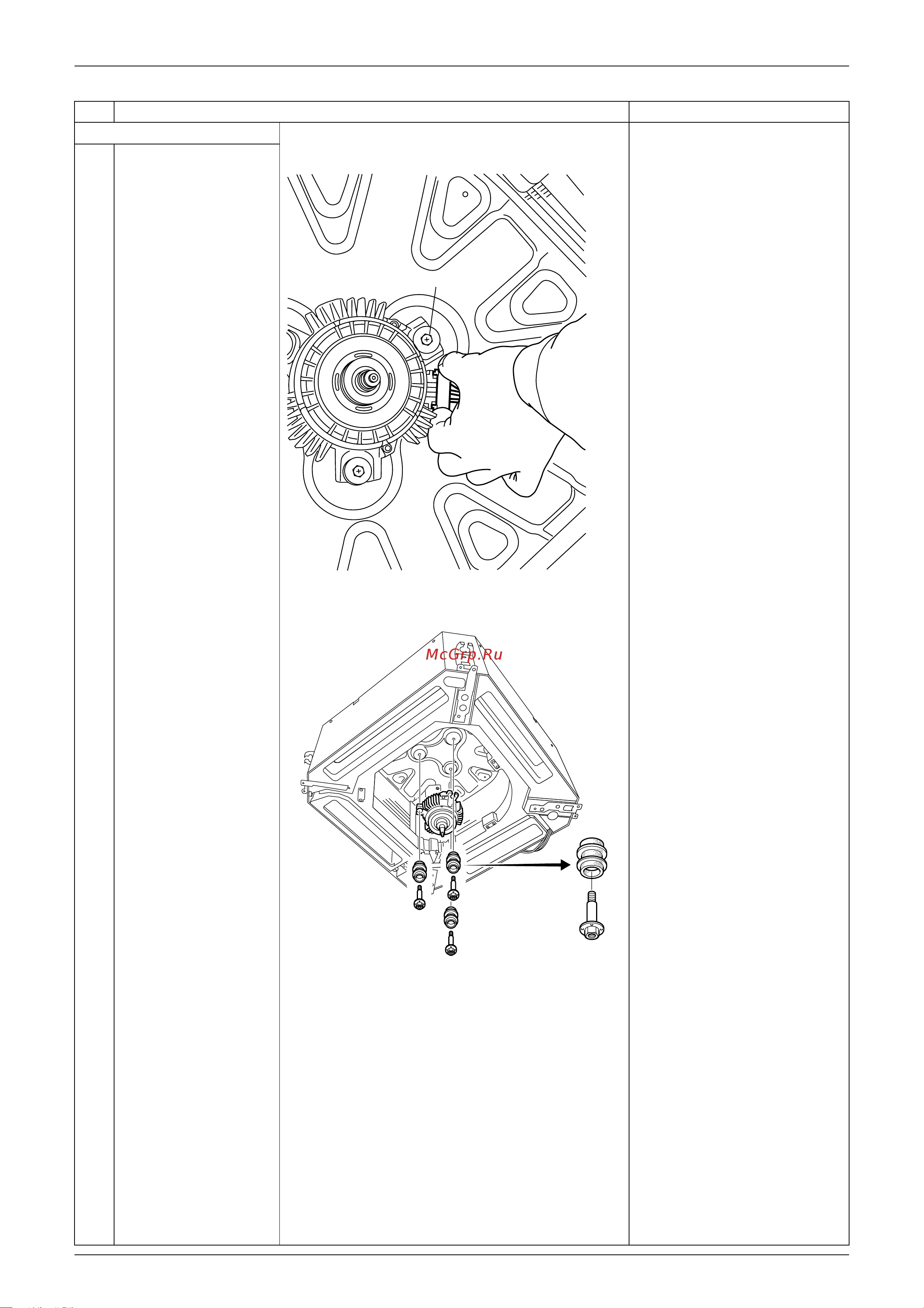

2. Removing the fan motor
1
Disconnect the harness
connector for motor
from the motor.
2
Remove the three
washer faced bolts.
3
Pull down the fan motor
slowly.
Step
Procedure Points
Washer faced bolt
(S2656)
(S2657)
