FFQ25/35/50/60BV1B Si21-205A
234 Removal Procedure
1.4 Removal of Horizontal Vane
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1
Removing the
decoration panel
Refer to the
"Removal of
Decoration Panel"
2
Remove the padding at
four corners of frame
fixed with three screws
each. At that time, peel
the end of black sealing
material of discharge
port in part.
Peel not the anti-sweat
material but only sealing
material of discharge port.
Note) When restore the
sealing material of
discharge port, be
careful that no
clearance exists
between padding and
sealing material as
original installation.
(Otherwise, due
dripping may occur due
to leakage of cool air.)

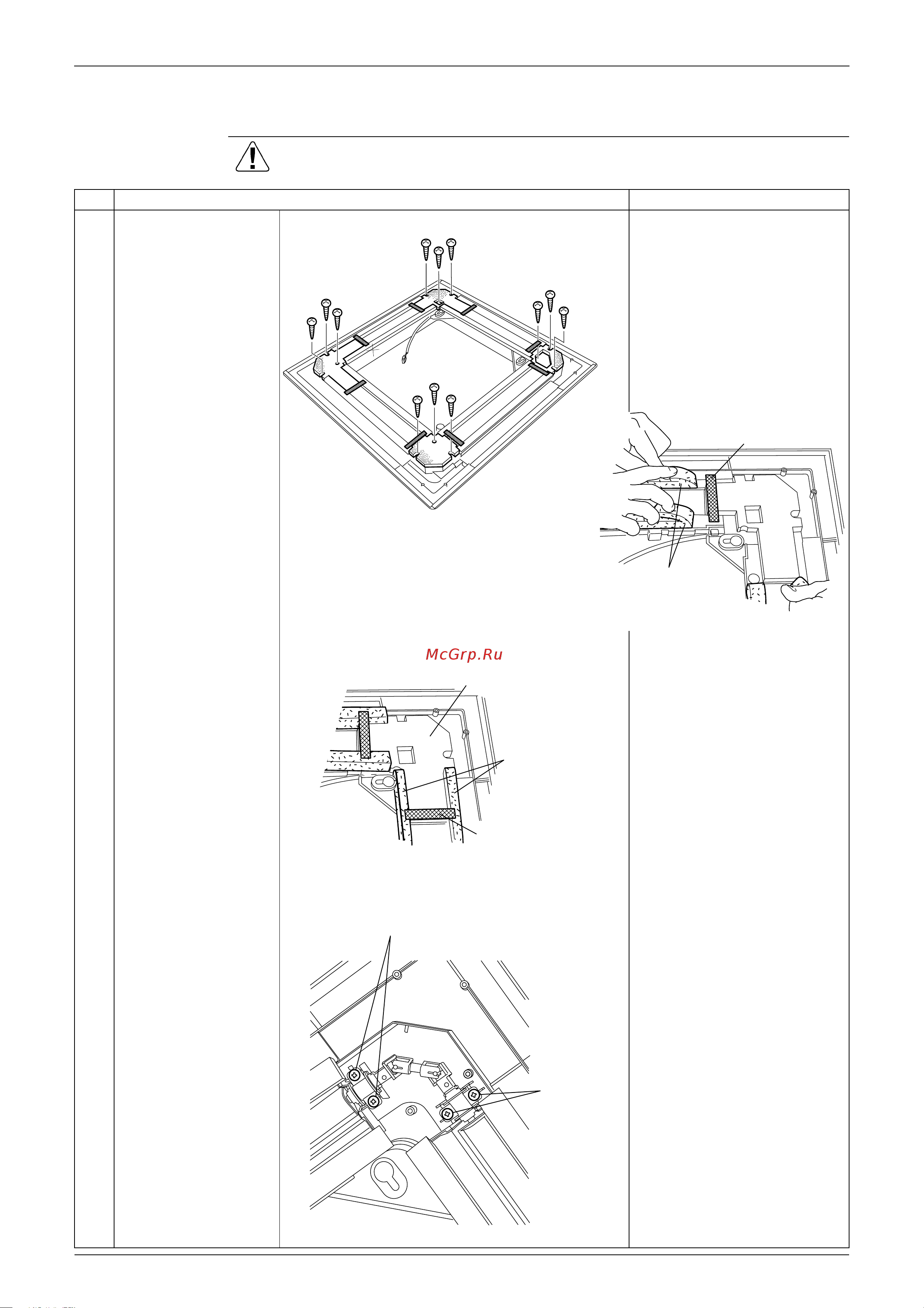

3
Remove the two screws
for each bearing of
horizontal vane (16
screws in total).
(S2642)
(S2643)
Anti-sweat material
Sealing material
of discharge port
(S2644)
Padding
Sealing material
of discharge port
Anti-sweat material
Fixing screws
Fixing
screws
(S2645)
