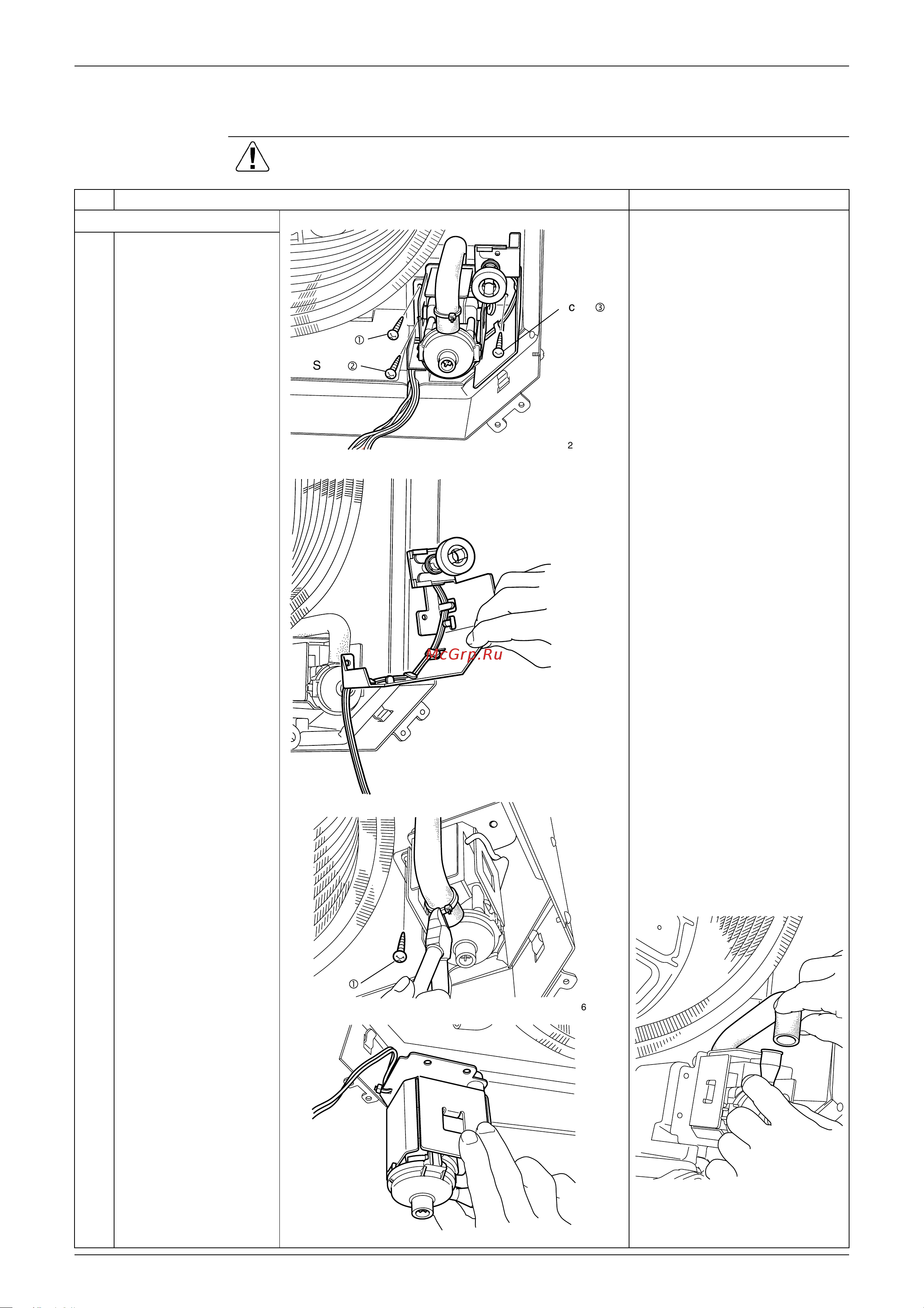

Si21-205A FFQ25/35/50/60BV1B
Removal Procedure 241
1.9 Removal of Drain Pump
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1. Removing the drain pump
1
Remove two screws
fixing float switch ass'y.
(Screw
and
)
2
Remove the float switch
ass'y.
Remove the float switch
before removing drain pump
in order to prevent the float
switch from damage.
3
Cut the tie wrap fixing
the drain hose.
Remove the screw
When pulling out the drain
hose, be sure to wear safety
gloves to prevent your finger
from injury with heat
exchanger fin.
4
Pull out the drain hose.
5
Remove the drain
pump.
Screw
Screw
Screw
(S2660)
(S2661)
Screw
(S2662)
(S2664)
(S2663)
