FHQ35/50/60BUV1B Si21-205A
262 Removal Procedure

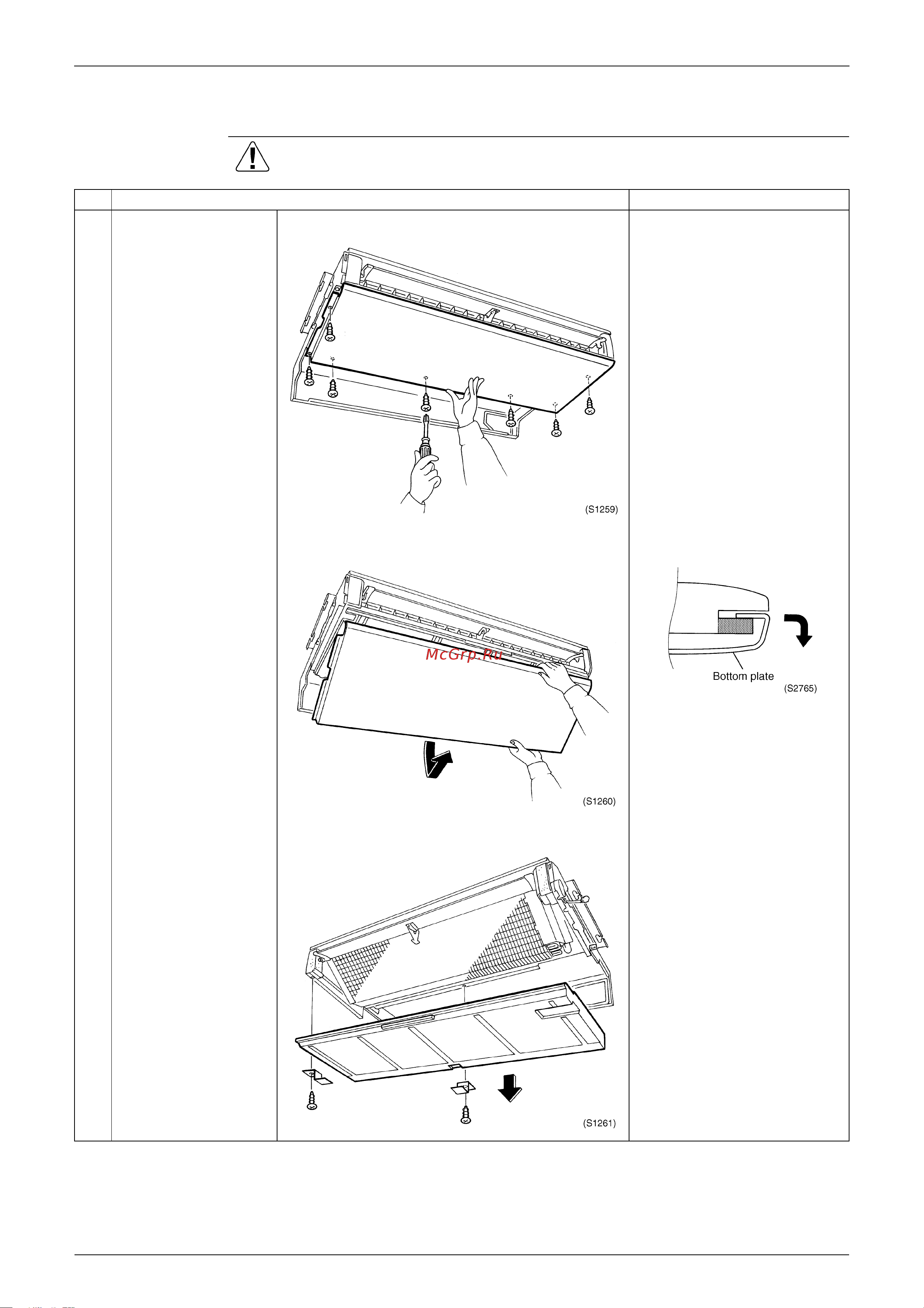

2.6 Removal of Bottom Panel and Drain Pan
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1
Remove the 7 bottom
panel installation
screws (2 each on the
left and right, 3 in the
rear), and remove the
bottom panel.
Remove the rear surface screws
(2 each on the left and right),
and remove the center screw
while supporting the bottom
panel from underneath.
2
Let down the rear of the
bottom panel, push out
toward the front
(removed from the
hooking part) and
remove.
3
Remove the drain pan
retainer (2 screw).
