Si21-205A Outdoor Unit (25/35 class)
Removal Procedure 275
3.5 Removal of Compressor Noise Absorption Pad
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work
.
Step Procedure Points

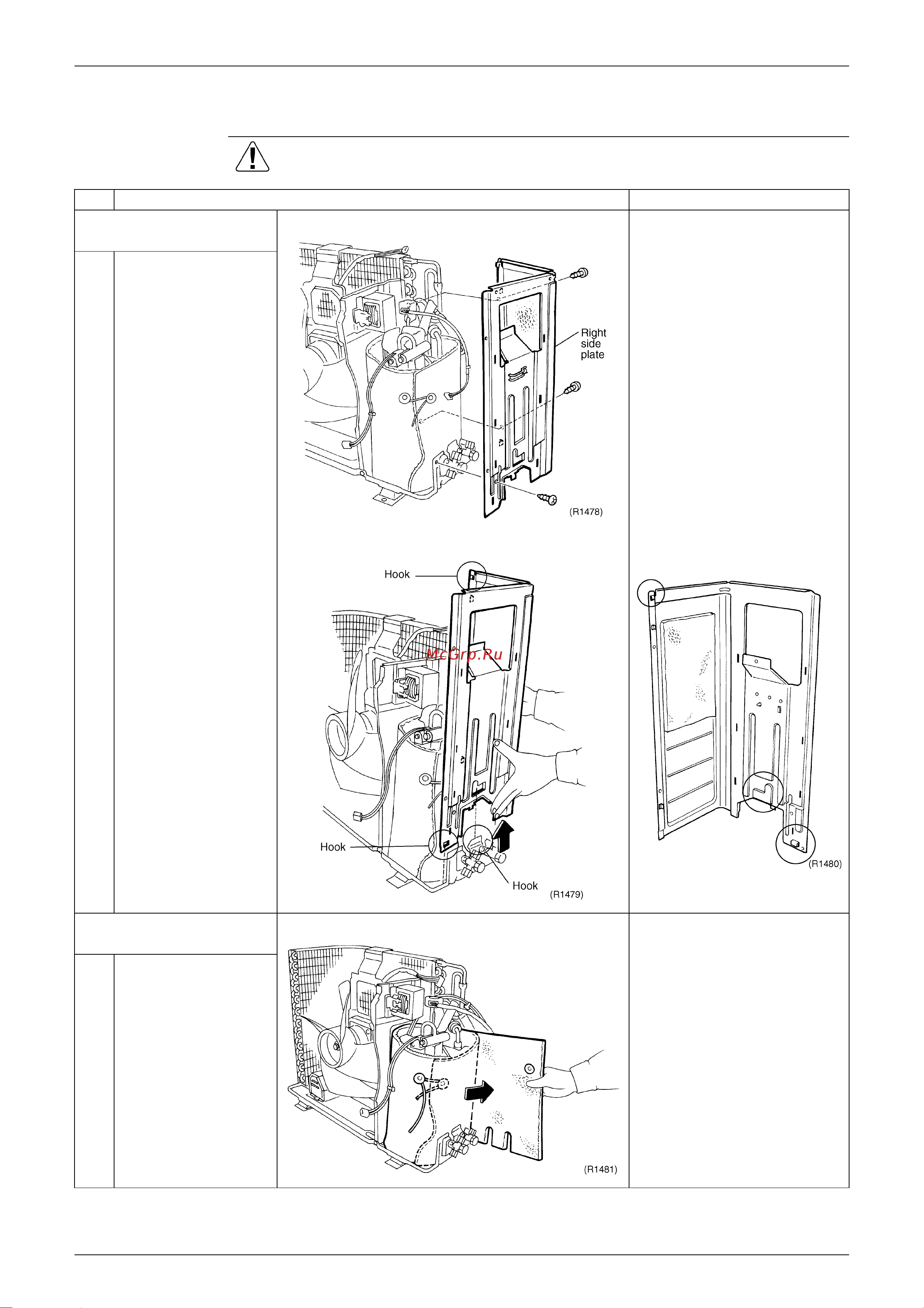

1. Remove the right side
plate.
1
Remove the three
screws for removing
the right side plate.
2
Lift the right side plate
to disengage the
hooks.
Insert the three hooks for the
restoration.
2. Remove the noise
absorber.
Since the slit prepared for
the piping connection on the
noise absorption pad is torn
easily, remove the pad
carefully.
When restoring, the noise
absorption pad should pass
the internal side of the
piping.
1
Untie the string fixing
the noise absorption
pad for the body to the
compressor.
