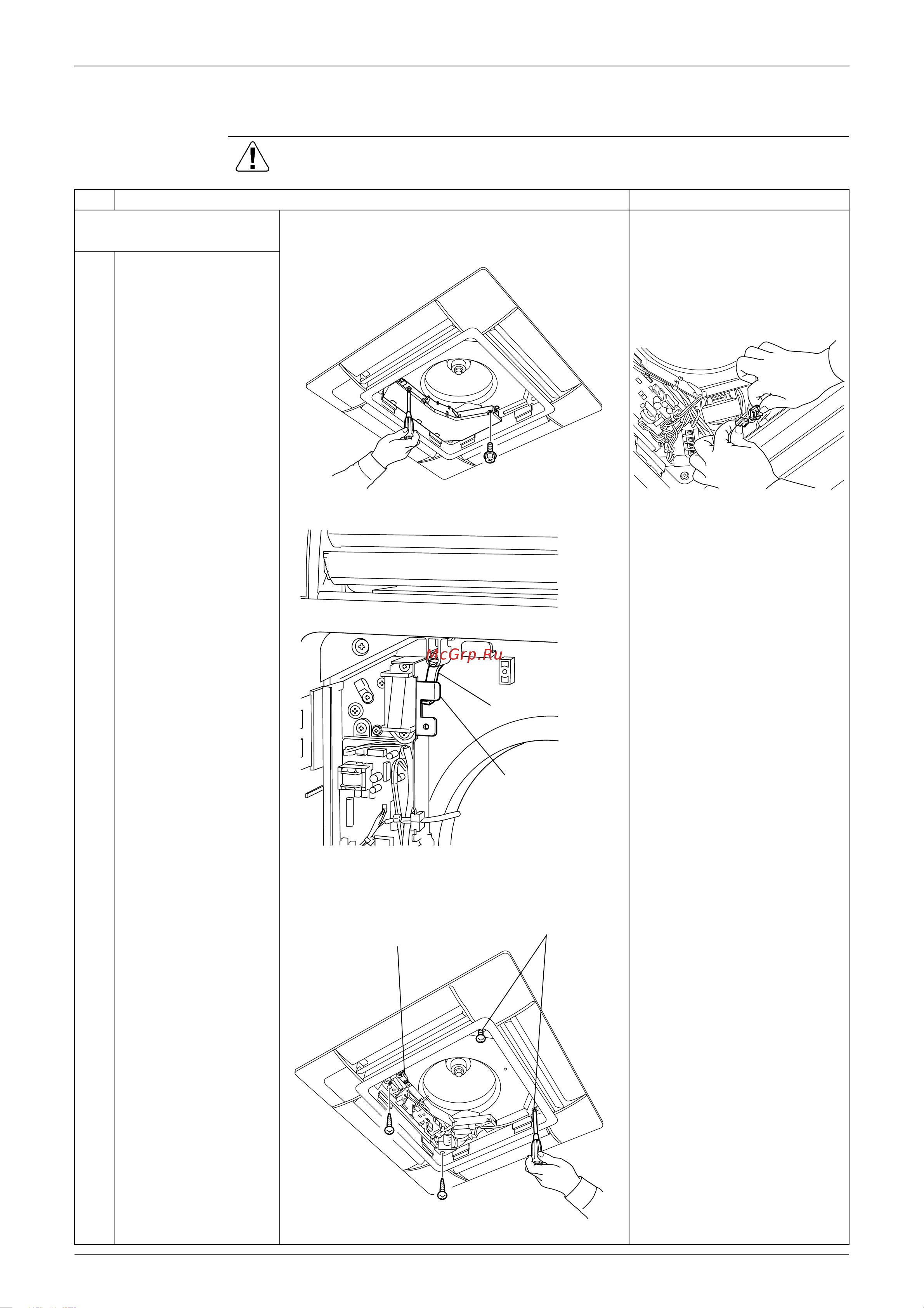

Daikin FHQ100BUV1B [243/340] Removal of decoration panel
![Daikin FHQ100BUV1B [243/340] Removal of decoration panel](/views2/1773521/page243/bgf3.png)
FFQ25/35/50/60BV1B Si21-205A
232 Removal Procedure
1.3 Removal of Decoration Panel
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1. Removing the decoration
panel
1
Remove the switch box
cover and disconnect
the connector of swing
motor from the harness
connector of electric
parts.
2
Check that the
provisional hanger is in
the position where it
can be engaged with
the hook of switch box.
3
The decoration panel is
attached with 4
mounting screws.
Remove the two fixing
screws at the switch
box side first.
4
Loosen the other two
screws by approx. 10
mm.
The decoration panel is
hung with these two
fixing screws and the
provisional hanger.
(S2636)
(S2637)
Provisional hanger
Hook of switch box
(S2638)
Provisional hanger
Loosen the two screws
by approx. 10 mm
(S2639)
