![Daikin FHQ100BUV1B [249/340] Removal of fan rotor and fan motor](/img/pdf.png)
Daikin FHQ100BUV1B [249/340] Removal of fan rotor and fan motor
![Daikin FHQ35BUV1B [249/340] Removal of fan rotor and fan motor](/views2/1773521/page249/bgf9.png)
FFQ25/35/50/60BV1B Si21-205A
238 Removal Procedure
(S2655)
Rotation
stopper
Resin nut
When tighten or loosen the fan
rotor fixing resin nut,
hold the base of the fan.
see detail below.
Caution

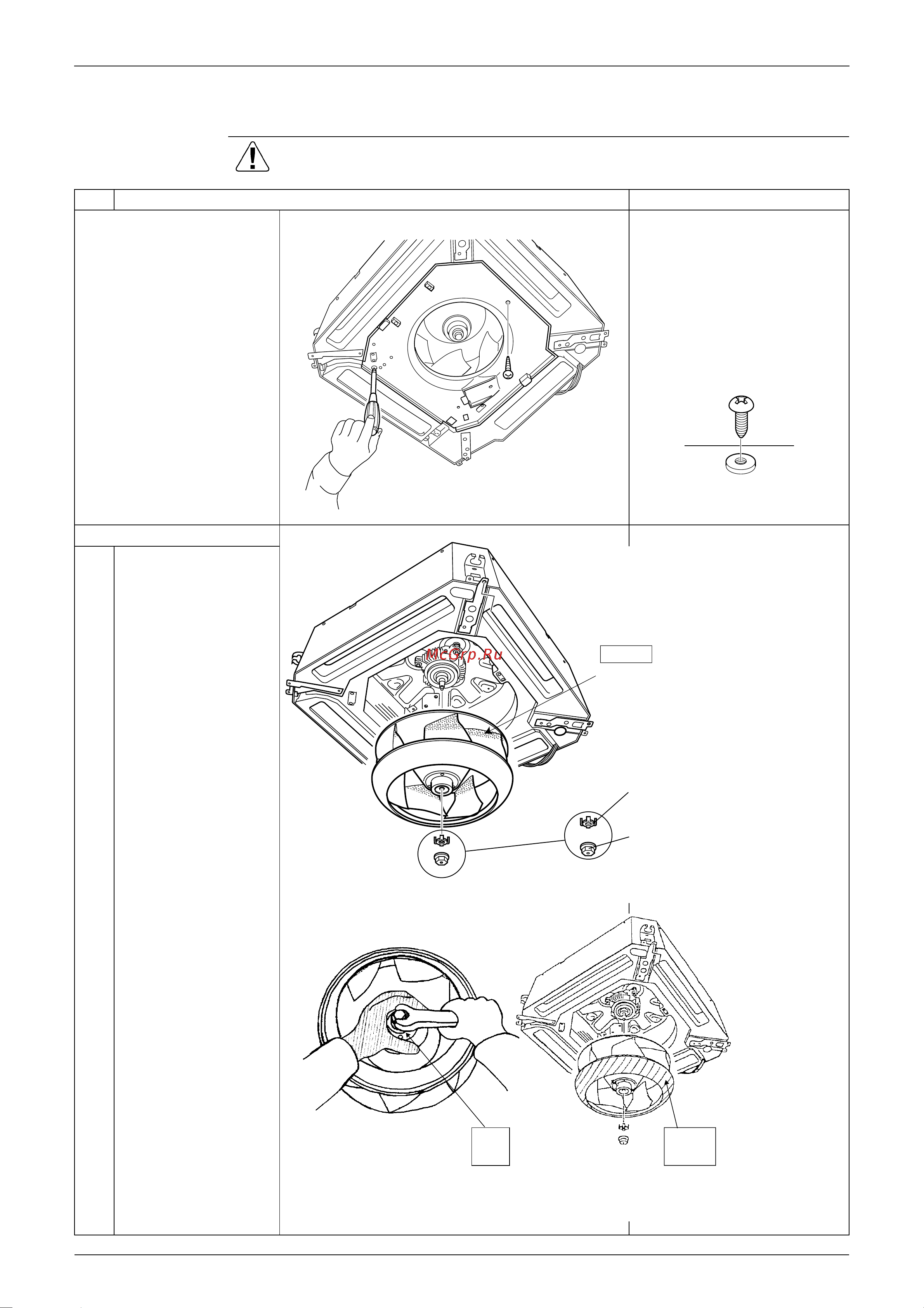

1.7 Removal of Fan Rotor and Fan Motor
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
Remove the switch box.
Remove the bell mouth
(Two screws)
A convex protrusion is
provided at the position of
bell mouth fixing screw to
prevent misjudgment with
switch box fixing position.
1. Removing the fan rotor
1
Remove the resin nut
and rotation stopper to
dismount the fan rotor.
For removal of switch box,
refer to the "1.6 Removal of
Switch Box" on page 237.
2
Remove the resin nut
with spanner.
3
Pull down the fan rotor
slowly.
4
Make sure to hold the
hub as shown in Fig.1
when tightening or
loosening the fan fixing
nut with a spanner.To
avoid deformation and
vibration of the fan, do
not apply excessive
torque to the shroud
(the slash part of Fig.2).
Note) There is no
problem to hold the
shroud when carrying
or lifting the fan.
(S2653)
(S2654)
Hub Shroud
Fig. 1 Fan fixing method Fig. 2 Do not apply excessive torque
to the area shown in slash
(
S2764
)
