Daikin FHQ100BUV1B [314/340] Lift the partition plate and remove it
![Daikin FHQ35BUV1B [314/340] Lift the partition plate and remove it](/views2/1773521/page314/bg13a.png)
Si21-205A Outdoor Unit (50/60 class)
Removal Procedure 303
3

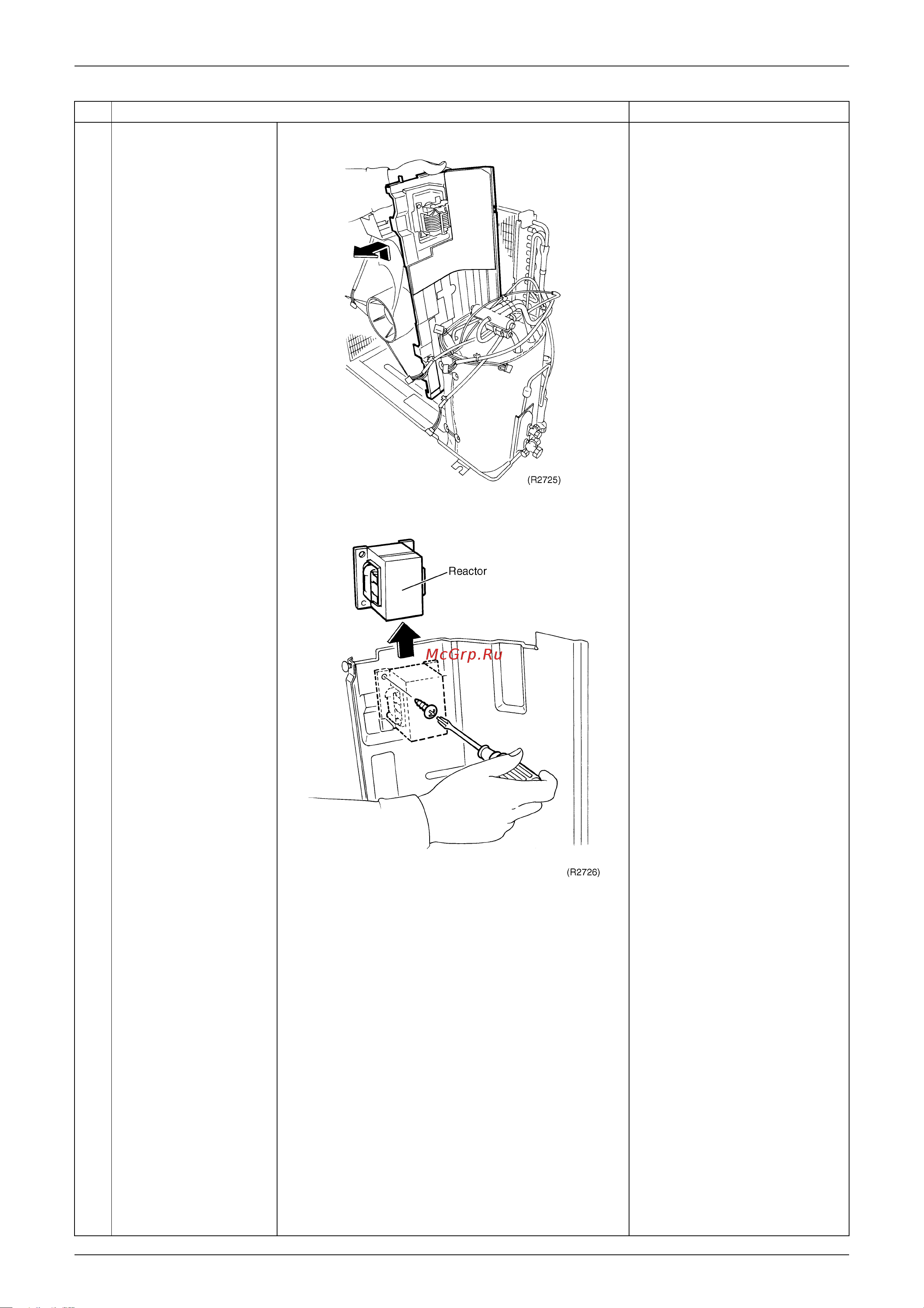

Lift the partition plate
and remove it.
4
Loosen the screw.
Slide the reactor and
remove it from the
partition plate.
Step
Procedure Points
